ZRE151R-DHMNKW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Feb 2009
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702-0909)1ZRFE

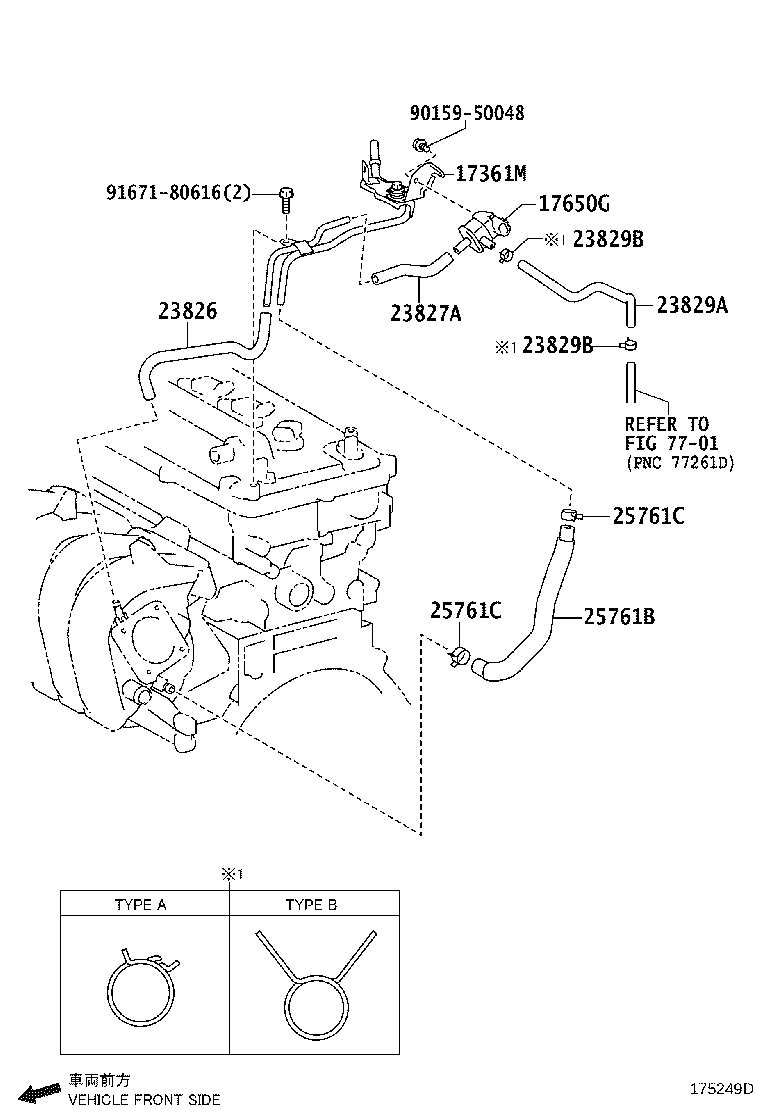

Click highlighted areas on diagram

diagram 17361M 17650G 23826 23827A 23829A 23829B 23829B 25761B 25761C 25761C 7701 9015950048 9167180616
Part # Description Qty Price
17361M - TUBE, AIR
17361-37010

1ZRFE..ZRE151

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12276

1ZRFE..ZRE151

MARK 90910-12276

 1
90910-TC001

1ZRFE..ZRE151

MARK 90910-TC001

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-37020

1ZRFE..ZRE151

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-37020

1ZRFE..ZRE151

 1
23829A - HOSE, FUEL VAPOR FEED
23826-0D090

1ZRFE..ZRE151

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

1ZRFE..ZRE151

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

1ZRFE..ZRE151

 2
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-37010

1ZRFE..ZRE151

 1
25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1)
96136-41801

1ZRFE..ZRE151

 2
25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1)
96136-41801

1ZRFE..ZRE151

 2
Common parts
90159-50048
91671-80616
Linked diagrams
7701
