ZRE151R-DHGNKW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Feb 2009
Engine 1ZRFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702- )RHD

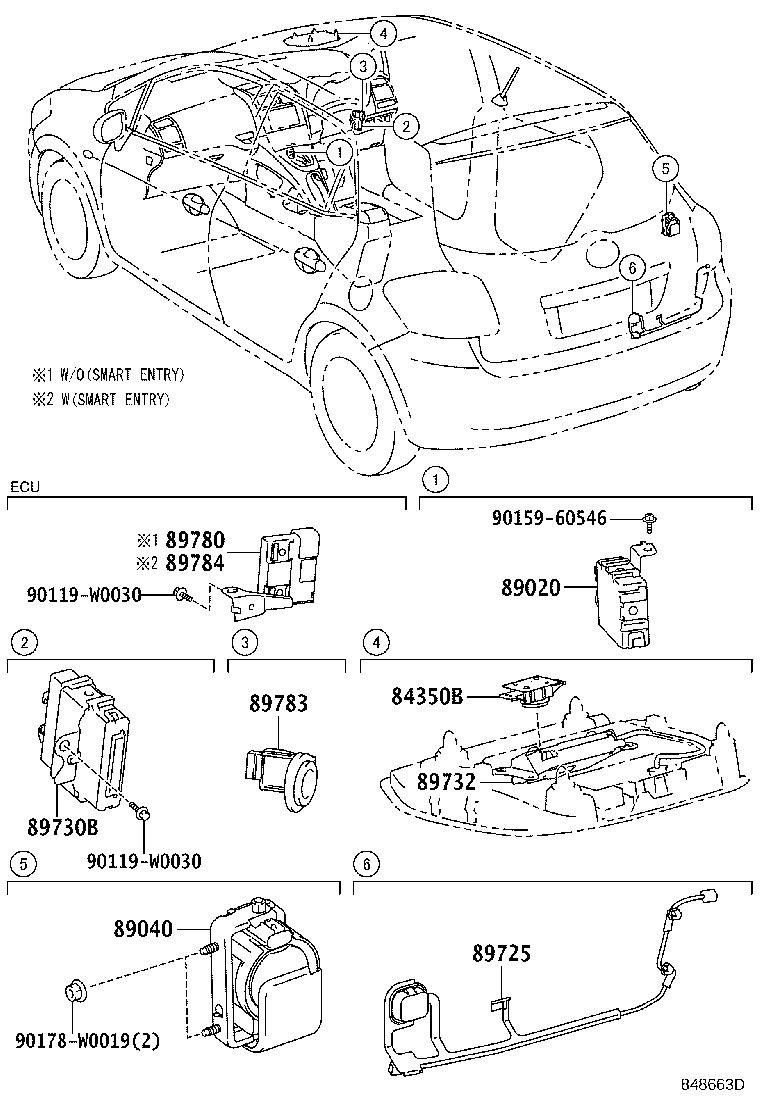

Click highlighted areas on diagram

diagram 84350B 89020 89040 89725 89730B 89732 89780 89783 89784 90119W0030 90119W0030 9015960546 90178W0019
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-02040

NDE150,ZRE151

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-02040

ADE15#,NDE150,ZRE151,ZZE150

 1
89783-02041

NDE150,ZRE151

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-02020

ZRE151..RHD

POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON

 1
89784-02020

ZRE151..RHD

POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON

 1
Common parts
90119-W0030
90159-60546
90178-W0019
