ZRE151R-DHGNKW (2007)
Toyota Auris/Hybrid (Ukp)

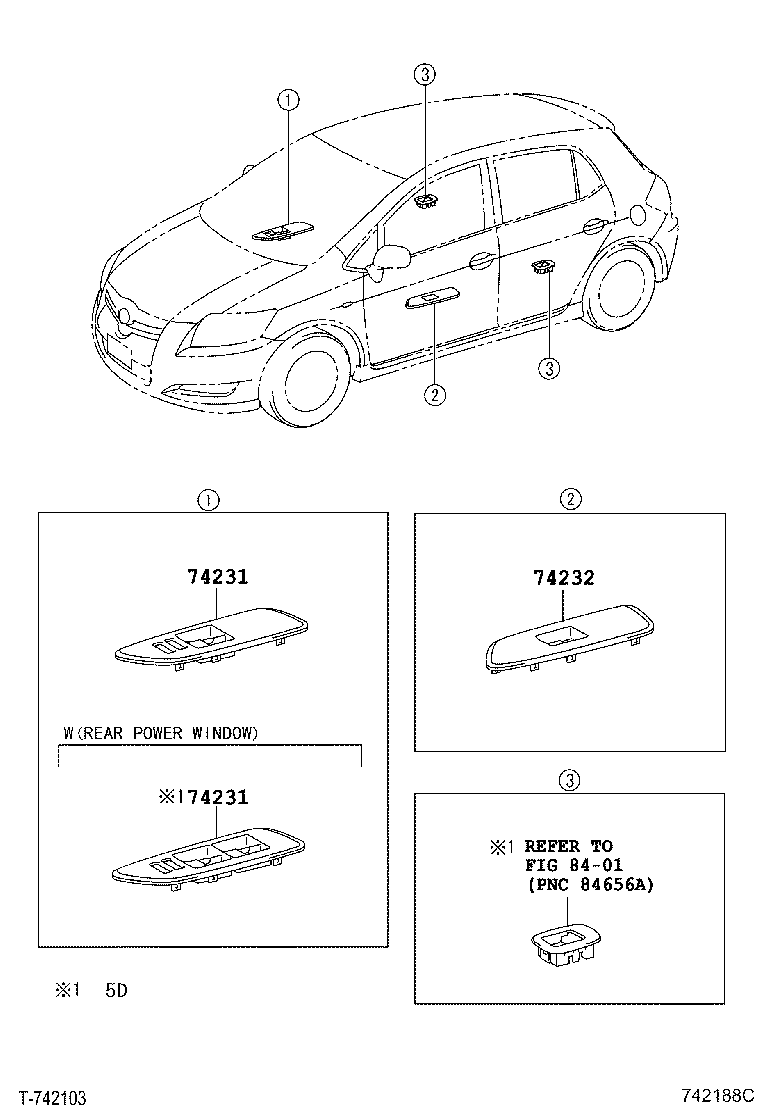

ILLUST NO. 1 OF 2(0702- )RHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02550E0 |
ZRE151..RHD..5D;NDE150..RHD..5D..5FS GREGE,TRIM4# |
1 | ||
| 74231-02550B0 |
NDE150,ZRE151..RHD..5D..SOL DK.GRAY,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02550E0 |
ZRE151..RHD..5D;NDE150..RHD..5D..5FS GREGE,TRIM4# |
1 | ||
| 74231-02550B0 |
NDE150,ZRE151..RHD..5D..SOL DK.GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-02560B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 74232-02560E0 |
ZRE151..RHD;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL GREGE,TRIM4# |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0702- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-02C80B0 |
NDE150,ZRE151..RHD LT.GRAY,TRIM1# |
1 | ||
| 74310-02C80E0 |
NDE150,ZRE151..RHD..SOL GREGE,TRIM4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-02650E1 |
NDE150,ZRE151..RHD..SOL GREGE,TRIM4# |
1 | ||
| 74320-02650B1 |
NDE150,ZRE151..RHD LT.GRAY,TRIM1# |
1 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-52010 |
NDE150,ZRE151 |
4 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
NDE150,ZRE151 LT.GRAY,TRIM1# |
2 | ||
| 74348-33040E0 |
NDE150,ZRE151..SOL GREGE,TRIM4# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52020B1 |
NDE150,ZRE151 LT.GRAY,TRIM1#,(J) |
4 | ||
| 74610-52020B1 |
ADE15#,NDE150,ZRE151 LT.GRAY,TRIM1# |
4 | ||
| 74610-52020E0 |
NDE150,ZRE151..SOL GREGE,TRIM4#,(J) |
4 | ||
| 74610-05140B0 |
NDE150,ZRE151 LT.GRAY,TRIM1#,(L) |
4 | ||
| 74610-05140E0 |
NDE150,ZRE151..SOL GREGE,TRIM4#,(L) |
4 | ||
| 74610-52020E0 |
ADE15#,NDE150,ZRE151..SOL GREGE,TRIM4# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080E0 |
NDE150,ZRE151..SOL GREGE,TRIM4#,(L) |
8 | ||
| 74612-52030B1 |
NDE150,ZRE151 LT.GRAY,TRIM1#,(J) |
8 | ||
| 74612-0D080B1 |
NDE150,ZRE151 LT.GRAY,TRIM1#,(L) |
8 | ||
| 74612-52030E0 |
NDE150,ZRE151..SOL GREGE,TRIM4#,(J) |
8 | ||
| 74645A - COVER, DOOR ASSIST GRIP, RH | ||||
| 74645-02020 |
NDE150,ZRE151..5D |
2 | ||
| 74646 - COVER, DOOR ASSIST GRIP, LH | ||||
| 74646-02020 |
NDE150,ZRE151..5D |
2 | ||
