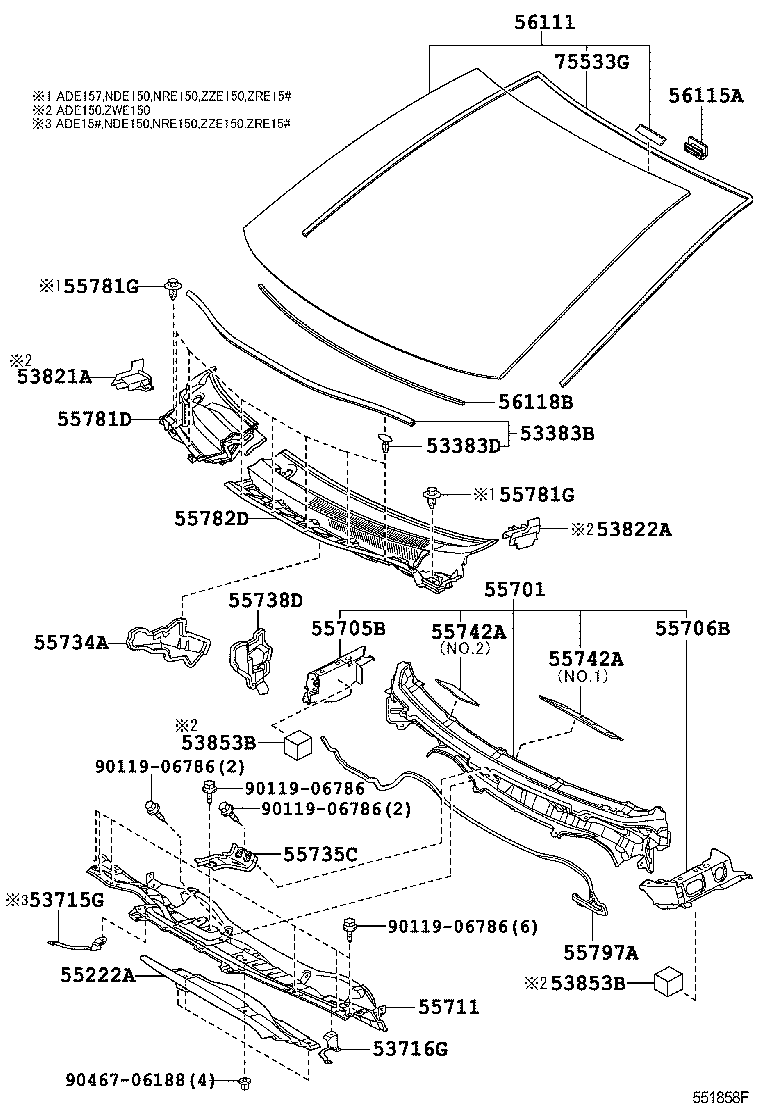

ZRE151R-DHGNKW (2007)
Toyota Auris/Hybrid (Ukp)
(0702- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-02100 |
NDE150,ZRE151 |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 67867-12150 |
NDE150,ZRE151 |
7 | ||
| 53715G - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-02011 |
NDE150,ZRE151 |
1 | ||
| 53716G - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-02011 |
NDE150,ZRE151 |
1 | ||
| 55222A - INSULATOR, DASH PANEL, OUTER CENTER | ||||
| 55224-02030 |
NDE150,ZRE151 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-02270 |
NDE150,ZRE151..RHD |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-02020 |
NDE150,ZRE151 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-02020 |
NDE150,ZRE151 |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-02180 |
NDE150,ZRE151..RHD |
1 | ||
| 55734A - PLATE, WATER GUARD, RH | ||||
| 55734-02020 |
NDE150,ZRE151..RHD |
1 | ||
| 55735C - REINFORCEMENT, COWL BODY MOUNTING, RH | ||||
| 55735-02010 |
NDE150,ZRE151..RHD |
1 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55738-02010 |
NDE150,ZRE151..RHD |
1 | ||
| 55742A - SHEET, COWL TOP INSULATOR | ||||
| 55742-02050 |
NDE150,ZRE151 NO.1:REFER ILLUST. |
1 | ||
| 55743-02070 |
NDE150,ZRE151 NO.2:REFER ILLUST. |
1 | ||
| 55742A - SHEET, COWL TOP INSULATOR | ||||
| 55742-02050 |
NDE150,ZRE151 NO.1:REFER ILLUST. |
1 | ||
| 55743-02070 |
NDE150,ZRE151 NO.2:REFER ILLUST. |
1 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55708-02310 |
ADE15#,NDE150,ZRE151,ZZE150..RHD *154 |
1 | ||
| 55708-02340 |
ADE15#,NDE150,ZRE151,ZZE150..RHD *153 |
1 | ||
| 55708-02311 |
NDE150,ZRE151..RHD *154 |
1 | ||
| 55708-02341 |
NDE150,ZRE151..RHD *153 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07076C0 |
NDE150,ZRE151 BLACK |
2 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07076C0 |
NDE150,ZRE151 BLACK |
2 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55709-02240 |
ADE15#,NDE150,ZRE151,ZZE150..RHD *153 |
1 | ||
| 55709-02220 |
ADE15#,NDE150,ZRE151,ZZE150..RHD *154 |
1 | ||
| 55709-02221 |
NDE150,ZRE151..RHD *154 |
1 | ||
| 55709-02241 |
NDE150,ZRE151..RHD *153 |
1 | ||
| 55797A - SEAL, COWL WATER EXTRACT | ||||
| 55797-02010 |
NDE150,ZRE151 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-02280 |
NDE150,ZRE151..RHD *LAM,T=4.56,GREEN |
1 | ||
| 56101-02300 |
ADE15#,NDE150,ZRE151..RHD..SOL *LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30120 |
NDE150,ZRE151 |
1 | ||
| 56118B - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 56117-12290 |
NDE150,ZRE151 L=1089 |
1 | ||
| 56117-12290 |
NDE150,ZRE151..SOL L=1089,INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-12630 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| 90467-06188 | ||||
