ZRE151R-DHGNKW (2007)
Toyota Auris/Hybrid (Ukp)

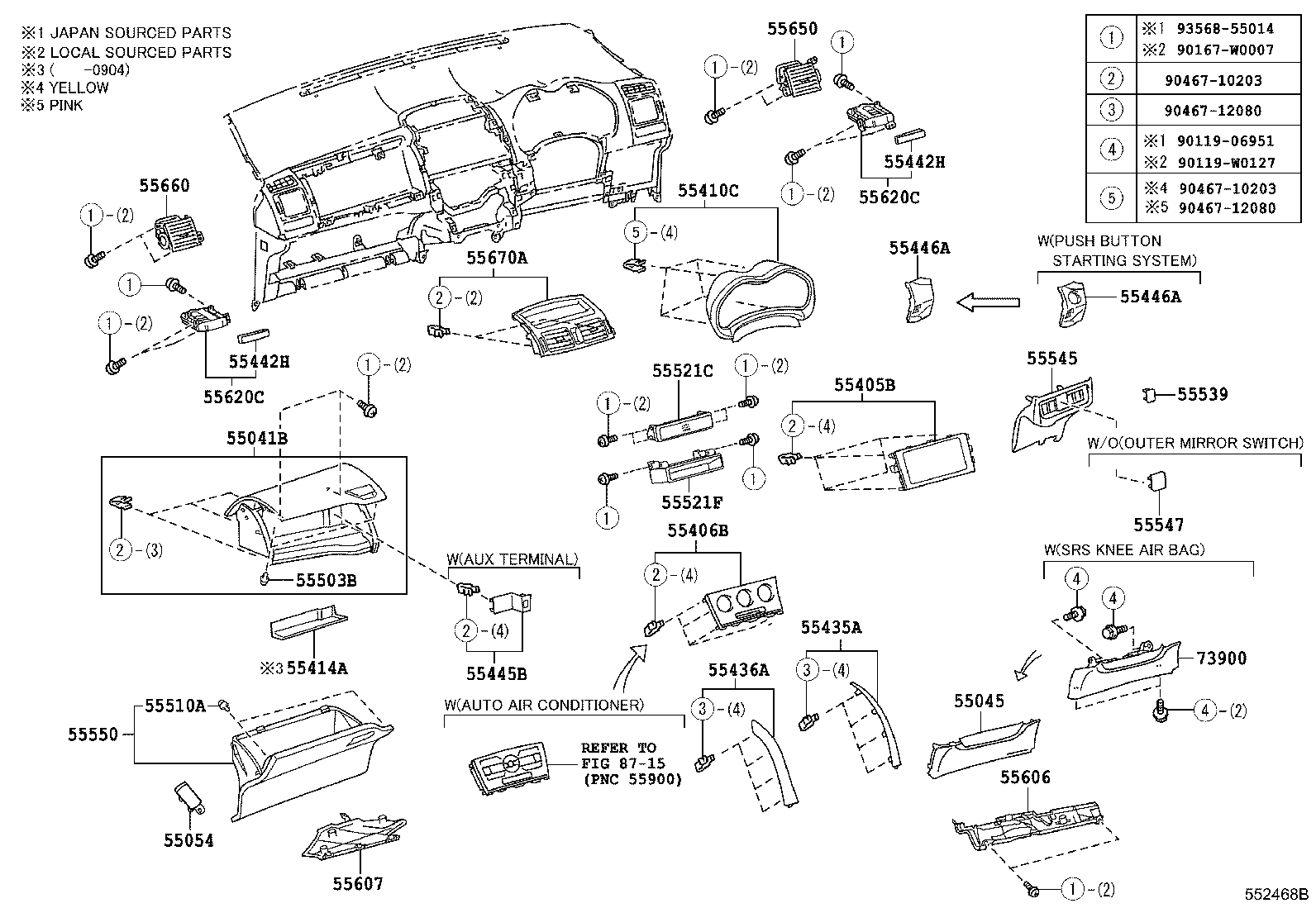

ILLUST NO. 2 OF 2(0702- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-02020E0 |
NDE150,ZRE151..RHD..SOL GREGE,TRIM4# |
1 | ||
| 55041-02020B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02170B0 |
ZRE151..RHD;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-35010 |
NDE150,ZRE151 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02140 |
NDE150,ZRE151..SOL AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER,*154 |
1 | ||
| 55405-02100 |
NDE150,ZRE151..SOL AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER,*153 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02160 |
NDE150..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..SOL..(DCR,DCRL,HTWC) AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55406-02160 |
ZRE151..RHD..5D;ZZE150..5D..SOL INSTRUMENT PANEL CENTER CLUSTER-SILVER PAINT,W(VENT)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55406-02160 |
NDE150..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..SOL..(DCR,DCRL,HTWC) |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02040E0 |
ZRE151..RHD;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL GREGE,TRIM4# |
1 | ||
| 55410-02040B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-02060 |
NDE150,ZRE151..RHD |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-02060 |
NDE150,ZRE151 *153 |
1 | ||
| 55435-02130 |
NDE150,ZRE151 *154 |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-02090 |
NDE150,ZRE151 *154 |
1 | ||
| 55436-02020 |
NDE150,ZRE151 *153 |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-02330B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1#,RH |
1 | ||
| 55442-02350E0 |
NDE150,ZRE151..RHD..SOL GREGE,TRIM4#,LH |
1 | ||
| 55442-02330E0 |
NDE150,ZRE151..RHD..SOL GREGE,TRIM4#,RH |
1 | ||
| 55442-02350B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1#,LH |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-02330B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1#,RH |
1 | ||
| 55442-02350E0 |
NDE150,ZRE151..RHD..SOL GREGE,TRIM4#,LH |
1 | ||
| 55442-02330E0 |
NDE150,ZRE151..RHD..SOL GREGE,TRIM4#,RH |
1 | ||
| 55442-02350B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1#,LH |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02030E0 |
ZRE151..RHD STARTING SYSTEM-PUSH BUTTON,GREGE,TRIM41 |
1 | ||
| 55446-02040E0 |
ZRE151..RHD;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL GREGE,TRIM41 |
1 | ||
| 55446-02040B0 |
NDE150,ZRE151..RHD..SOL DK.GRAY,TRIM1#,41 |
1 | ||
| 55446-02030B0 |
ZRE151..RHD STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM1#,41 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02030E0 |
ZRE151..RHD STARTING SYSTEM-PUSH BUTTON,GREGE,TRIM41 |
1 | ||
| 55446-02040E0 |
ZRE151..RHD;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL GREGE,TRIM41 |
1 | ||
| 55446-02040B0 |
NDE150,ZRE151..RHD..SOL DK.GRAY,TRIM1#,41 |
1 | ||
| 55446-02030B0 |
ZRE151..RHD STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM1#,41 |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
NDE150,ZRE151 |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
NDE150,ZRE151 |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-02090 |
NDE150,ZRE151..SOL AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER,*153 |
1 | ||
| 55521-02100 |
NDE150,ZRE151..SOL AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER,*154 |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-02080 |
NDE150,ZRE151..SOL AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER,*154 |
1 | ||
| 55521-02070 |
NDE150,ZRE151..SOL AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER,*153 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02100B0 |
ZRE151..5D..SOL;ZRE151..LHD..3D..SOL HEADLAMP-DISCHARGE,DK.GRAY,TRIM1# |
1 | ||
| 55539-02100B0 |
NDE150,ZRE151 DK.GRAY,TRIM1# |
1 | ||
| 55539-02100E0 |
ZRE151..5D..SOL;ZRE151..LHD..3D..SOL HEADLAMP-DISCHARGE,GREGE,TRIM4# |
1 | ||
| 55539-02100E0 |
NDE150,ZRE151..SOL VSC-WITH(W/CUT OFF SWITCH),GREGE,TRIM4# |
1 | ||
| 55539-02100E0 |
NDE150,ZRE151..SOL GREGE,TRIM4# |
1 | ||
| 55539-02100B0 |
NDE150,ZRE151 VSC-WITH(W/CUT OFF SWITCH),DK.GRAY,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-02020B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55545-02020E0 |
ZRE151..RHD;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL GREGE,TRIM4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02150E0 |
NDE150,ZRE151..RHD..SOL GREGE,TRIM4# |
1 | ||
| 55550-02150B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02050 |
NDE150,ZRE151..RHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02070 |
NDE150,ZRE151..RHD |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-02100E0 |
ZRE151..RHD;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL GREGE,TRIM4#,RH |
1 | ||
| 55620-02120B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1#,LH |
1 | ||
| 55620-02100B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1#,RH |
1 | ||
| 55620-02120E0 |
NDE150,ZRE151..RHD..SOL GREGE,TRIM4#,LH |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-02100E0 |
ZRE151..RHD;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL GREGE,TRIM4#,RH |
1 | ||
| 55620-02120B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1#,LH |
1 | ||
| 55620-02100B0 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1#,RH |
1 | ||
| 55620-02120E0 |
NDE150,ZRE151..RHD..SOL GREGE,TRIM4#,LH |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02100E0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL GREGE,TRIM4# |
1 | ||
| 55650-02100B0 |
NDE150,ZRE151 DK.GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02050B0 |
NDE150,ZRE151 DK.GRAY,TRIM1# |
1 | ||
| 55660-02050E0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL GREGE,TRIM4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02110 |
NDE150,ZRE151..SOL AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55670-02130 |
NDE150,ZRE151..SOL |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02020B0 |
ZRE151..RHD;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||

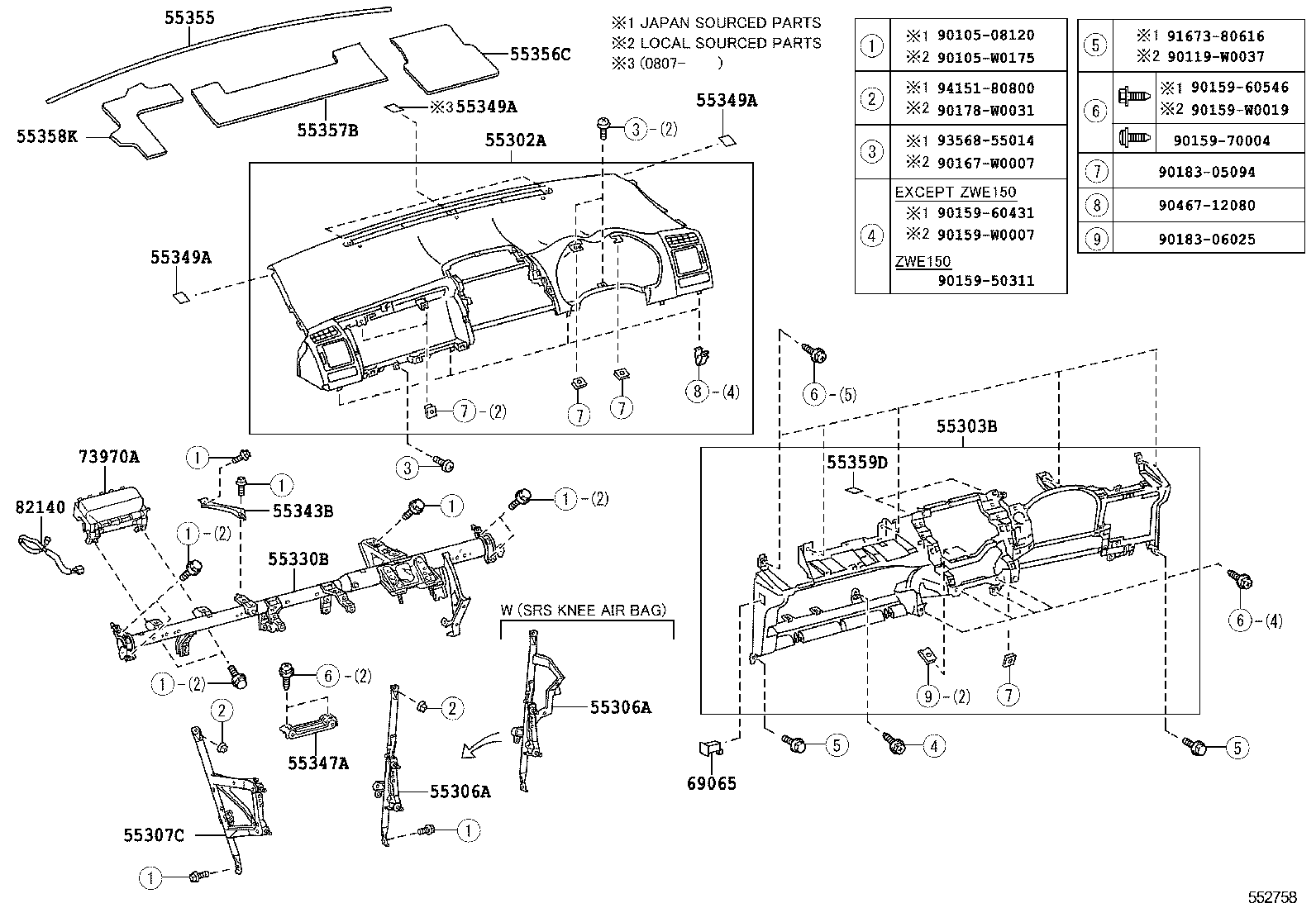

ILLUST NO. 1 OF 2(0702- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-02140E1 |
NDE150,ZRE151..RHD..SOL GREGE,TRIM4# |
1 | ||
| 55302-02140B1 |
NDE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02200B0 |
ZRE151..RHD;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02231 |
NDE150,ZRE151..RHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 55307-02080 |
ADE15#,NDE150,ZRE151,ZZE150 |
1 | ||
| 55306-02230 |
ADE15#,NDE150,ZRE151,ZZE150..RHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 55307-02081 |
NDE150,ZRE151 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02231 |
NDE150,ZRE151..RHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 55307-02080 |
ADE15#,NDE150,ZRE151,ZZE150 |
1 | ||
| 55306-02230 |
ADE15#,NDE150,ZRE151,ZZE150..RHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 55307-02081 |
NDE150,ZRE151 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02090 |
ADE15#,NDE150,ZRE151,ZZE150 |
1 | ||
| 55307-02091 |
NDE150,ZRE151 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02370 |
NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC) |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02060 |
NDE150,ZRE151 |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55349-02101 |
NDE150,ZRE151 |
1 | ||
| 55349-02100 |
ADE15#,NDE150,ZRE151,ZZE150 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55359-12110 |
ADE15#,NDE150,ZRE151,ZZE150 |
2 | ||
| 55359-12110 |
NDE150,ZRE151 |
5 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55359-12110 |
ADE15#,NDE150,ZRE151,ZZE150 |
2 | ||
| 55359-12110 |
NDE150,ZRE151 |
5 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55359-12110 |
ADE15#,NDE150,ZRE151,ZZE150 |
2 | ||
| 55359-12110 |
NDE150,ZRE151 |
5 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02120 |
NDE150,ZRE151..RHD |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02070 |
NDE150,ZRE151 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-02050 |
NDE150,ZRE151 |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02030 |
NDE150,ZRE151 |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-12090 |
NDE150,ZRE151 |
2 | ||
| 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||||
| 69065-12400 |
NDE150,ZRE151 |
1 | ||
| 69065-53010 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-02060 |
NDE150,ZRE151 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-02110 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-W0175 | ||||
| 90119-W0037 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90159-60546 | ||||
| 90159-70004 | ||||
| 90159-W0007 | ||||
| 90159-W0019 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90183-05094 | ||||
| 90183-06025 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
