Toyota Auris/hybrid (ukp) ZRE151 BRAKE TUBE & CLAMP

ZRE151R-DHGNKW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Feb 2009

Engine 1ZRFE

Transmission 5FS MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150

Click highlighted areas on diagram

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-02150	NDE150,ZRE151	02/2007 - 02/2009	1
44050-02160	NDE150,ZRE151 VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-02030	NDE150,ZRE151 NO.1	02/2007 - 02/2009	2
44547-12010	NDE150,ZRE151 NO.2	02/2007 - 02/2009	1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-02030	NDE150,ZRE151 NO.1	02/2007 - 02/2009	2
44547-12010	NDE150,ZRE151 NO.2	02/2007 - 02/2009	1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-02120	NDE150,ZRE151	02/2007 - 02/2009	1
44590-02130	NDE150,ZRE151 VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
Common parts
44521-12060
44521-12070
90119-06844
90178-06019
90179-08200
90179-08249

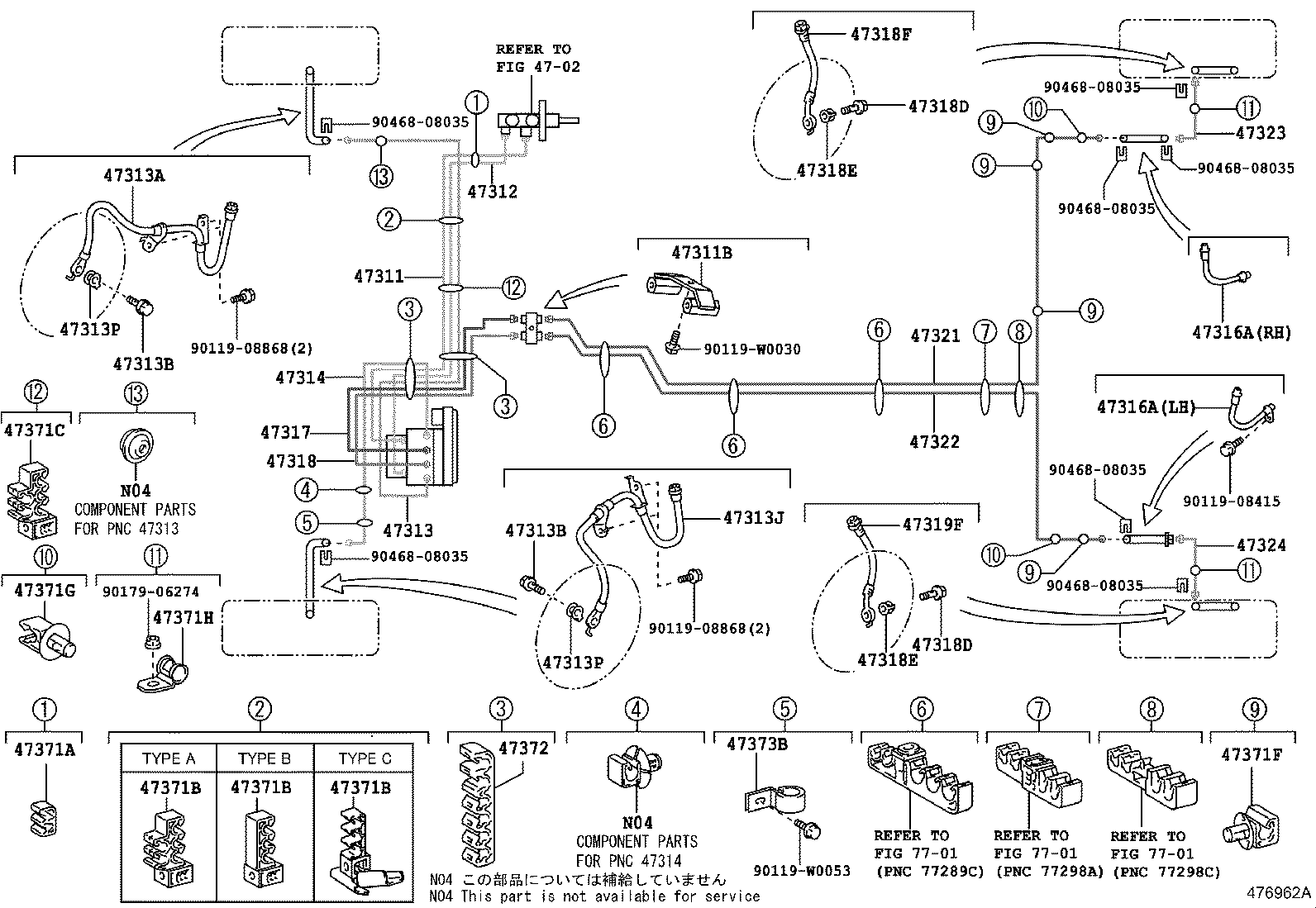

ILLUST NO. 1 OF 2(0702- )NRE150,ZRE15#,ZZE150..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-02410	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47311-02400	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10255	NDE150,ZRE151	02/2007 - 02/2009	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02270	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
47312-02280	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02350	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
47313-02360	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-W2012	NDE150,ZRE151	02/2007 - 02/2009	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	NDE150,ZRE151	02/2007 - 02/2009	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	NDE150,ZRE151	02/2007 - 02/2009	2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-W2013	NDE150,ZRE151	02/2007 - 02/2009	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	NDE150,ZRE151	02/2007 - 02/2009	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	NDE150,ZRE151	02/2007 - 02/2009	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-02370	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
47314-02410	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-W2015	NDE150,ZRE151 RH	02/2007 - 02/2009	1
90947-W2014	NDE150,ZRE151 LH	02/2007 - 02/2009	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-W2015	NDE150,ZRE151 RH	02/2007 - 02/2009	1
90947-W2014	NDE150,ZRE151 LH	02/2007 - 02/2009	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-02270	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
47317-02280	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02290	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
47318-02300	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	NDE150,ZRE151	02/2007 - 02/2009	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	NDE150,ZRE151	02/2007 - 02/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	NDE150,ZRE151	02/2007 - 02/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	NDE150,ZRE151	02/2007 - 02/2009	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-W2016	NDE150,ZRE151	02/2007 - 02/2009	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-W2016	NDE150,ZRE151	02/2007 - 02/2009	1
47321 - TUBE, REAR BRAKE, NO.1
47321-02170	NDE150,ZRE151	02/2007 - 02/2009	1
47322 - TUBE, REAR BRAKE, NO.2
47322-02170	NDE150,ZRE151	02/2007 - 02/2009	1
47323 - TUBE, REAR BRAKE, NO.3
47323-02080	NDE150,ZRE151	02/2007 - 02/2009	1
47324 - TUBE, REAR BRAKE, NO.4
47324-02080	NDE150,ZRE151	02/2007 - 02/2009	1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868	NDE150,ZRE151	02/2007 - 02/2009	1
90464-00884	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D05	ADE150,NDE150,ZRE151,ZZE150..RHD TYPE A:REFER ILLUST.	02/2007 - 10/2008	1
90949-01D42	ADE150,NDE150,ZRE151,ZZE150..RHD VSC-WITH(W/CUT OFF SWITCH),TYPE A:REFER ILLUST.	02/2007 - 10/2008	1
90949-01D69	NDE150,ZRE151..RHD TYPE A:REFER ILLUST.	10/2008 - 02/2009	1
90949-01D70	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH),TYPE B:REFER ILLUST.	10/2008 - 02/2009	1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D05	ADE150,NDE150,ZRE151,ZZE150..RHD TYPE A:REFER ILLUST.	02/2007 - 10/2008	1
90949-01D42	ADE150,NDE150,ZRE151,ZZE150..RHD VSC-WITH(W/CUT OFF SWITCH),TYPE A:REFER ILLUST.	02/2007 - 10/2008	1
90949-01D69	NDE150,ZRE151..RHD TYPE A:REFER ILLUST.	10/2008 - 02/2009	1
90949-01D70	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH),TYPE B:REFER ILLUST.	10/2008 - 02/2009	1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D05	ADE150,NDE150,ZRE151,ZZE150..RHD TYPE A:REFER ILLUST.	02/2007 - 10/2008	1
90949-01D42	ADE150,NDE150,ZRE151,ZZE150..RHD VSC-WITH(W/CUT OFF SWITCH),TYPE A:REFER ILLUST.	02/2007 - 10/2008	1
90949-01D69	NDE150,ZRE151..RHD TYPE A:REFER ILLUST.	10/2008 - 02/2009	1
90949-01D70	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH),TYPE B:REFER ILLUST.	10/2008 - 02/2009	1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01D45	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
90949-01D42	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D17	NDE150,ZRE151	02/2007 - 02/2009	4
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01D29	NDE150,ZRE151	02/2007 - 02/2009	2
47371H - CLAMP, BRAKE TUBE, NO.12
90461-10837	NDE150,ZRE151	02/2007 - 02/2009	2
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00890	NDE150,ZRE151..RHD	02/2007 - 02/2009	2
90464-00895	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	2
47373B - CLAMP, BRAKE TUBE, NO.3
90461-10781	NDE150,ZRE151	02/2007 - 02/2009	1
Common parts
90119-08415
90119-08868
90119-W0030
90119-W0053
90179-06274
90468-08035
Linked diagrams
4702
7701

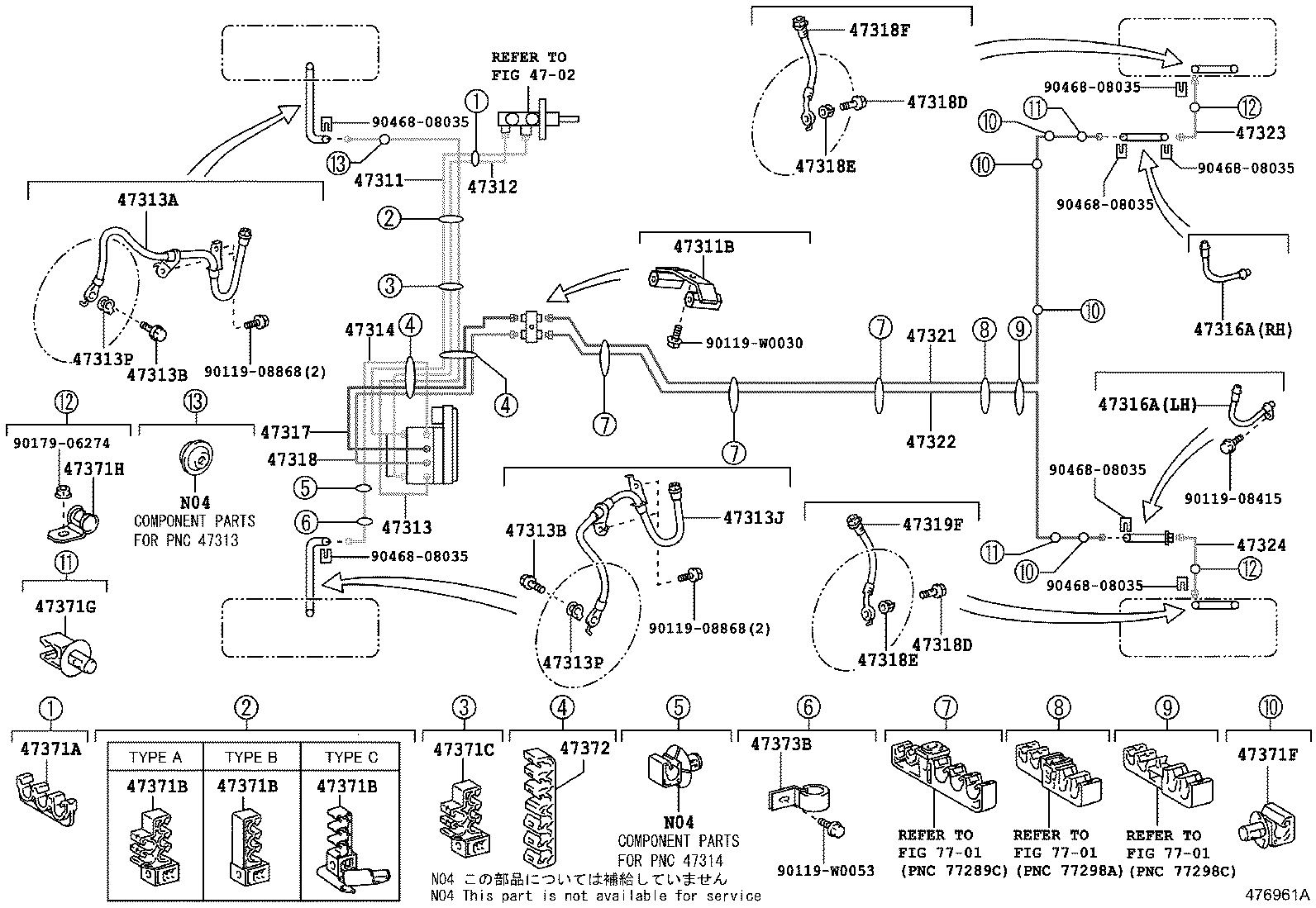

ILLUST NO. 1 OF 2(0702- )NRE150,ZRE15#,ZZE150..RHD

Click highlighted areas on diagram

W(VSC)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-02410	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47311-02400	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10255	NDE150,ZRE151	02/2007 - 02/2009	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02270	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
47312-02280	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02350	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
47313-02360	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-W2012	NDE150,ZRE151	02/2007 - 02/2009	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	NDE150,ZRE151	02/2007 - 02/2009	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	NDE150,ZRE151	02/2007 - 02/2009	2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-W2013	NDE150,ZRE151	02/2007 - 02/2009	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	NDE150,ZRE151	02/2007 - 02/2009	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	NDE150,ZRE151	02/2007 - 02/2009	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-02370	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
47314-02410	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-W2015	NDE150,ZRE151 RH	02/2007 - 02/2009	1
90947-W2014	NDE150,ZRE151 LH	02/2007 - 02/2009	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-W2015	NDE150,ZRE151 RH	02/2007 - 02/2009	1
90947-W2014	NDE150,ZRE151 LH	02/2007 - 02/2009	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-02270	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
47317-02280	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02290	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
47318-02300	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	NDE150,ZRE151	02/2007 - 02/2009	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	NDE150,ZRE151	02/2007 - 02/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	NDE150,ZRE151	02/2007 - 02/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	NDE150,ZRE151	02/2007 - 02/2009	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-W2016	NDE150,ZRE151	02/2007 - 02/2009	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-W2016	NDE150,ZRE151	02/2007 - 02/2009	1
47321 - TUBE, REAR BRAKE, NO.1
47321-02170	NDE150,ZRE151	02/2007 - 02/2009	1
47322 - TUBE, REAR BRAKE, NO.2
47322-02170	NDE150,ZRE151	02/2007 - 02/2009	1
47323 - TUBE, REAR BRAKE, NO.3
47323-02080	NDE150,ZRE151	02/2007 - 02/2009	1
47324 - TUBE, REAR BRAKE, NO.4
47324-02080	NDE150,ZRE151	02/2007 - 02/2009	1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868	NDE150,ZRE151	02/2007 - 02/2009	1
90464-00884	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D05	ADE150,NDE150,ZRE151,ZZE150..RHD TYPE A:REFER ILLUST.	02/2007 - 10/2008	1
90949-01D42	ADE150,NDE150,ZRE151,ZZE150..RHD VSC-WITH(W/CUT OFF SWITCH),TYPE A:REFER ILLUST.	02/2007 - 10/2008	1
90949-01D69	NDE150,ZRE151..RHD TYPE A:REFER ILLUST.	10/2008 - 02/2009	1
90949-01D70	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH),TYPE B:REFER ILLUST.	10/2008 - 02/2009	1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D05	ADE150,NDE150,ZRE151,ZZE150..RHD TYPE A:REFER ILLUST.	02/2007 - 10/2008	1
90949-01D42	ADE150,NDE150,ZRE151,ZZE150..RHD VSC-WITH(W/CUT OFF SWITCH),TYPE A:REFER ILLUST.	02/2007 - 10/2008	1
90949-01D69	NDE150,ZRE151..RHD TYPE A:REFER ILLUST.	10/2008 - 02/2009	1
90949-01D70	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH),TYPE B:REFER ILLUST.	10/2008 - 02/2009	1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D05	ADE150,NDE150,ZRE151,ZZE150..RHD TYPE A:REFER ILLUST.	02/2007 - 10/2008	1
90949-01D42	ADE150,NDE150,ZRE151,ZZE150..RHD VSC-WITH(W/CUT OFF SWITCH),TYPE A:REFER ILLUST.	02/2007 - 10/2008	1
90949-01D69	NDE150,ZRE151..RHD TYPE A:REFER ILLUST.	10/2008 - 02/2009	1
90949-01D70	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH),TYPE B:REFER ILLUST.	10/2008 - 02/2009	1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01D45	NDE150,ZRE151..RHD	02/2007 - 02/2009	1
90949-01D42	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D17	NDE150,ZRE151	02/2007 - 02/2009	4
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01D29	NDE150,ZRE151	02/2007 - 02/2009	2
47371H - CLAMP, BRAKE TUBE, NO.12
90461-10837	NDE150,ZRE151	02/2007 - 02/2009	2
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00890	NDE150,ZRE151..RHD	02/2007 - 02/2009	2
90464-00895	NDE150,ZRE151..RHD VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 02/2009	2
47373B - CLAMP, BRAKE TUBE, NO.3
90461-10781	NDE150,ZRE151	02/2007 - 02/2009	1
Common parts
90119-08415
90119-08868
90119-W0030
90119-W0053
90179-06274
90468-08035
Linked diagrams
4702
7701
