ZRE151R-DHGNKW (2007)
Toyota Auris/Hybrid (Ukp)
(0702-0912)NDE150..5FS..TERRA ; (0702-0912)ZRE151..3D..5FS..TERRA ; (0702-0912)ZRE1

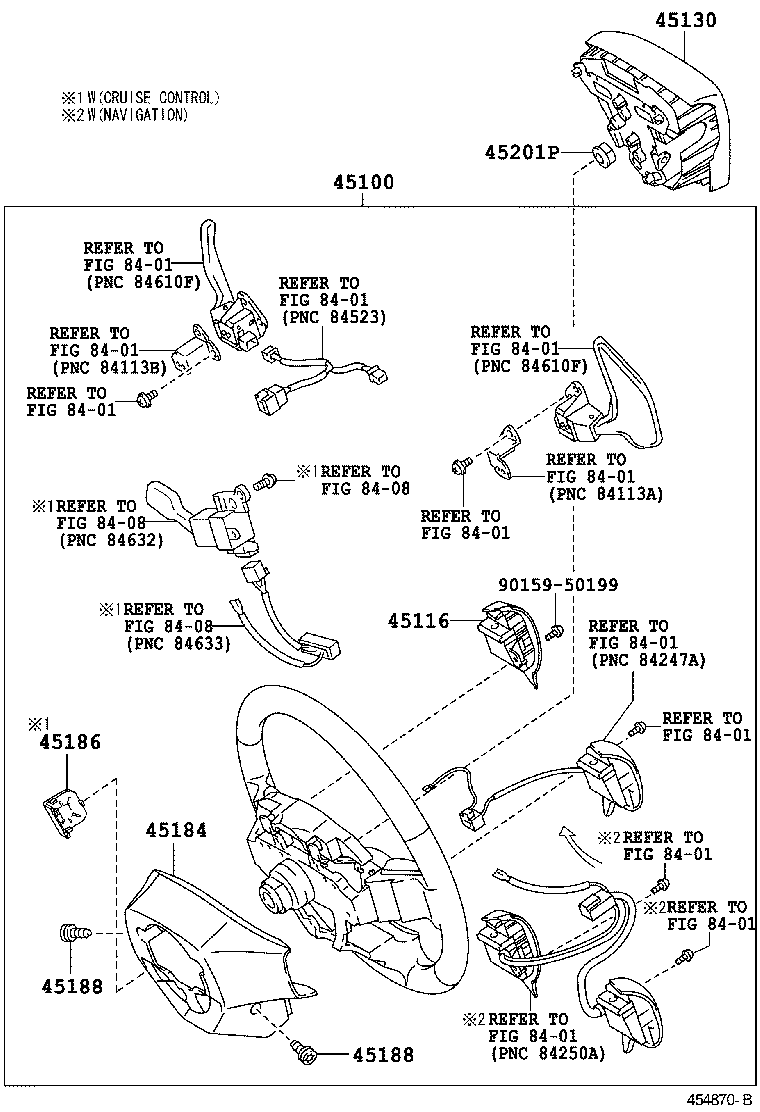

3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
(0702-0912)NDE150,ZRE151..3D..5F..SOL ; (0702-0912)NDE150..5D..5F,6F..SOL..DCR ; (0
3-SPOKE,W(STEERING SWITCH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-02010 |
NDE150,ZRE151..SOL |
1 | ||
| 45116-02010 |
NDE150,ZRE151..SOL |
1 | ||
| 45116-02010 |
NDE150,ZRE151..SOL |
1 | ||
| 45116-02010 |
NDE150,ZRE151..SOL |
1 | ||
| 45116-02010 |
NDE150,ZRE151..SOL |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||
(0702-0912)NDE150..LHD..5D..6F..E,SOL..DCRL ; (0702-0912)ADE157,NRE150,ZRE15#..5D..
3-SPOKE,W(STEERING SWITCH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-02010 |
NDE150,ZRE151..SOL |
1 | ||
| 45116-02010 |
NDE150,ZRE151..SOL |
1 | ||
| 45116-02010 |
NDE150,ZRE151..SOL |
1 | ||
| 45116-02010 |
NDE150,ZRE151..SOL |
1 | ||
| 45116-02010 |
NDE150,ZRE151..SOL |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||
(0702-0912)NDE150..5FS..SOL ; (0702-0912)NDE150..5D..6FS..SOL ; (0702-0912)ZRE151..
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02580B0 |
ZRE151..5F..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02650B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02770B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02550B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02640B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02570B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D20B0 |
ZRE151..RHD..5F 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-02D50B0 |
ZRE151..5FS..SOL 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-02010 |
NDE150,ZRE151..SOL |
1 | ||
| 45116-02010 |
NDE150,ZRE151..SOL |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-02290B0 |
ZRE151..SOL;NDE150..RHD..5FS;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02140B0 |
NDE150..RHD..5FS;ZRE151..5FS..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02130B0 |
ZRE151..5F..SOL;NDE150..RHD..3D..5F..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02150B0 |
ZRE151..5F..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45184-02160B0 |
ZRE151..5FS..SOL CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH |
1 | ||
| 45186-02120 |
ZRE151..SOL CRUISE CONTROL-WITH |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45188-60010 |
NDE150,ZRE151 L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| 90178-W0030 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
