ZRE151R-DHGNKW (2007)
Toyota Auris/Hybrid (Ukp)
Production
Feb 2007
-
Feb 2009
Engine
1ZRFE
Transmission
5FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0702- )5FS

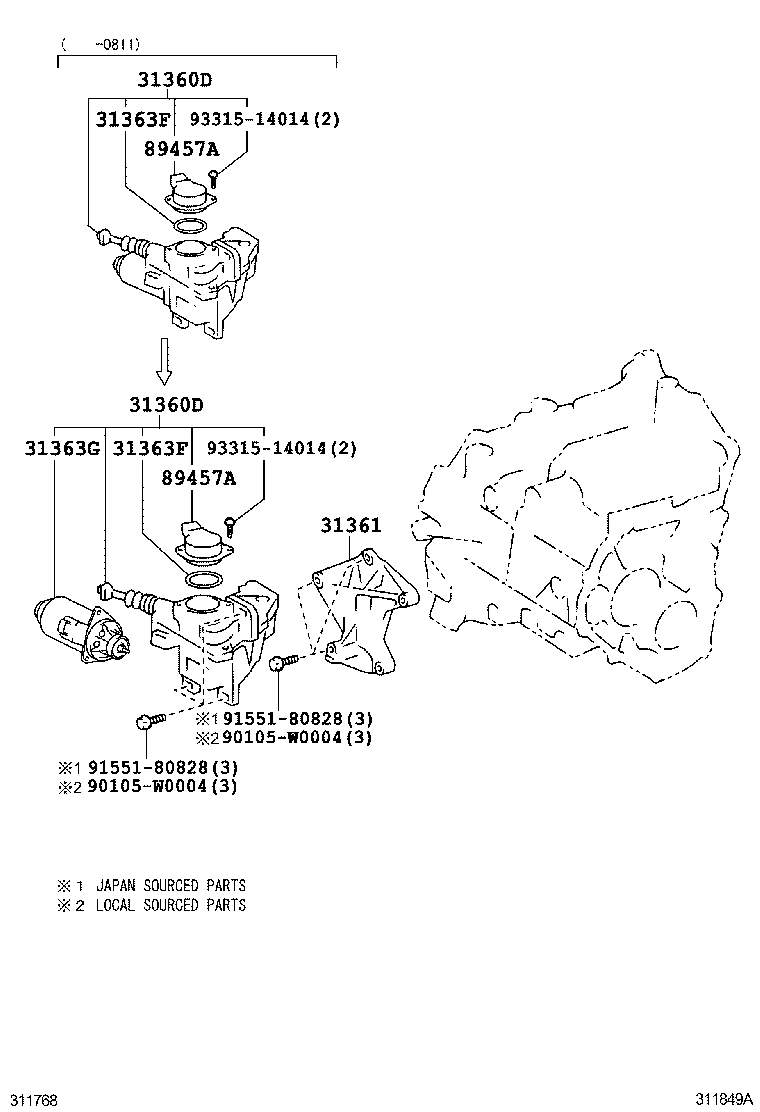

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31360D - ACTUATOR ASSY, CLUTCH | ||||
| 31360-12010 |
NDE150,ZRE151..5FS |
1 | ||
| 31360D - ACTUATOR ASSY, CLUTCH | ||||
| 31360-12010 |
NDE150,ZRE151..5FS |
1 | ||
| 31361 - BRACKET, CLUTCH ACTUATOR, NO.1 | ||||
| 31361-64010 |
NDE150,ZRE151..5FS |
1 | ||
| 31363F - RING, O(FOR CLUTCH ACTUATOR ACCUMULATOR) | ||||
| 90301-37010 |
NDE150,ZRE151..5FS |
1 | ||
| 31363F - RING, O(FOR CLUTCH ACTUATOR ACCUMULATOR) | ||||
| 90301-37010 |
NDE150,ZRE151..5FS |
1 | ||
| 31363G - MOTOR, CLUTCH ACTUATOR | ||||
| 31363-12010 |
NDE150,ZRE151..5FS |
1 | ||
| 89457A - STROKE SENSOR, CLUTCH | ||||
| 89457-52010 |
NDE150,ZRE151..5FS |
1 | ||
| 89457A - STROKE SENSOR, CLUTCH | ||||
| 89457-52010 |
NDE150,ZRE151..5FS |
1 | ||
| Common parts | ||||
| 90105-W0004 | ||||
| 91551-80828 | ||||
| 93315-14014 | ||||
