ZRE151R-DHGNKW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Feb 2009
Engine 1ZRFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702- )1ZRFE

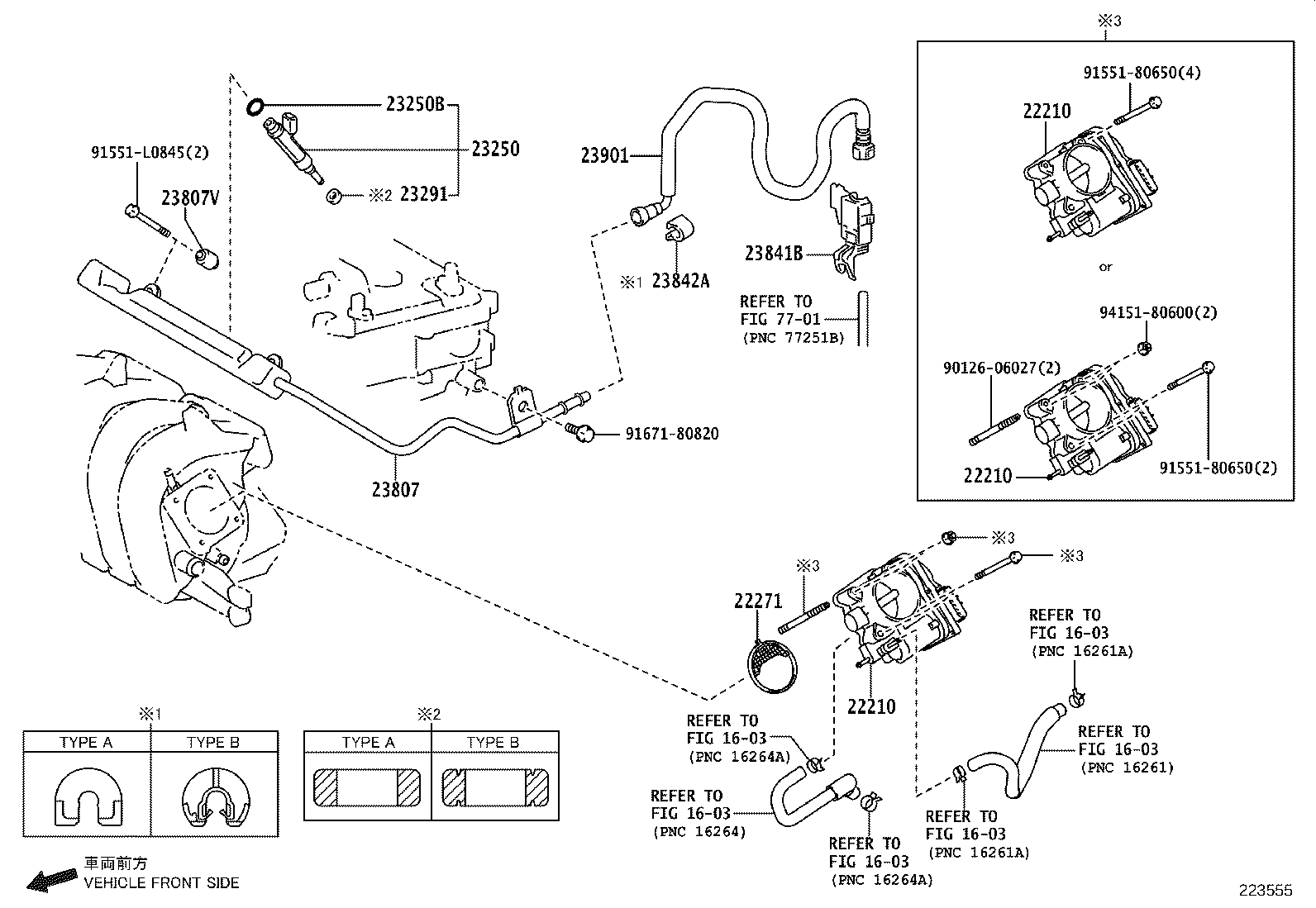

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 22210 22210 22210 22271 23250 23250B 23291 23807 23807V 23841B 23842A 23901 7701 9012606027 9155180650 9155180650 91551L0845 9167180820 9415180600
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22030-37010

1ZRFE..ZRE151

 1
22210 - BODY ASSY, THROTTLE
22030-37010

1ZRFE..ZRE151

 1
22210 - BODY ASSY, THROTTLE
22030-37010

1ZRFE..ZRE151

 1
22271 - GASKET, THROTTLE BODY
22271-75031

1ZRFE..ZRE151

 1
23250 - INJECTOR ASSY, FUEL
23209-39145

1ZRFE..ZRE151

(J)

 4
23209-09130

1ZRFE..ZRE151

(L)

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

1ZRFE..ZRE151

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

1ZRFE..ZRE151

*149

 4
23291-41010

1ZRFE..ZRE151

*149

 4
23291-23010

1ZRFE..ZRE151

*148

 4
23291-41010

1ZRFE..ZRE151

*148

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-37050

1ZRFE..ZRE151

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-37010

1ZRFE..ZRE151

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21040

1ZRFE,4ZZFE..ZRE151,ZZE150

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020

1ZRFE..ZRE151

TYPE A:REFER ILLUST.

 1
23842-28010

1ZRFE..ZRE151

TYPE B:REFER ILLUST.

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0D090

1ZRFE..ZRE151

 1
Common parts
90126-06027
91551-80650
91551-L0845
91671-80820
94151-80600
Linked diagrams
1603
7701
