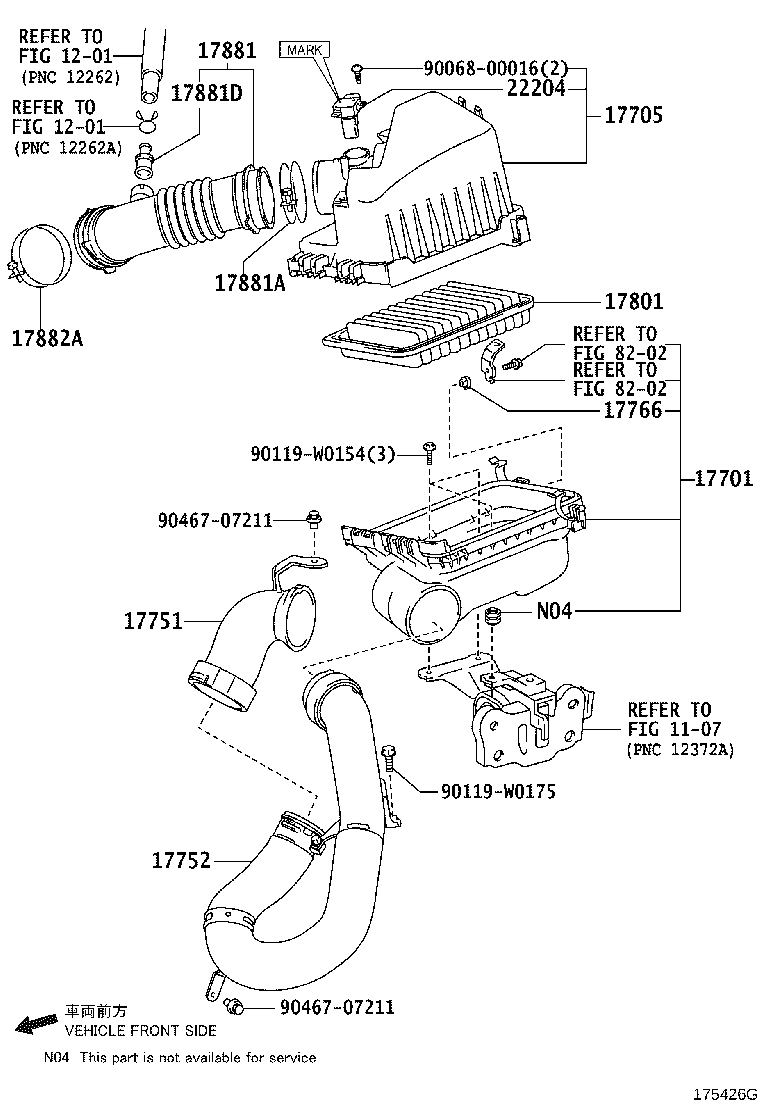

Toyota Auris/hybrid (ukp) ZRE151 AIR CLEANER

Part #	Description	Period	Qty
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0D140	1ZRFE..ZRE151	02/2007 - 02/2009	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0D201	1ZRFE..ZRE151	05/2007 - 02/2009	1
17705-0D200	1ZRFE..ZRE151	02/2007 - 04/2007	1
17751 - INLET, AIR CLEANER, NO.1
17751-37050	1ZRFE..ZRE151	02/2007 - 02/2009	1
17752 - INLET, AIR CLEANER, NO.2
17752-37030	1ZRFE..ZRE151	02/2007 - 02/2009	1
17766 - STAY, AIR CLEANER, NO.2
17706-22010	1ZRFE..ZRE151	02/2007 - 02/2009	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0D060	1ZRFE..ZRE151	02/2007 - 02/2009	1
17881 - HOSE, AIR CLEANER, NO.1
17880-0D090	1ZRFE..ZRE151	02/2007 - 02/2009	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830	1ZRFE..ZRE151	02/2007 - 02/2009	1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
12229-21010	1ZRFE..ZRE151	02/2007 - 02/2009	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780	1ZRFE..ZRE151	02/2007 - 02/2009	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-31010	1ZRFE,4ZZFE..ZRE151,ZZE150	02/2007 - 04/2007	1
22204-31020	1ZRFE..ZRE151	05/2007 - 02/2009	1
Common parts
90068-00016
90119-W0154
90119-W0175
90467-07211
Linked diagrams
1107
1201
8202

ZRE151R-DHGNKW (2007)
