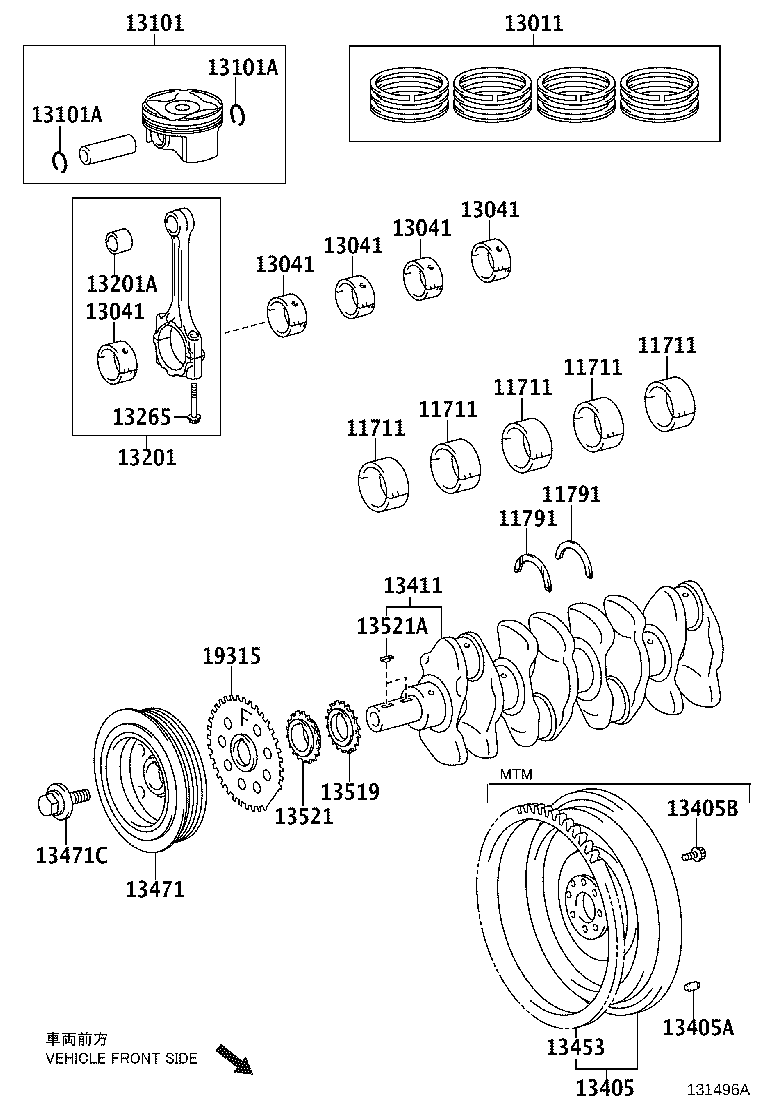

ZRE151R-DHGNKW (2007)
Toyota Auris/Hybrid (Ukp)
(0702- )1ZR#,2ZRFAE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0T02001 |
1ZRFE..ZRE151 MARK1,(L):REFER R/M |
5 | ||
| 11701-0T02002 |
1ZRFE..ZRE151 MARK2,(L):REFER R/M |
5 | ||
| 11701-3702004 |
1ZRFE..ZRE151 MARK4,(J):REFER R/M |
5 | ||
| 11701-0T02004 |
1ZRFE..ZRE151 MARK4,(L):REFER R/M |
5 | ||
| 11701-3702001 |
1ZRFE..ZRE151 MARK1,(J):REFER R/M |
5 | ||
| 11701-0T02003 |
1ZRFE..ZRE151 MARK3,(L):REFER R/M |
5 | ||
| 11701-3702002 |
1ZRFE..ZRE151 MARK2,(J):REFER R/M |
5 | ||
| 11701-3702003 |
1ZRFE..ZRE151 MARK3,(J):REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0T02001 |
1ZRFE..ZRE151 MARK1,(L):REFER R/M |
5 | ||
| 11701-0T02002 |
1ZRFE..ZRE151 MARK2,(L):REFER R/M |
5 | ||
| 11701-3702004 |
1ZRFE..ZRE151 MARK4,(J):REFER R/M |
5 | ||
| 11701-0T02004 |
1ZRFE..ZRE151 MARK4,(L):REFER R/M |
5 | ||
| 11701-3702001 |
1ZRFE..ZRE151 MARK1,(J):REFER R/M |
5 | ||
| 11701-0T02003 |
1ZRFE..ZRE151 MARK3,(L):REFER R/M |
5 | ||
| 11701-3702002 |
1ZRFE..ZRE151 MARK2,(J):REFER R/M |
5 | ||
| 11701-3702003 |
1ZRFE..ZRE151 MARK3,(J):REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0T02001 |
1ZRFE..ZRE151 MARK1,(L):REFER R/M |
5 | ||
| 11701-0T02002 |
1ZRFE..ZRE151 MARK2,(L):REFER R/M |
5 | ||
| 11701-3702004 |
1ZRFE..ZRE151 MARK4,(J):REFER R/M |
5 | ||
| 11701-0T02004 |
1ZRFE..ZRE151 MARK4,(L):REFER R/M |
5 | ||
| 11701-3702001 |
1ZRFE..ZRE151 MARK1,(J):REFER R/M |
5 | ||
| 11701-0T02003 |
1ZRFE..ZRE151 MARK3,(L):REFER R/M |
5 | ||
| 11701-3702002 |
1ZRFE..ZRE151 MARK2,(J):REFER R/M |
5 | ||
| 11701-3702003 |
1ZRFE..ZRE151 MARK3,(J):REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0T02001 |
1ZRFE..ZRE151 MARK1,(L):REFER R/M |
5 | ||
| 11701-0T02002 |
1ZRFE..ZRE151 MARK2,(L):REFER R/M |
5 | ||
| 11701-3702004 |
1ZRFE..ZRE151 MARK4,(J):REFER R/M |
5 | ||
| 11701-0T02004 |
1ZRFE..ZRE151 MARK4,(L):REFER R/M |
5 | ||
| 11701-3702001 |
1ZRFE..ZRE151 MARK1,(J):REFER R/M |
5 | ||
| 11701-0T02003 |
1ZRFE..ZRE151 MARK3,(L):REFER R/M |
5 | ||
| 11701-3702002 |
1ZRFE..ZRE151 MARK2,(J):REFER R/M |
5 | ||
| 11701-3702003 |
1ZRFE..ZRE151 MARK3,(J):REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0T02001 |
1ZRFE..ZRE151 MARK1,(L):REFER R/M |
5 | ||
| 11701-0T02002 |
1ZRFE..ZRE151 MARK2,(L):REFER R/M |
5 | ||
| 11701-3702004 |
1ZRFE..ZRE151 MARK4,(J):REFER R/M |
5 | ||
| 11701-0T02004 |
1ZRFE..ZRE151 MARK4,(L):REFER R/M |
5 | ||
| 11701-3702001 |
1ZRFE..ZRE151 MARK1,(J):REFER R/M |
5 | ||
| 11701-0T02003 |
1ZRFE..ZRE151 MARK3,(L):REFER R/M |
5 | ||
| 11701-3702002 |
1ZRFE..ZRE151 MARK2,(J):REFER R/M |
5 | ||
| 11701-3702003 |
1ZRFE..ZRE151 MARK3,(J):REFER R/M |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-22020 |
1ZRFE..ZRE151 STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-22020 |
1ZRFE..ZRE151 STD |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-0T031 |
1ZRFE..ZRE151 STD,(L) |
1 | ||
| 13011-37090 |
1ZRFE..ZRE151 STD,(J) |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3701001 |
1ZRFE..ZRE151 MARK1,(J):REFER R/M |
4 | ||
| 13041-0T03001 |
1ZRFE..ZRE151 MARK1,(L):REFER R/M |
4 | ||
| 13041-3701003 |
1ZRFE..ZRE151 MARK3,(J):REFER R/M |
4 | ||
| 13041-3701002 |
1ZRFE..ZRE151 MARK2,(J):REFER R/M |
4 | ||
| 13041-0T03002 |
1ZRFE..ZRE151 MARK2,(L):REFER R/M |
4 | ||
| 13041-0T03003 |
1ZRFE..ZRE151 MARK3,(L):REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3701001 |
1ZRFE..ZRE151 MARK1,(J):REFER R/M |
4 | ||
| 13041-0T03001 |
1ZRFE..ZRE151 MARK1,(L):REFER R/M |
4 | ||
| 13041-3701003 |
1ZRFE..ZRE151 MARK3,(J):REFER R/M |
4 | ||
| 13041-3701002 |
1ZRFE..ZRE151 MARK2,(J):REFER R/M |
4 | ||
| 13041-0T03002 |
1ZRFE..ZRE151 MARK2,(L):REFER R/M |
4 | ||
| 13041-0T03003 |
1ZRFE..ZRE151 MARK3,(L):REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3701001 |
1ZRFE..ZRE151 MARK1,(J):REFER R/M |
4 | ||
| 13041-0T03001 |
1ZRFE..ZRE151 MARK1,(L):REFER R/M |
4 | ||
| 13041-3701003 |
1ZRFE..ZRE151 MARK3,(J):REFER R/M |
4 | ||
| 13041-3701002 |
1ZRFE..ZRE151 MARK2,(J):REFER R/M |
4 | ||
| 13041-0T03002 |
1ZRFE..ZRE151 MARK2,(L):REFER R/M |
4 | ||
| 13041-0T03003 |
1ZRFE..ZRE151 MARK3,(L):REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3701001 |
1ZRFE..ZRE151 MARK1,(J):REFER R/M |
4 | ||
| 13041-0T03001 |
1ZRFE..ZRE151 MARK1,(L):REFER R/M |
4 | ||
| 13041-3701003 |
1ZRFE..ZRE151 MARK3,(J):REFER R/M |
4 | ||
| 13041-3701002 |
1ZRFE..ZRE151 MARK2,(J):REFER R/M |
4 | ||
| 13041-0T03002 |
1ZRFE..ZRE151 MARK2,(L):REFER R/M |
4 | ||
| 13041-0T03003 |
1ZRFE..ZRE151 MARK3,(L):REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3701001 |
1ZRFE..ZRE151 MARK1,(J):REFER R/M |
4 | ||
| 13041-0T03001 |
1ZRFE..ZRE151 MARK1,(L):REFER R/M |
4 | ||
| 13041-3701003 |
1ZRFE..ZRE151 MARK3,(J):REFER R/M |
4 | ||
| 13041-3701002 |
1ZRFE..ZRE151 MARK2,(J):REFER R/M |
4 | ||
| 13041-0T03002 |
1ZRFE..ZRE151 MARK2,(L):REFER R/M |
4 | ||
| 13041-0T03003 |
1ZRFE..ZRE151 MARK3,(L):REFER R/M |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-0T050 |
1ZRFE..ZRE151 STD,(L) |
4 | ||
| 13101-37081 |
1ZRFE..ZRE151 STD,(J) |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-20064 |
1ZRFE..ZRE151 |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-20064 |
1ZRFE..ZRE151 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-39185 |
1ZRFE..ZRE151 (J) |
4 | ||
| 13201-09890 |
1ZRFE..ZRE151 (L) |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73151 |
1ZRFE..ZRE151 |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-22020 |
1ZRFE..ZRE151 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0T050 |
1ZRFE..ZRE151 (L) |
1 | ||
| 13405-37050 |
1ZRFE..ZRE151 (J) |
1 | ||
| 13405-0T030 |
1ZRFE..ZRE151 (L) |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
1ZRFE..ZRE151 L=23,OD=8,*148 |
3 | ||
| 90250-08120 |
1ZRFE..ZRE151 L=18,OD=8,*148 |
3 | ||
| 90250-08120 |
1ZRFE..ZRE151 L=18,OD=8,*149 |
3 | ||
| 90250-08054 |
1ZRFE..ZRE151 L=23,OD=8,*149 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01027 |
1ZRFE..ZRE151 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0T050 |
1ZRFE..ZRE151 (L) |
1 | ||
| 13401-37010 |
1ZRFE..ZRE151 (J) |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-10010 |
1ZRFE..ZRE151 |
1 | ||
| 13453-0T010 |
1ZRFE..ZRE151 (L) |
1 | ||
| 13453-10010 |
1ZRFE..ZRE151 (J) |
1 | ||
| 13453-10010 |
1ZRFE..ZRE151 (J) |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-37020 |
1ZRFE..ZRE151 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14106 |
1ZRFE..ZRE151 |
1 | ||
| 13519 - GEAR, OIL PUMP DRIVE | ||||
| 13519-37010 |
1ZRFE..ZRE151 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-37010 |
1ZRFE..ZRE151 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-04003 |
1ZRFE..ZRE151 |
2 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-37010 |
1ZRFE..ZRE151 |
1 | ||
| 19315-37020 |
1ZRFE..ZRE151 |
1 | ||
