ZRE151R-DGLNPW (2009)
Toyota Auris/Hybrid (Ukp)
(0902- )ZRE15#..RHD ; (0903- )ADE15#..RHD; (1006- )ZWE150..RHD

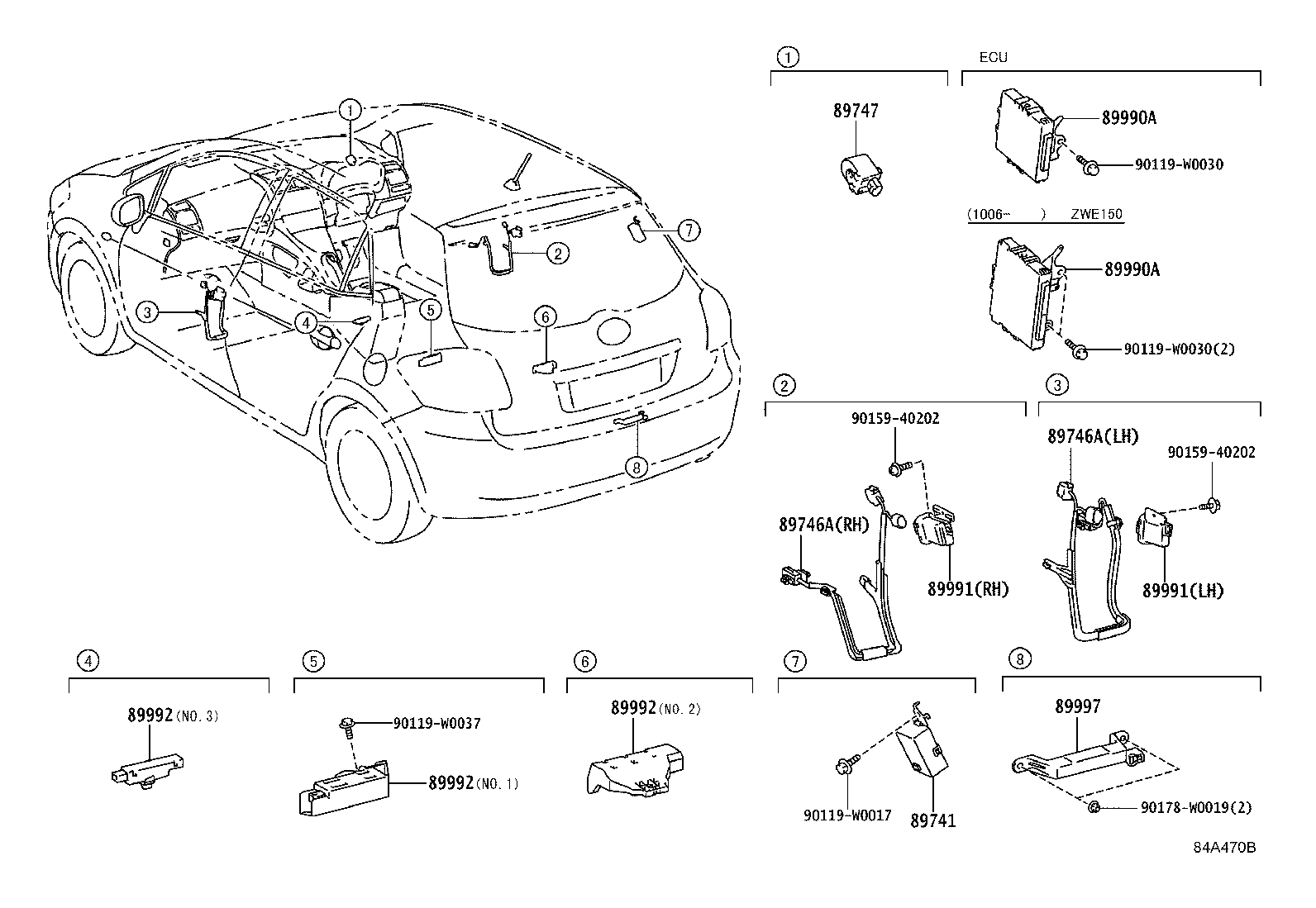

STARTING SYSTEM-PUSH BUTTON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-02100 |
NDE150,ZRE151 |
1 | ||
| 89740-02010 |
ADE15#,ZRE151..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89741-02100 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89741-02100 |
ZRE151..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89741-02100 |
ZRE151..RHD POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89740-02010 |
ADE15#,ZRE151..RHD POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89741-02130 |
NDE150,ZRE151..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 89740-02011 |
ADE150..RHD..DCRL;ADE157,ZRE15#..RHD..3D POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89740-02011 |
ZRE151..RHD..6FS POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTINGSYSTEM-PUSH BUTTON |
1 | ||
| 89741-02100 |
ADE150..RHD..DCRL;ADE157,ZRE15#..RHD..3D POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89740-02011 |
ADE150..RHD..DCRL;ADE157,ZRE15#..RHD..3D POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89740-02011 |
ZRE151..RHD..6FS POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89741-02100 |
ZRE151..RHD..6FS POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTINGSYSTEM-PUSH BUTTON |
1 | ||
| 89741-02100 |
ZRE151..RHD POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89740-02011 |
ZRE151..RHD..6FS POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89741-02100 |
ADE150..RHD..DCRL;ADE157,ZRE15#..RHD..3D POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89740-02011 |
ZRE151..RHD..6F POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89741-02100 |
ZRE151..RHD..6FS POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89740-02011 |
ZRE151..RHD..6FS POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89740-02011 |
ZRE151..RHD..6F POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89741-02100 |
ZRE151..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89741-02130 |
NDE150,NRE150,ZRE151..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 89741-02100 |
ADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA |
1 | ||
| 89741-02100 |
ZRE151..RHD..6FS POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89741-02100 |
ZRE151..RHD..6FS POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89746A - HARNESS, ELECTRICAL KEY WIRE | ||||
| 89746-02030 |
ZRE151..RHD..3D STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89746-02040 |
ADE15#,ZRE15#..3D..SOL..(DCRL,HTWVM) STARTING SYSTEM-PUSH BUTTON,LH |
1 | ||
| 89746-02030 |
ADE15#,ZRE15#..3D..SOL..(DCRL,HTWVM) STARTING SYSTEM-PUSH BUTTON,RH |
1 | ||
| 89746A - HARNESS, ELECTRICAL KEY WIRE | ||||
| 89746-02030 |
ZRE151..RHD..3D STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89746-02040 |
ADE15#,ZRE15#..3D..SOL..(DCRL,HTWVM) STARTING SYSTEM-PUSH BUTTON,LH |
1 | ||
| 89746-02030 |
ADE15#,ZRE15#..3D..SOL..(DCRL,HTWVM) STARTING SYSTEM-PUSH BUTTON,RH |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-52010 |
ZRE151..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89747-52010 |
ZRE151..RHD POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89747-52010 |
ADE150..RHD..DCRL;ADE157,ZRE15#..RHD..3D POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89747-52010 |
ZRE151..RHD..6F POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89747-52010 |
ZRE151..RHD..6FS POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTINGSYSTEM-PUSH BUTTON |
1 | ||
| 89747-52010 |
ADE150..RHD..DCRL;ADE157,ZRE15#..RHD..3D POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89747-52010 |
ZRE151..RHD..6FS POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89747-52010 |
ZRE151..RHD..6FS POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89747-52010 |
ZRE151..RHD..6FS POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89747-52010 |
ZRE151..RHD..6F POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-02010 |
ADE15#,ZRE151..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89990-02070 |
ADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89990-02040 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89990-02040 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89990-02040 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-02010 |
ADE15#,ZRE151..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89990-02070 |
ADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89990-02040 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89990-02040 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89990-02040 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30050 |
ADE15#,ZRE15#..SOL..(DCRL,HTWC,HTWVM) STARTING SYSTEM-PUSH BUTTON,LH |
1 | ||
| 89991-30040 |
ADE15#,ZRE15#..SOL..(DCRL,HTWC,HTWVM) STARTING SYSTEM-PUSH BUTTON,RH |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30050 |
ADE15#,ZRE15#..SOL..(DCRL,HTWC,HTWVM) STARTING SYSTEM-PUSH BUTTON,LH |
1 | ||
| 89991-30040 |
ADE15#,ZRE15#..SOL..(DCRL,HTWC,HTWVM) STARTING SYSTEM-PUSH BUTTON,RH |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-02020 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-0D020 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992-02030 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-02030 |
ADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-0D020 |
ADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992-02020 |
ADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-02020 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-02030 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-02030 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-0D010 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992-0D010 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992-02030 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-02020 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-02020 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-0D010 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-02020 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-0D020 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992-02030 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-02030 |
ADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-0D020 |
ADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992-02020 |
ADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-02020 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-02030 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-02030 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-0D010 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992-0D010 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992-02030 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-02020 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-02020 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-0D010 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-02020 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-0D020 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992-02030 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-02030 |
ADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-0D020 |
ADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992-02020 |
ADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-02020 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-02030 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-02030 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-0D010 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992-0D010 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89992-02030 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON,NO.2 |
1 | ||
| 89992-02020 |
ZRE151..RHD..6FS AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-02020 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON,NO.1 |
1 | ||
| 89992-0D010 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON,NO.3 |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-41010 |
ADE150..RHD..DCRL;ZRE151..SOL..HTWC;ADE157,ZRE15#..3D..SOL;ADE150..LHD..3D..SOL..DCRL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90159-40202 | ||||
| 90178-W0019 | ||||
