ZRE151L-DGMDKW (2007)
Toyota Auris/Hybrid (Ukp)
ILLUST NO. 2 OF 2(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-02160 |
NDE150,ZRE151..5F..TERRA VSC-WITH |
1 | ||
| 44050-02150 |
NDE150,ZRE151 |
1 | ||
| 44050-02160 |
NDE150,ZRE151 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-02030 |
NDE150,ZRE151 NO.1 |
2 | ||
| 44547-12010 |
NDE150,ZRE151 NO.2 |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-02030 |
NDE150,ZRE151 NO.1 |
2 | ||
| 44547-12010 |
NDE150,ZRE151 NO.2 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-02120 |
NDE150,ZRE151 |
1 | ||
| 44590-02130 |
NDE150,ZRE151 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 44590-02130 |
NDE150,ZRE151..5F..TERRA VSC-WITH |
1 | ||
| Common parts | ||||
| 44521-12060 | ||||
| 44521-12070 | ||||
| 90119-06844 | ||||
| 90178-06019 | ||||
| 90179-08200 | ||||
| 90179-08249 | ||||

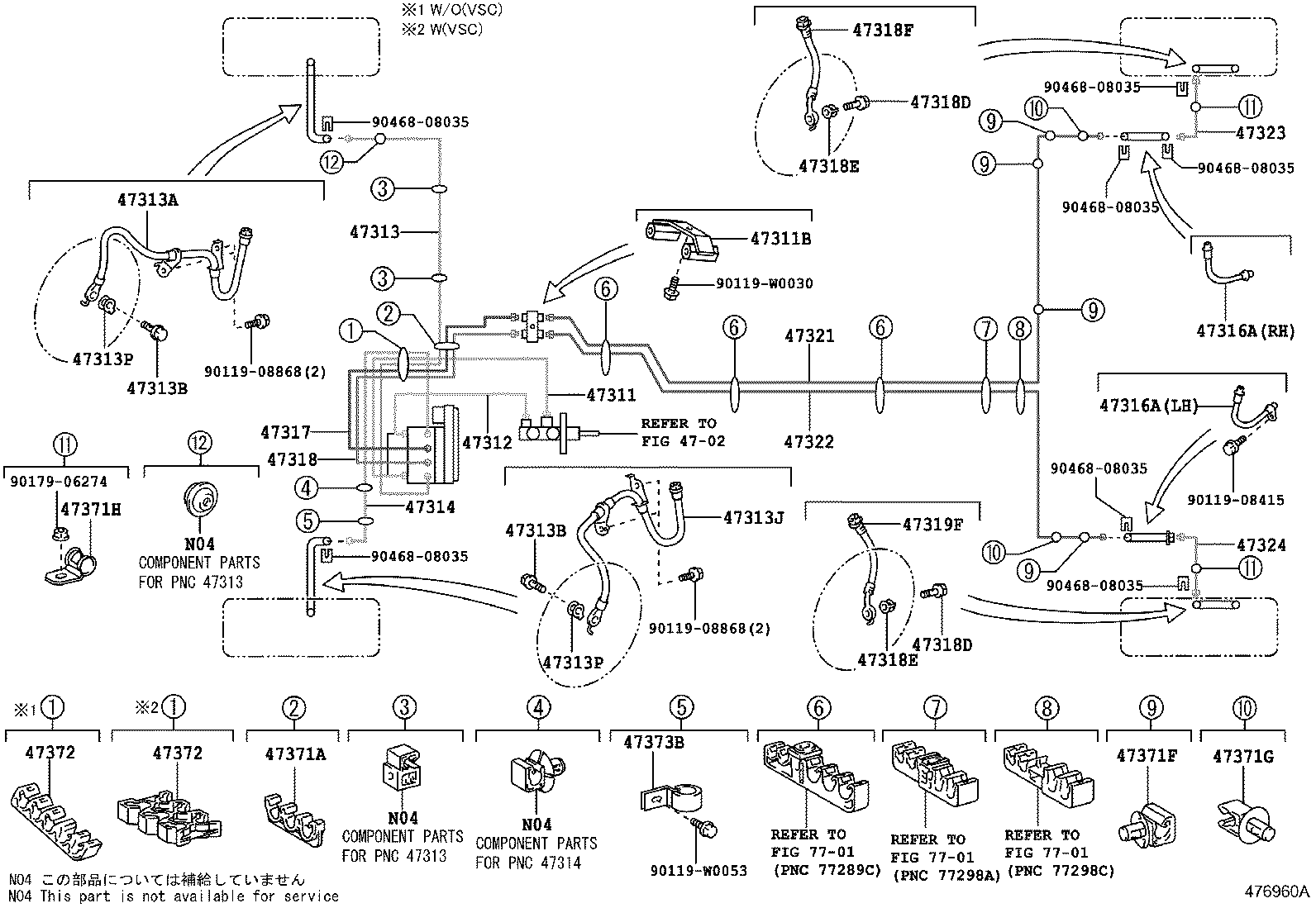

ILLUST NO. 1 OF 2(0702- )NRE150,ZRE15#,ZZE150..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02370 |
NDE150,ZRE151..LHD |
1 | ||
| 47311-02390 |
NDE150,ZRE151..LHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47311-02390 |
NDE150,ZRE151..LHD..5F..TERRA VSC-WITH |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10255 |
NDE150,ZRE151 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02260 |
NDE150,ZRE151..LHD..5F..TERRA VSC-WITH |
1 | ||
| 47312-02260 |
NDE150,ZRE151..LHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47312-02240 |
NDE150,ZRE151..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02310 |
NDE150,ZRE151..LHD |
1 | ||
| 47313-02320 |
NDE150,ZRE151..LHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47313-02320 |
NDE150,ZRE151..LHD..5F..TERRA VSC-WITH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-W2012 |
NDE150,ZRE151 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NDE150,ZRE151 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NDE150,ZRE151 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-W2013 |
NDE150,ZRE151 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE150,ZRE151 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE150,ZRE151 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02360 |
NDE150,ZRE151..LHD..5F..TERRA VSC-WITH |
1 | ||
| 47314-02350 |
NDE150,ZRE151..LHD |
1 | ||
| 47314-02360 |
NDE150,ZRE151..LHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-W2015 |
NDE150,ZRE151 RH |
1 | ||
| 90947-W2014 |
NDE150,ZRE151 LH |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-W2015 |
NDE150,ZRE151 RH |
1 | ||
| 90947-W2014 |
NDE150,ZRE151 LH |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02240 |
NDE150,ZRE151..LHD..5F..TERRA VSC-WITH |
1 | ||
| 47317-02230 |
NDE150,ZRE151..LHD |
1 | ||
| 47317-02240 |
NDE150,ZRE151..LHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02260 |
NDE150,ZRE151..LHD..5F..TERRA VSC-WITH |
1 | ||
| 47318-02260 |
NDE150,ZRE151..LHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47318-02250 |
NDE150,ZRE151..LHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NDE150,ZRE151 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NDE150,ZRE151 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE150,ZRE151 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE150,ZRE151 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-W2016 |
NDE150,ZRE151 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-W2016 |
NDE150,ZRE151 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02170 |
NDE150,ZRE151 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02170 |
NDE150,ZRE151 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-02080 |
NDE150,ZRE151 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-02080 |
NDE150,ZRE151 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NDE150,ZRE151 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D17 |
NDE150,ZRE151 |
4 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-01D29 |
NDE150,ZRE151 |
2 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90461-10837 |
NDE150,ZRE151 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00885 |
NDE150,ZRE151..LHD..5F..TERRA VSC-WITH |
1 | ||
| 90464-00885 |
NDE150,ZRE151..LHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 90464-00900 |
NDE150,ZRE151..LHD |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00885 |
NDE150,ZRE151..LHD..5F..TERRA VSC-WITH |
1 | ||
| 90464-00885 |
NDE150,ZRE151..LHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 90464-00900 |
NDE150,ZRE151..LHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-10781 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90119-08415 | ||||
| 90119-08868 | ||||
| 90119-W0030 | ||||
| 90119-W0053 | ||||
| 90179-06274 | ||||
| 90468-08035 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
