ZRE151L-DGMDKW (2007)
Toyota Auris/Hybrid (Ukp)
Production
Feb 2007
-
Feb 2009
Engine
1ZRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0702- )1ZR#,2ZR#

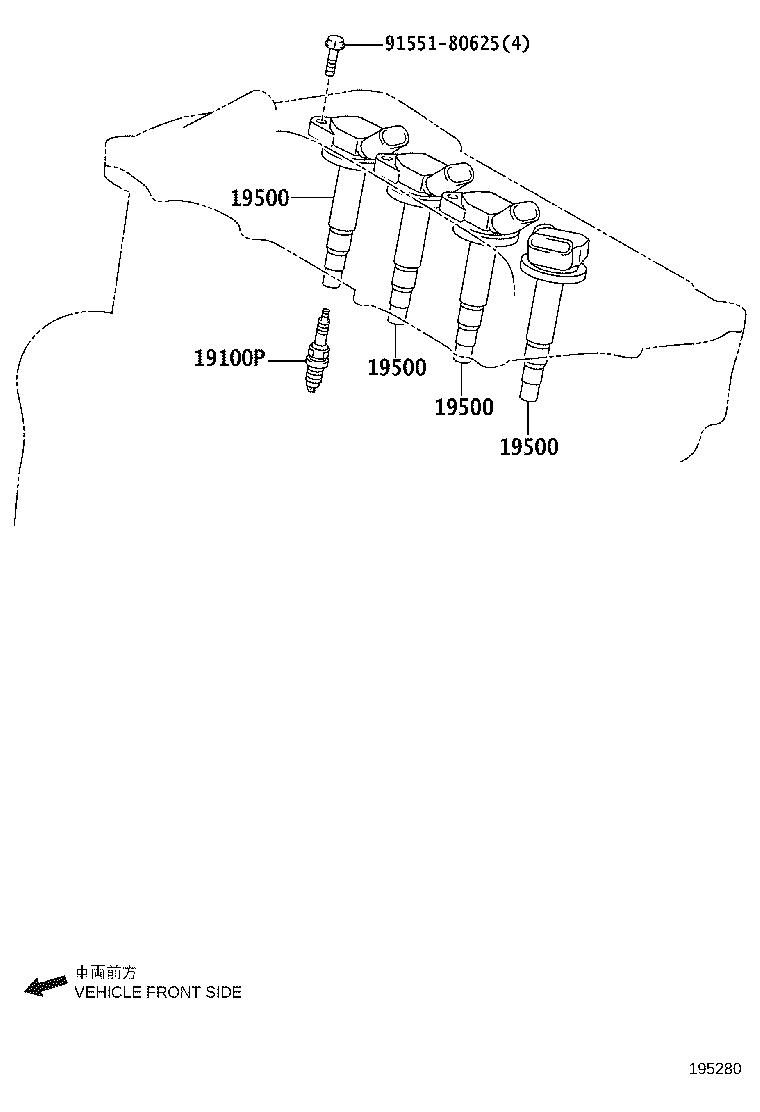

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01253 |
1ZRFE..ZRE151 SC20HR11 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02252 |
1ZRFE..ZRE151 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02252 |
1ZRFE..ZRE151 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02252 |
1ZRFE..ZRE151 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02252 |
1ZRFE..ZRE151 |
4 | ||
| Common parts | ||||
| 91551-80625 | ||||
