ZRE151L-DGLDPW (2009)
Toyota Auris/Hybrid (Ukp)
Production
Feb 2009
-
Jan 2010
Engine
1ZRFAE
Transmission
6FS MTM
Displacement
2500cc
Power
168 HP (125 kW)

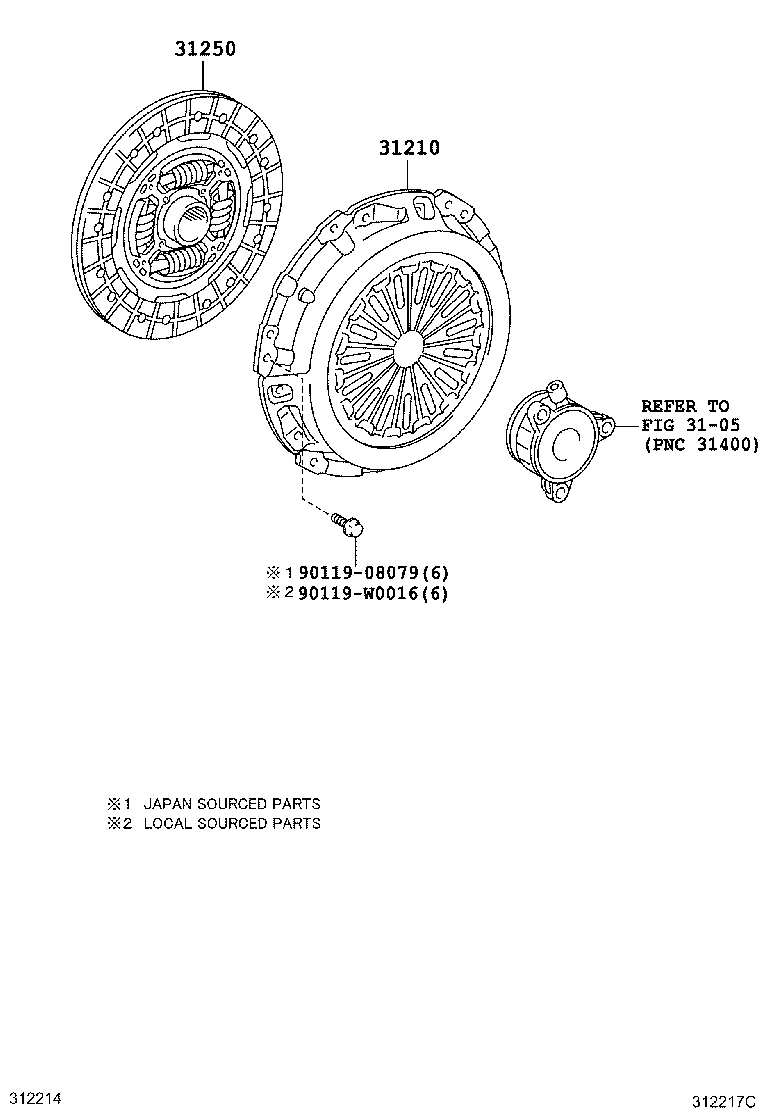

(0902- )ZRE15#..6F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-12360 |
ZRE151..6FS |
1 | ||
| 31210-05120 |
ZRE151..6F |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-12480 |
ZRE151..6FS |
1 | ||
| 31250-05140 |
ZRE15#..6F |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-W0016 | ||||
| Linked diagrams | ||||
| 3105 | ||||

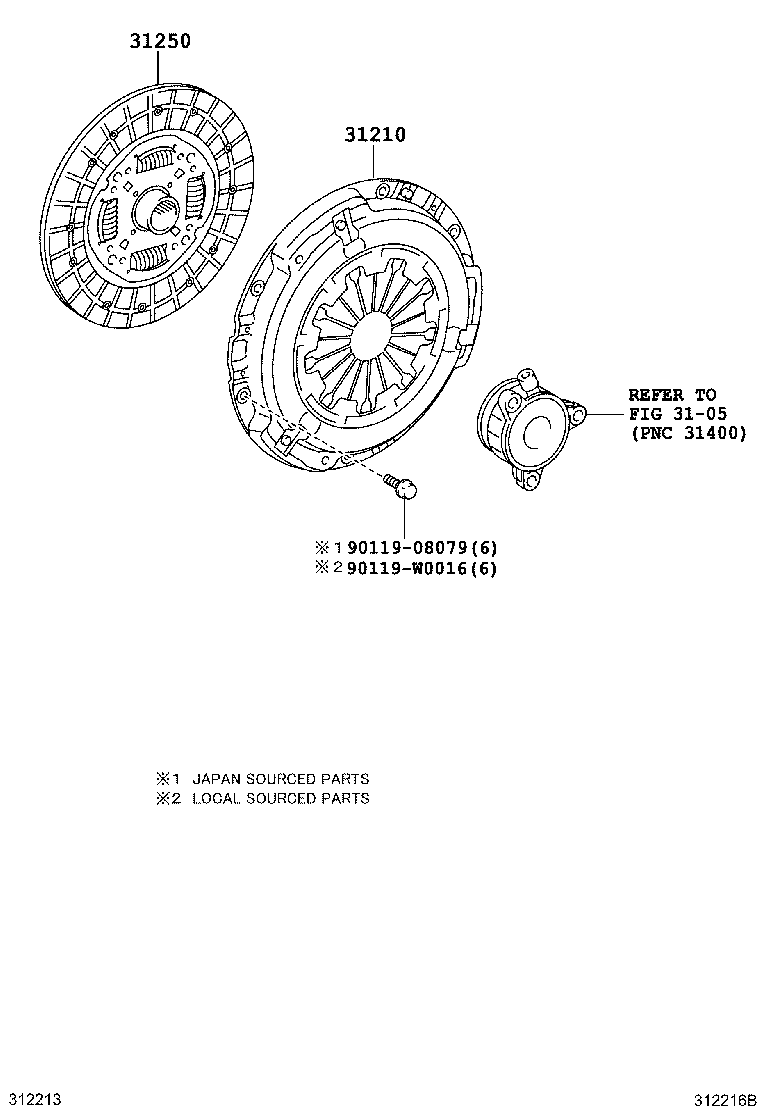

(0902- )NDE150 ; (0902- )ZRE151..6FS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-12360 |
ZRE151..6FS |
1 | ||
| 31210-05120 |
ZRE151..6F |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-12480 |
ZRE151..6FS |
1 | ||
| 31250-05140 |
ZRE15#..6F |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-W0016 | ||||
| Linked diagrams | ||||
| 3105 | ||||
