ZRE151L-DGLDPW (2009)
Toyota Auris/Hybrid (Ukp)

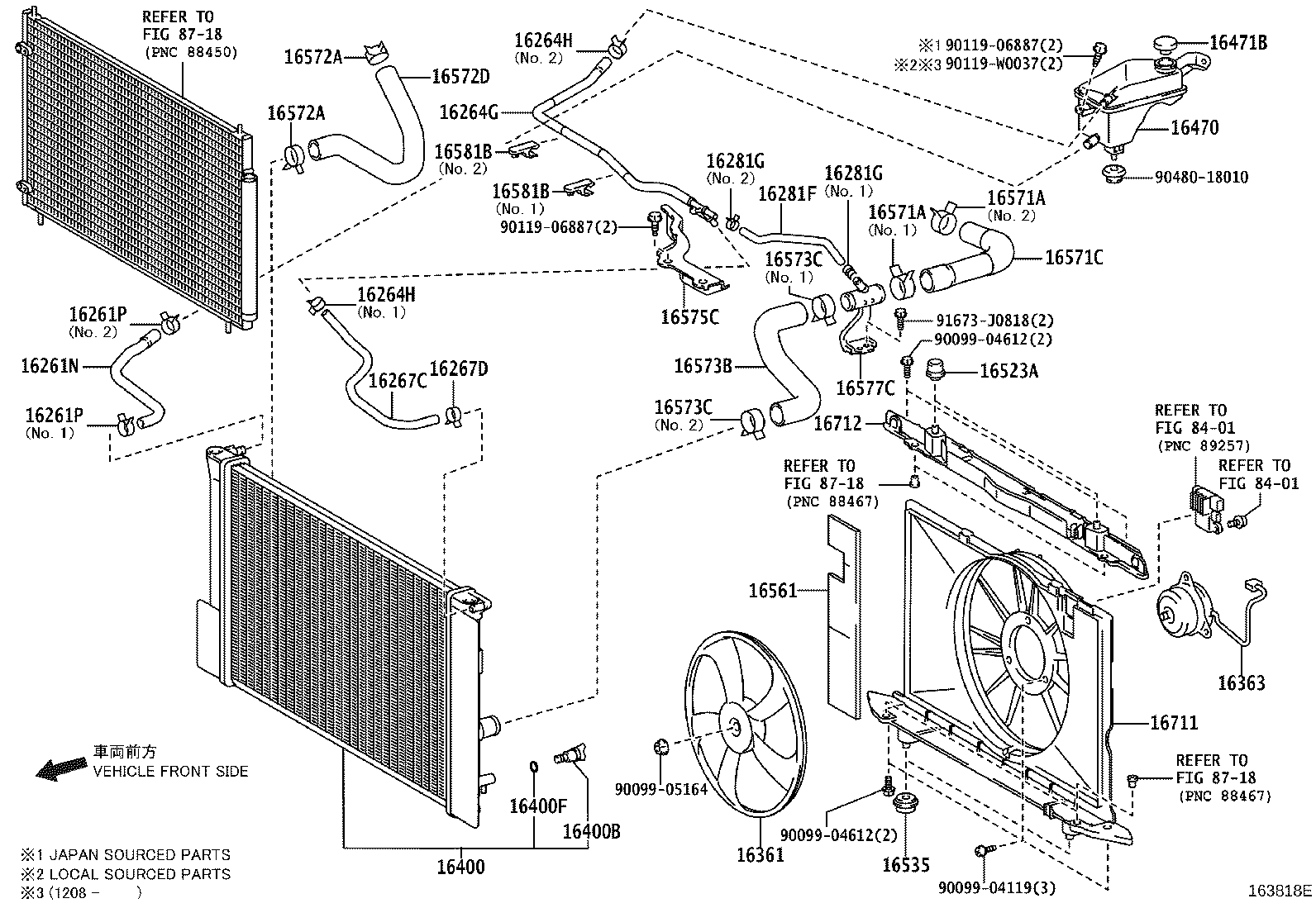

ILLUST NO. 1 OF 2(0902- )1ZR#,2ZRFAE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-0D240 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| 16261-0D240 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52201 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.1 |
1 | ||
| 96136-52501 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.2 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52201 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.1 |
1 | ||
| 96136-52501 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.2 |
1 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-0D140 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| 16264-0D140 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-52101 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.2 |
1 | ||
| 90467-15022 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.1 |
1 | ||
| 90467-15022 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL NO.1 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-52101 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.2 |
1 | ||
| 90467-15022 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.1 |
1 | ||
| 90467-15022 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL NO.1 |
1 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-0D020 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16267-0D020 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-15022 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 90467-15022 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16281-0T030 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-17013 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.1 |
1 | ||
| 96136-51901 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.2 |
1 | ||
| 90467-17013 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL NO.1 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-17013 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.1 |
1 | ||
| 96136-51901 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.2 |
1 | ||
| 90467-17013 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL NO.1 |
1 | ||
| 16361 - FAN | ||||
| 16361-0D150 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| 16361-0D150 |
1ZRFAE,2ZRFAE..ZRE15#..3D *153,*154 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0D120 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16363-0D120 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0D400 |
1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16400-0D400 |
1ZRFAE..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1ZRFAE,2ZRFAE..ZRE15#..3D *154 |
1 | ||
| 16417-0Q040 |
1ZRFAE,2ZRFAE..ZRE15#..3D *153 |
1 | ||
| 16417-0Q040 |
1ZRFAE..ZRE151;2ZRFAE..ZRE152..LHD..SOL *153 |
1 | ||
| 16417-21280 |
1ZRFAE..ZRE151;2ZRFAE..ZRE152..LHD..SOL *154 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZRFAE..ZRE152..LHD..SOL;1ZR#,2ZRFXE..ZRE151,ZWE150 |
1 | ||
| 16492-21050 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-0D030 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16480-0D030 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-51010 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0D040 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
2 | ||
| 16523-0D040 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0D080 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
2 | ||
| 16535-0D080 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-22030 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16561-22030 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.1 |
1 | ||
| 96136-43901 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.2 |
1 | ||
| 96136-43901 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.1 |
1 | ||
| 96136-43901 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.2 |
1 | ||
| 96136-43901 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL NO.2 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0D200 |
1ZRFAE,2ZRFAE..ZRE15# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0D170 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16572-0D170 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0T030 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-35001 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.1 |
1 | ||
| 96136-44301 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.2 |
1 | ||
| 90466-35001 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL NO.1 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-35001 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.1 |
1 | ||
| 96136-44301 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.2 |
1 | ||
| 90466-35001 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL NO.1 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-37020 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16575-22020 |
1ZRFAE,2ZRFAE..ZRE15# |
1 | ||
| 16575-37020 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-0T020 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16577-0T020 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22110 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.1 |
1 | ||
| 16581-22110 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL NO.1 |
1 | ||
| 16581-22120 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL NO.2 |
1 | ||
| 16581-22120 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.2 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22110 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.1 |
1 | ||
| 16581-22110 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL NO.1 |
1 | ||
| 16581-22120 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL NO.2 |
1 | ||
| 16581-22120 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D NO.2 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0D190 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0D010 |
1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D |
1 | ||
| 16712-0D010 |
1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06887 | ||||
| 90119-W0037 | ||||
| 90480-18010 | ||||
| 91673-J0818 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8718 | ||||
