ZRE151L-DGFDPW (2010)
Toyota Auris/Hybrid (Ukp)
(0702-1203)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

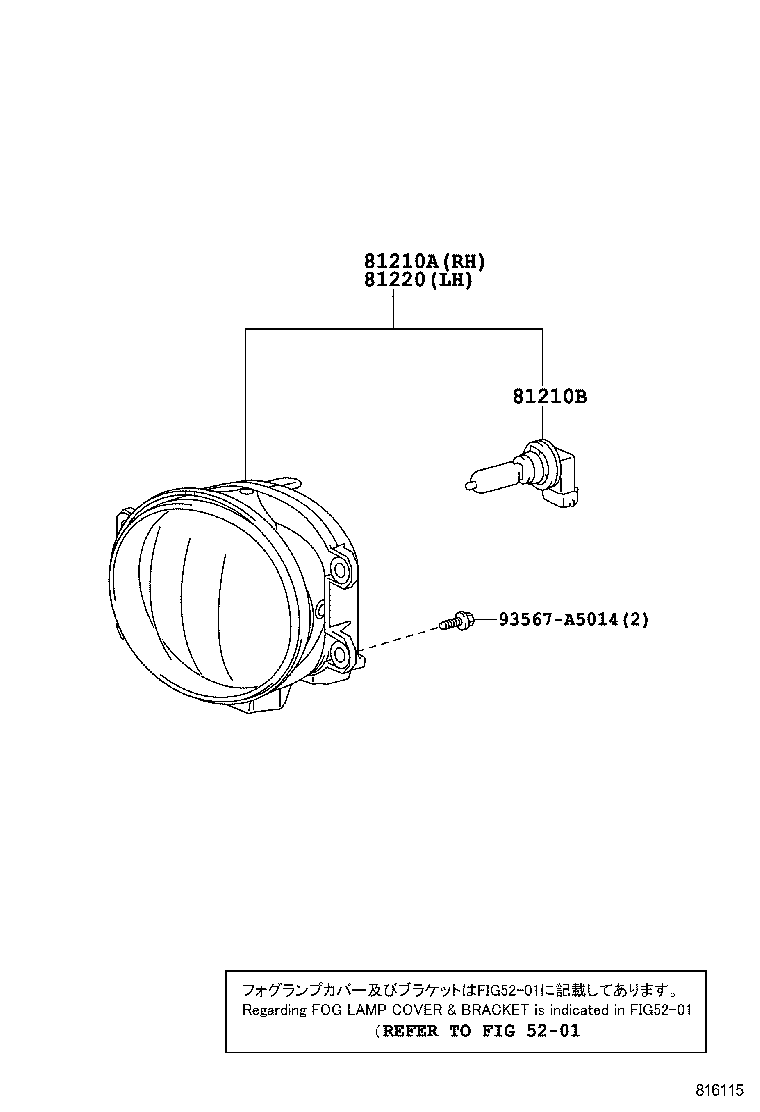

| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-0D041 |
NDE150,ZRE151..TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 81210-0D041 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 81210-0D042 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 81210-0D042 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL |
1 | ||
| 81210-02110 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13081 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL 12V 55W,HALOGEN |
2 | ||
| 90981-WD016 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL 12V 19W |
2 | ||
| 90981-13081 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA 12V 55W,HALOGEN,FRONT FOG LAMP-WITH(WHITE) |
2 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-0D041 |
NDE150,ZRE151..TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 81220-0D042 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL |
1 | ||
| 81220-02110 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 81220-0D042 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 81220-02110 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL |
1 | ||
| 81220-0D041 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| Common parts | ||||
| 93567-A5014 | ||||
| Linked diagrams | ||||
| 5201 | ||||
(1203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-0D041 |
NDE150,ZRE151..TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 81210-0D041 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 81210-0D042 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 81210-0D042 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL |
1 | ||
| 81210-02110 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13081 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL 12V 55W,HALOGEN |
2 | ||
| 90981-WD016 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL 12V 19W |
2 | ||
| 90981-13081 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA 12V 55W,HALOGEN,FRONT FOG LAMP-WITH(WHITE) |
2 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-0D041 |
NDE150,ZRE151..TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 81220-0D042 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL |
1 | ||
| 81220-02110 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 81220-0D042 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 81220-02110 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL |
1 | ||
| 81220-0D041 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| Common parts | ||||
| 93567-A5014 | ||||
| Linked diagrams | ||||
| 5201 | ||||
