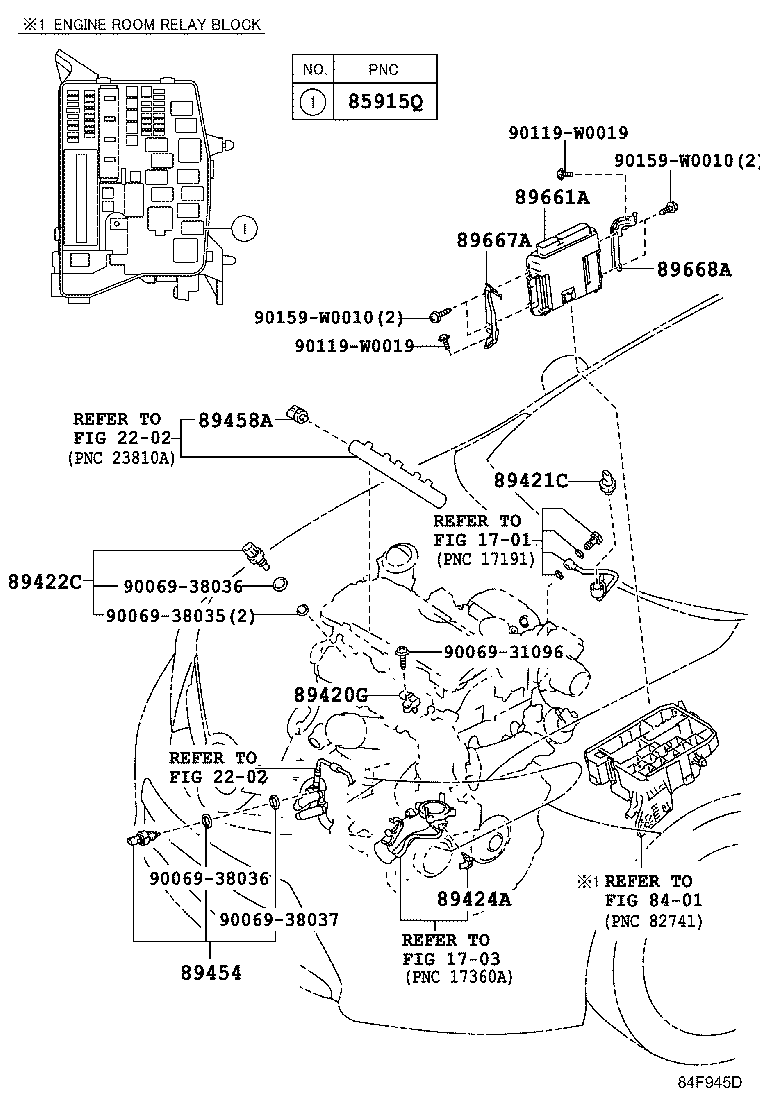

Toyota Auris/hybrid (ukp) WWE185 ELECTRONIC CONTROLED DIESEL (ECD)

Part #	Description	Period	Qty
85915Q - RELAY, COMPUTER (FOR DIESEL)
90080-87021	WWE185	05/2015 - 04/2018	1
89420G - SENSOR ASSY, TURBO PRESSURE
89420-WA010	WWE185	05/2015 - 04/2018	1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-WA010	WWE185	05/2015 - 04/2018	1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-WA010	WWE185	05/2015 - 04/2018	1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-WA010	WWE185	05/2015 - 04/2018	1
89454 - SENSOR, FUEL TEMPERATURE
89454-WA010	WWE185	05/2015 - 04/2018	1
89458A - SENSOR, FUEL PRESSURE
89458-WA010	WWE185	05/2015 - 04/2018	1
89661A - COMPUTER, ENGINE CONTROL
89661-0Z720	WWE185	05/2015 - 05/2016	1
89661-0ZK80	WWE185	05/2016 - 11/2017	1
89661-0ZK81	WWE185 BOSCH	12/2017 - 04/2018	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0F030	WWE185	05/2015 - 04/2018	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0F050	WWE185	05/2015 - 04/2018	1
Common parts
90069-31096
90069-38035
90069-38036
90069-38037
90119-W0019
90159-W0010
Linked diagrams
1701
1703
2202
8401

WWE185R-DWFSXW (2015)
