WWE185R-DWFGXW (2015)
Toyota Auris/Hybrid (Ukp)
Production
May 2015
-
Apr 2018
Engine
1WW
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1505- )WWE185

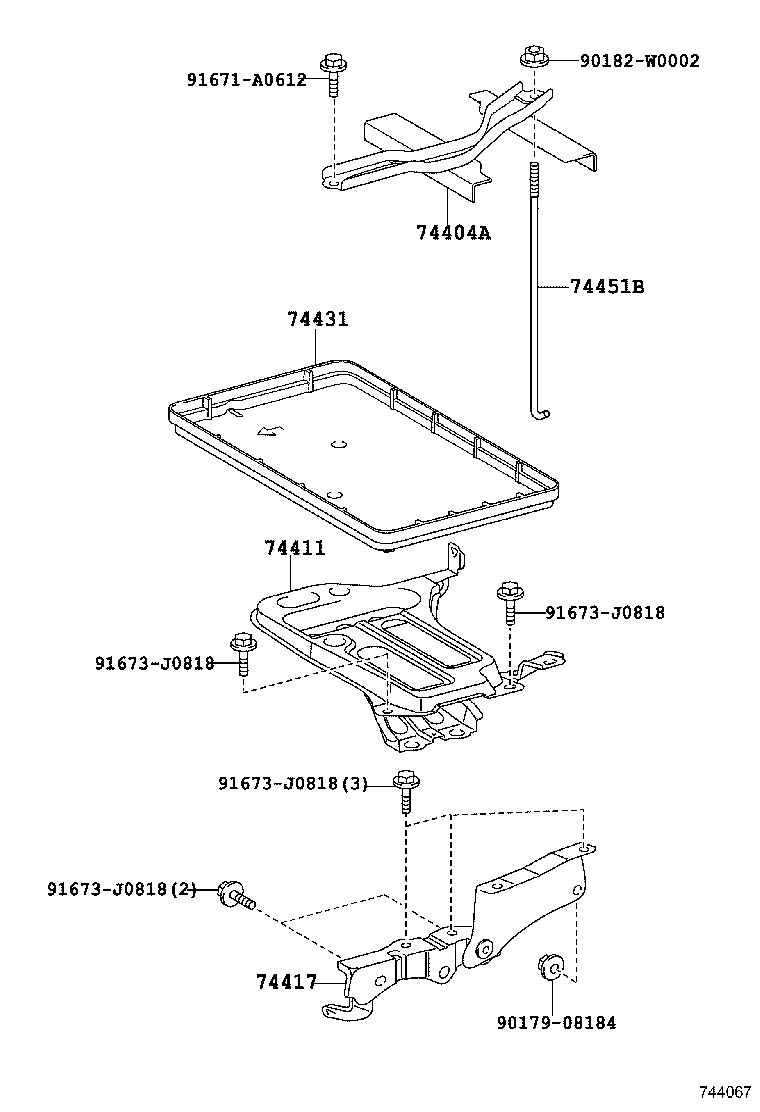

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74404A - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-02560 |
WWE185 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74410-0F020 |
WWE185 |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74401-0F020 |
WWE185 |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-0F030 |
WWE185 |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-30110 |
WWE185 |
1 | ||
| Common parts | ||||
| 90179-08184 | ||||
| 90182-W0002 | ||||
| 91671-A0612 | ||||
| 91673-J0818 | ||||
