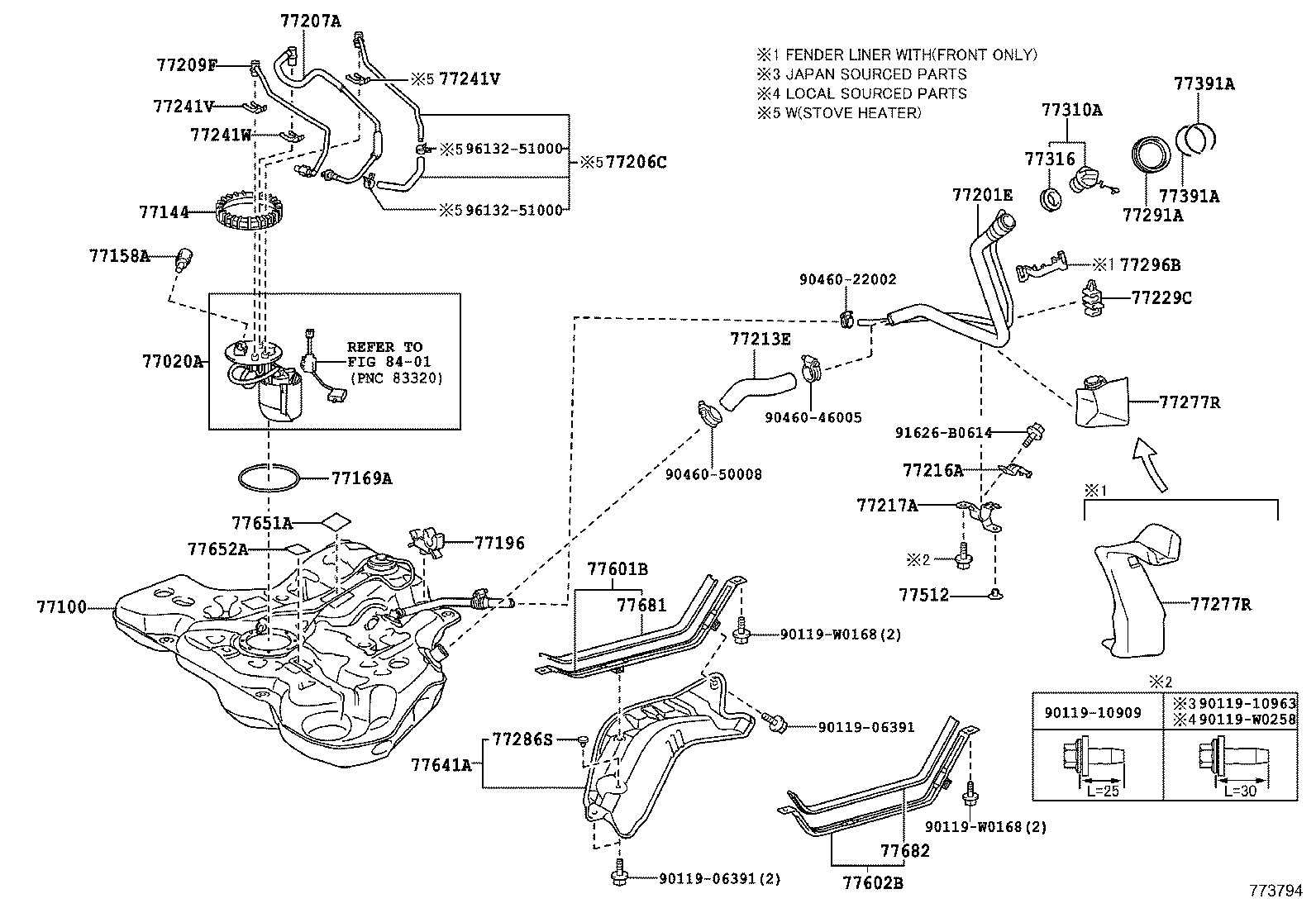

Toyota Auris/hybrid (ukp) WWE185 FUEL TANK & TUBE

Part #	Description	Period	Qty
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-02750	WWE185	05/2015 - 04/2018	1
77100 - TANK ASSY, FUEL
77001-02390	WWE185	05/2015 - 04/2018	1
77144 - RETAINER, FUEL PUMP GAUGE
77144-02110	WWE185	05/2015 - 04/2018	1
77158A - SUPPORT, TANK SUCTION TUBE
77158-0D020	WWE185	05/2015 - 04/2018	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0D030	WWE185	05/2015 - 04/2018	1
77196 - CLAMP, EVAPORATION VENT TUBE, NO.1
77196-02050	WWE185	05/2015 - 04/2018	1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-02500	WWE185	05/2015 - 04/2018	1
77207A - TUBE SUB-ASSY, FUEL RETURN
77204-05050	WWE185	05/2015 - 04/2018	1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-02090	WWE185	05/2015 - 04/2018	1
77213E - HOSE, FUEL TANK TO FILLER PIPE
77213-20190	WWE185 (J)	05/2015 - 04/2018	1
77213-02220	WWE185 (L)	05/2015 - 04/2018	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-02170	WWE185	05/2015 - 04/2018	1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-02140	WWE185	05/2015 - 04/2018	1
77229C - CLAMP, BREATHER TUBE
77229-12070	WWE185	05/2015 - 04/2018	1
77241V - CLIP, TUBE JOINT
77241-32060	WWE185	05/2015 - 04/2018	1
77241V - CLIP, TUBE JOINT
77241-32060	WWE185	05/2015 - 04/2018	1
77241W - CLIP, TUBE JOINT
77241-35450	WWE185	05/2015 - 04/2018	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-12180	WWE185	05/2015 - 04/2018	1
77277-02120	WWE185 FENDER LINER-WITH(FRONT ONLY)	05/2015 - 04/2018	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-12180	WWE185	05/2015 - 04/2018	1
77277-02120	WWE185 FENDER LINER-WITH(FRONT ONLY)	05/2015 - 04/2018	1
77286S - CUSHION, FUEL TANK PROTECTOR
77286-02070	WWE185	05/2015 - 04/2018	1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-02080	WWE185	05/2015 - 04/2018	1
77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1
77296-52030	WWE185 FENDER LINER-WITH(FRONT ONLY)	05/2015 - 04/2018	1
77310A - CAP ASSY, FUEL TANK
77300-12030	WWE185	05/2015 - 04/2018	1
77316 - GASKET, FUEL TANK CAP
77316-52040	WWE185	05/2015 - 04/2018	1
77391A - RING, FUEL INLET BOX
77391-12020	WWE185	05/2015 - 04/2018	2
77391A - RING, FUEL INLET BOX
77391-12020	WWE185	05/2015 - 04/2018	2
77512 - BRACKET, FUEL TANK, REAR
77512-35140	WWE185	05/2015 - 04/2018	1
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-05050	WWE185	05/2015 - 04/2018	1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-02120	WWE185	05/2015 - 04/2018	1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-02070	WWE185	05/2015 - 04/2018	1
77651A - CUSHION, FUEL TANK, NO.1
77651-12070	WWE185	05/2015 - 04/2018	1
77652A - CUSHION, FUEL TANK, NO.2
77652-45020	WWE185	05/2015 - 04/2018	1
77681 - SEAT, FUEL TANK BAND, RH
77681-05010	WWE185	05/2015 - 04/2018	1
77682 - SEAT, FUEL TANK BAND, LH
77681-05020	WWE185	05/2015 - 04/2018	1
Common parts
90119-06391
90119-10909
90119-10963
90119-W0168
90119-W0258
90460-22002
90460-46005
90460-50008
91626-B0614
96132-51000
Linked diagrams
8401

WWE185R-DHFSXW (2015)

ILLUST NO. 1 OF 3(1505- )WWE185

ILLUST NO. 2 OF 3(1505- )WWE185

Part Price Details

Part #	Description	Period	Qty

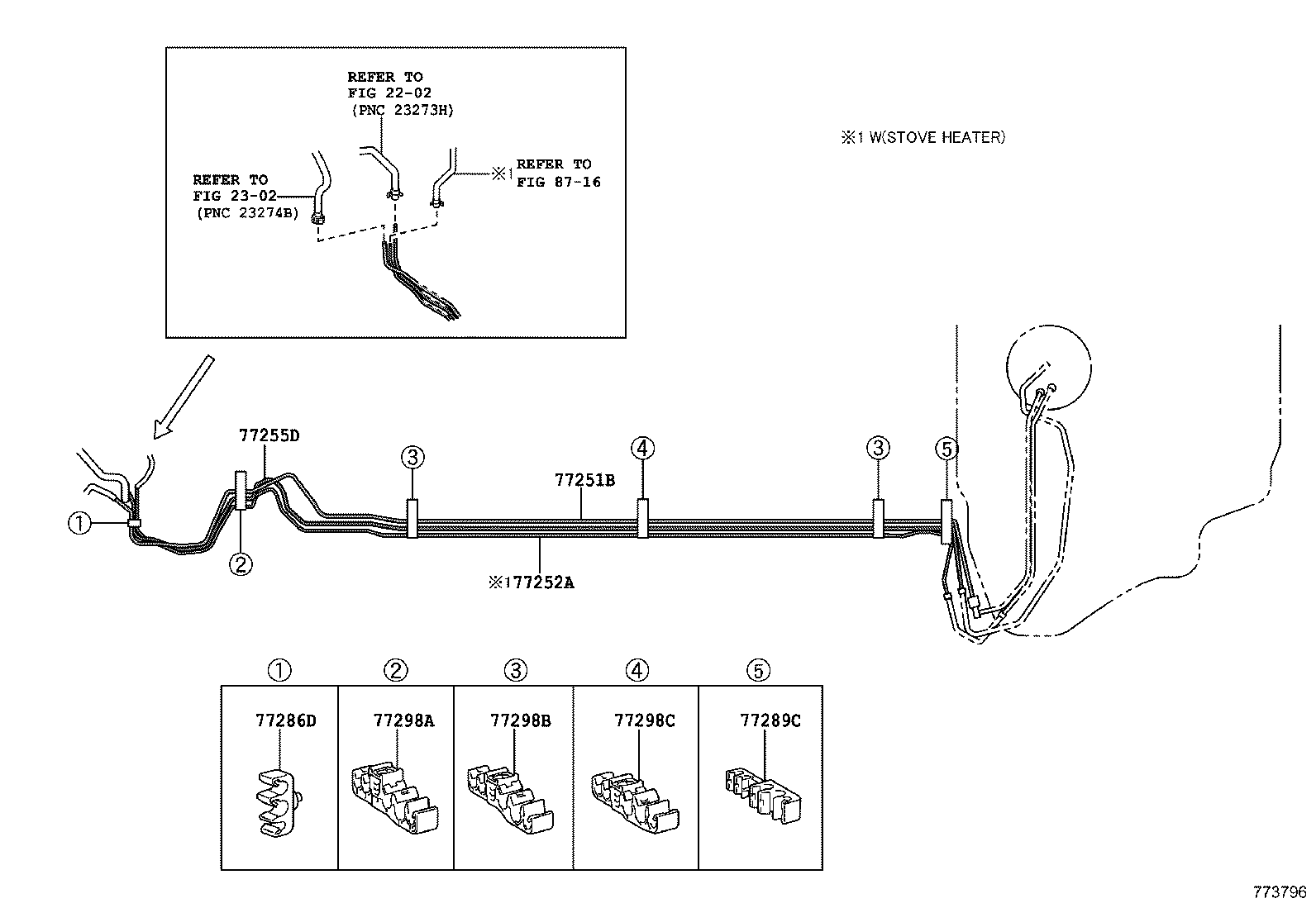

77251B - TUBE, FUEL MAIN
77251-02890	WWE185	05/2015 - 04/2018	1
77255D - TUBE, FUEL RETURN
77255-02370	WWE185	05/2015 - 04/2018	1
77286D - CLAMP, FUEL TUBE, NO.2
77286-0F010	WWE185	05/2015 - 04/2018	1
77289C - CLAMP, FUEL TUBE, NO.4
77298-0F030	WWE185	05/2015 - 04/2018	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-0F020	WWE185	05/2015 - 04/2018	1
77298B - CLAMP, FUEL TUBE, NO.4
77298-0F010	WWE185	05/2015 - 04/2018	2
77298C - CLAMP, FUEL TUBE, NO.4
77298-02170	WWE185	05/2015 - 04/2018	1
Linked diagrams
2202
2302
8716
