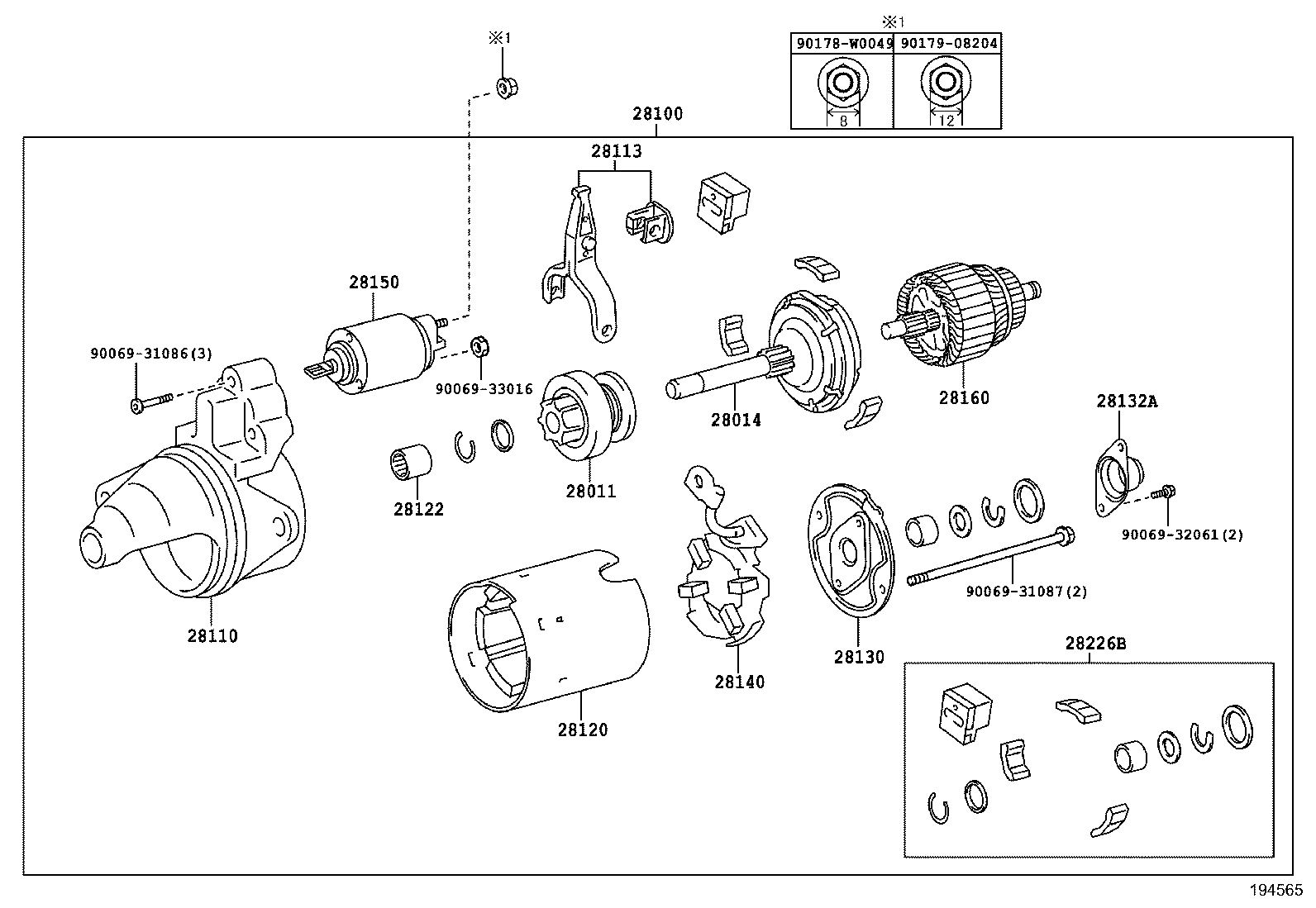

Toyota Auris/hybrid (ukp) WWE185 STARTER

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-0X040	1WW..WWE185	05/2015 - 04/2018	1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-0X040	1WW..WWE185	05/2015 - 04/2018	1
28100 - STARTER ASSY
28100-0X040	1WW..WWE185 12V 2.0KW	05/2015 - 04/2018	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0X040	1WW..WWE185	05/2015 - 04/2018	1
28113 - LEVER, STARTER PINION DRIVE
28113-0X040	1WW..WWE185	05/2015 - 04/2018	1
28120 - YOKE ASSY, STARTER
28120-0X040	1WW..WWE185	05/2015 - 04/2018	1
28122 - COLLAR, SPACE
28122-0X040	1WW..WWE185	05/2015 - 04/2018	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0X040	1WW..WWE185	05/2015 - 04/2018	1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-0X040	1WW..WWE185	05/2015 - 04/2018	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0X040	1WW..WWE185	05/2015 - 04/2018	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0X040	1WW..WWE185	05/2015 - 04/2018	1
28160 - ARMATURE ASSY, STARTER
28160-0X040	1WW..WWE185	05/2015 - 04/2018	1
28226B - STARTER KIT, REPAIR SERVICE
28226-0X040	1WW..WWE185	05/2015 - 04/2018	1
Common parts
90069-31086
90069-31087
90069-32061
90069-33016
90178-W0049
90179-08204

WWE185R-DHFSXW (2015)
