WWE185R-DHFGXW (2015)
Toyota Auris/Hybrid (Ukp)

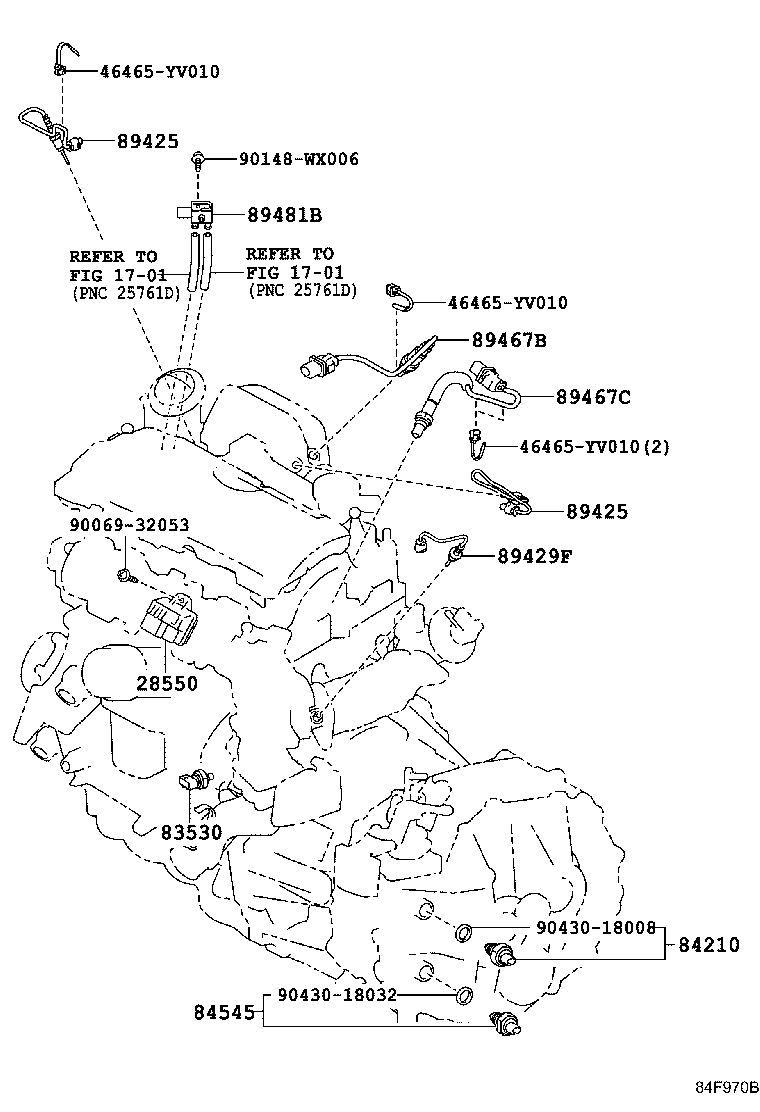

ILLUST NO. 1 OF 7(1505- )WWE185
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28550 - CONTROLLER ASSY, GLOW PLUG | ||||
| 28550-WA020 |
1WW..WWE185 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-WA011 |
WWE185 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
NDE180,NRE18#,WWE185,ZRE185..6F |
1 | ||
| 84545 - SWITCH, NEUTRAL POSITION | ||||
| 84545-52010 |
WWE185 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-YV010 |
WWE185 |
2 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-YV010 |
WWE185 |
2 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-WA010 |
WWE185 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-YV010 |
WWE185 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-YV020 |
WWE185 |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-YV020 |
WWE185 |
1 | ||
| Common parts | ||||
| 46465-YV010 | ||||
| 90069-32053 | ||||
| 90148-WX006 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| Linked diagrams | ||||
| 1701 | ||||
ILLUST NO. 5 OF 7(1505- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-02200 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02080 |
WWE185..G HEADLAMP-HALOGEN |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02300 |
WWE185 |
1 | ||
| 84490D - SWITCH ASSY, IPA MAIN | ||||
| 84490-02090 |
WWE185..G |
1 | ||
| 84490-02090 |
WWE185..G LIGHT GRADE |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-12102 |
WWE185..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE) |
1 | ||
| 84751-12102 |
WWE185..G |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-12112 |
WWE185..G |
1 | ||
| 84751-12112 |
WWE185..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE) |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-02010 |
WWE185..G |
1 | ||
| 84770-02010 |
WWE185..G PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02101 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G |
1 | ||
| 84870-02090C0 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G LIGHT GRADE,BLACK |
1 | ||
| 84870-02090C0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02101 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G |
1 | ||
| 84870-02090C0 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G LIGHT GRADE,BLACK |
1 | ||
| 84870-02090C0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-02140 |
WWE185..G LIGHT GRADE |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02110 |
WWE185 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D021 |
WWE185 |
1 | ||
| 85530-0D020 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D021 |
WWE185 |
1 | ||
| 85530-0D020 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-0D021 |
WWE185 |
1 | ||
| 85530-0D020 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12060 |
WWE185 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12060 |
WWE185 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-12050C0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK,TRIM2# |
1 | ||
| 85535-12050C0 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G BLACK,TRIM2#,4# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02100 |
NDE180,NRE185,WWE185,ZRE185..G |
1 | ||
| 89611-02100 |
NDE180,NRE185,WWE185,ZRE185..G LIGHT GRADE&SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611-02102 |
WWE185..G |
1 | ||
| 89611-02101 |
NDE180,NRE185,WWE185,ZRE185..G LIGHT GRADE&SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611-02102 |
WWE185..G LIGHT GRADE&SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611-02101 |
NDE180,NRE185,WWE185,ZRE185..G |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02100 |
NDE180,NRE185,WWE185,ZRE185..G |
1 | ||
| 89611-02100 |
NDE180,NRE185,WWE185,ZRE185..G LIGHT GRADE&SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611-02102 |
WWE185..G |
1 | ||
| 89611-02101 |
NDE180,NRE185,WWE185,ZRE185..G LIGHT GRADE&SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611-02102 |
WWE185..G LIGHT GRADE&SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611-02101 |
NDE180,NRE185,WWE185,ZRE185..G |
1 | ||
| Linked diagrams | ||||
| 8435 | ||||
ILLUST NO. 2 OF 7(1505- )WWE185
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28601-26030 |
1WW..WWE185 |
1 | ||
| 28850B - COMPUTER ASSY, ALTERNATOR CONTROL | ||||
| 28850-37010 |
1WW..WWE185 |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90119-W0185 | ||||
| 90178-W0024 | ||||

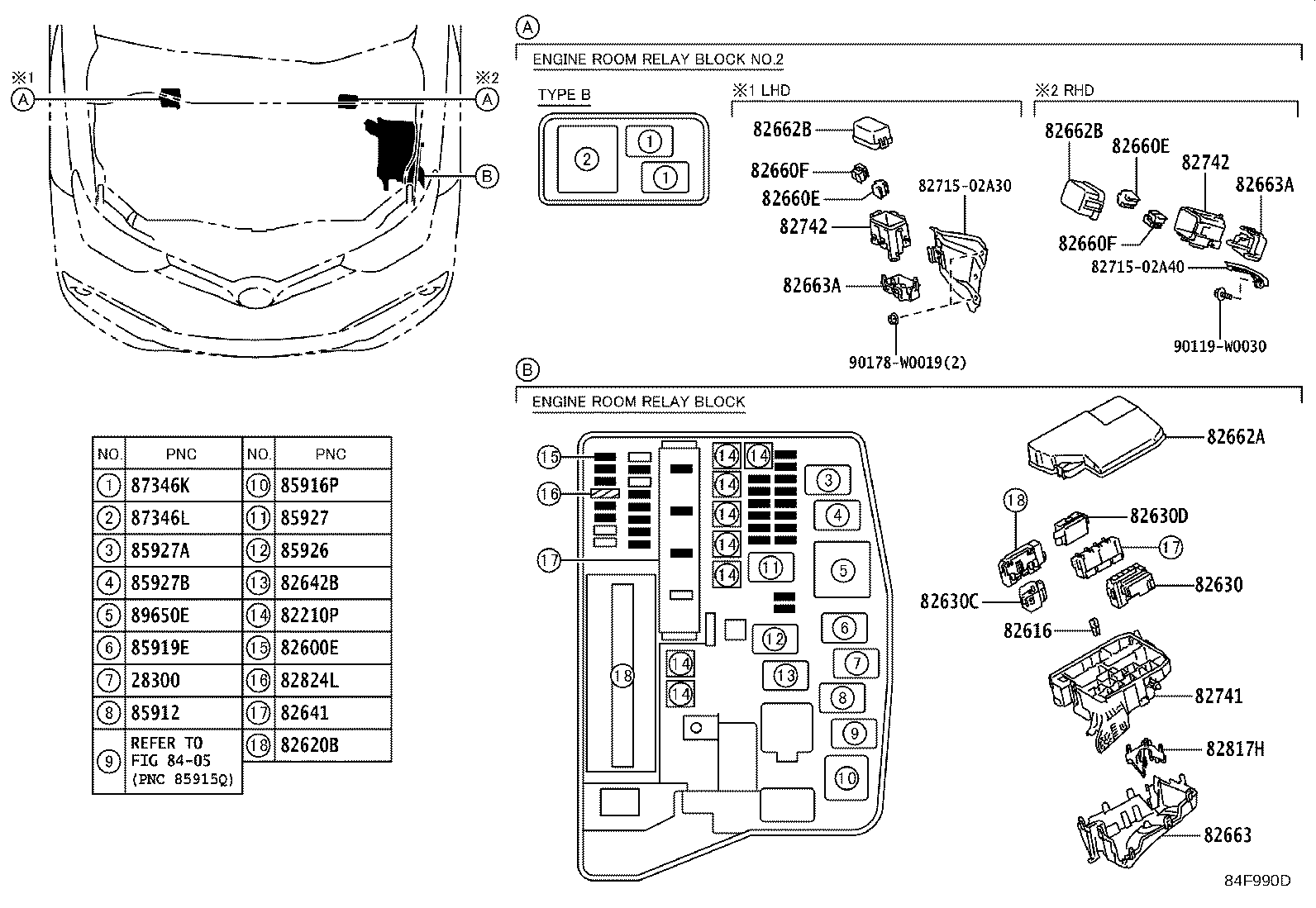

ILLUST NO. 3 OF 7(1505-1610)WWE185
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1WW..WWE185 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08286 |
NDE180,WWE185 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08296 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 80A,TERM.:FEMALE,BLK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
WWE185 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0F020 |
WWE185 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-02030 |
WWE185 |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-0F020 |
WWE185 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-02020 |
WWE185 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
WWE185 |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90080-87021 |
WWE185 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
WWE185 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
WWE185 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
WWE185..RHD;WWE185..LHD..G |
2 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
WWE185..RHD;WWE185..LHD..G |
2 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02A80 |
WWE185 |
1 | ||
| 82662-02A81 |
WWE185 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02580 |
WWE185 ADDITIONAL HEATER-WITHOUT |
1 | ||
| 82662-02580 |
WWE185 |
1 | ||
| 82662-02580 |
WWE185 LIGHT GRADE |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02580 |
WWE185 ADDITIONAL HEATER-WITHOUT |
1 | ||
| 82662-02580 |
WWE185 |
1 | ||
| 82662-02580 |
WWE185 LIGHT GRADE |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02050 |
WWE185 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
WWE185 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
WWE185 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0F030 |
WWE185 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12080 |
WWE185 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12080 |
WWE185 |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-02450 |
WWE185 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
WWE185 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87020 |
WWE185 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
WWE185 |
1 | ||
| 85919E - RELAY, STOP LAMP | ||||
| 90080-87020 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87021 |
WWE185 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87021 |
WWE185 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87020 |
WWE185 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90080-87021 |
WWE185 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90080-87021 |
NDE180,WWE185..G,N,S LIGHT GRADE&AIR CONDITIONER-WITHOUT,TYPE B:REFER ILLUST. |
2 | ||
| 90080-87021 |
NDE180,WWE185 TYPE B:REFER ILLUST. |
2 | ||
| 90080-87021 |
NDE180,WWE185 ADDITIONAL HEATER-WITHOUT,TYPE B:REFER ILLUST. |
2 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90080-87030 |
NDE180,WWE185 TYPE B:REFER ILLUST. |
1 | ||
| 90080-87030 |
NDE180,WWE185..G,N,S LIGHT GRADE&AIR CONDITIONER-WITHOUT,TYPE B:REFER ILLUST. |
1 | ||
| 90080-87030 |
NDE180,WWE185 ADDITIONAL HEATER-WITHOUT,TYPE B:REFER ILLUST. |
1 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90080-87030 |
WWE185 |
1 | ||
| Common parts | ||||
| 82715-02A30 | ||||
| 82715-02A40 | ||||
| 90119-W0030 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 8405 | ||||

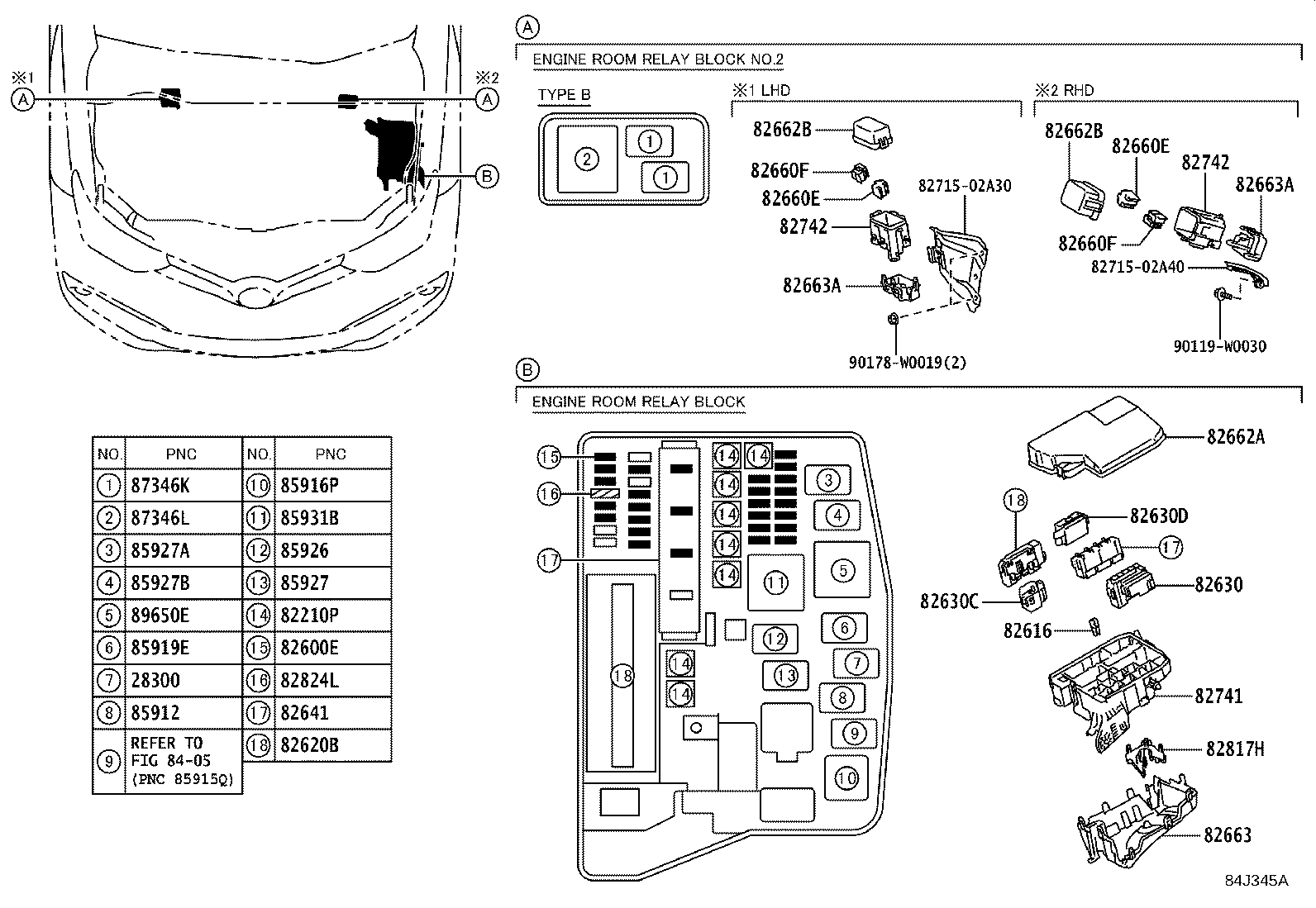

ILLUST NO. 3 OF 7(1610- )WWE185
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1WW..WWE185 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08286 |
NDE180,WWE185 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08296 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 80A,TERM.:FEMALE,BLK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
WWE185 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0F020 |
WWE185 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-02030 |
WWE185 |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-0F020 |
WWE185 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-02020 |
WWE185 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
WWE185 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
WWE185 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
WWE185 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
WWE185..RHD;WWE185..LHD..G |
2 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
WWE185..RHD;WWE185..LHD..G |
2 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02A80 |
WWE185 |
1 | ||
| 82662-02A81 |
WWE185 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02580 |
WWE185 ADDITIONAL HEATER-WITHOUT |
1 | ||
| 82662-02580 |
WWE185 |
1 | ||
| 82662-02580 |
WWE185 LIGHT GRADE |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02580 |
WWE185 ADDITIONAL HEATER-WITHOUT |
1 | ||
| 82662-02580 |
WWE185 |
1 | ||
| 82662-02580 |
WWE185 LIGHT GRADE |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02050 |
WWE185 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
WWE185 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
WWE185 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0F030 |
WWE185 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12080 |
WWE185 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12080 |
WWE185 |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-02450 |
WWE185 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
WWE185 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87020 |
WWE185 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
WWE185 |
1 | ||
| 85919E - RELAY, STOP LAMP | ||||
| 90080-87020 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87021 |
WWE185 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87021 |
WWE185 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87020 |
WWE185 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90080-87021 |
WWE185 |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90080-87030 |
WWE185 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90080-87021 |
NDE180,WWE185..G,N,S LIGHT GRADE&AIR CONDITIONER-WITHOUT,TYPE B:REFER ILLUST. |
2 | ||
| 90080-87021 |
NDE180,WWE185 TYPE B:REFER ILLUST. |
2 | ||
| 90080-87021 |
NDE180,WWE185 ADDITIONAL HEATER-WITHOUT,TYPE B:REFER ILLUST. |
2 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90080-87030 |
NDE180,WWE185 TYPE B:REFER ILLUST. |
1 | ||
| 90080-87030 |
NDE180,WWE185..G,N,S LIGHT GRADE&AIR CONDITIONER-WITHOUT,TYPE B:REFER ILLUST. |
1 | ||
| 90080-87030 |
NDE180,WWE185 ADDITIONAL HEATER-WITHOUT,TYPE B:REFER ILLUST. |
1 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90080-87030 |
WWE185 |
1 | ||
| Common parts | ||||
| 82715-02A30 | ||||
| 82715-02A40 | ||||
| 90119-W0030 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
