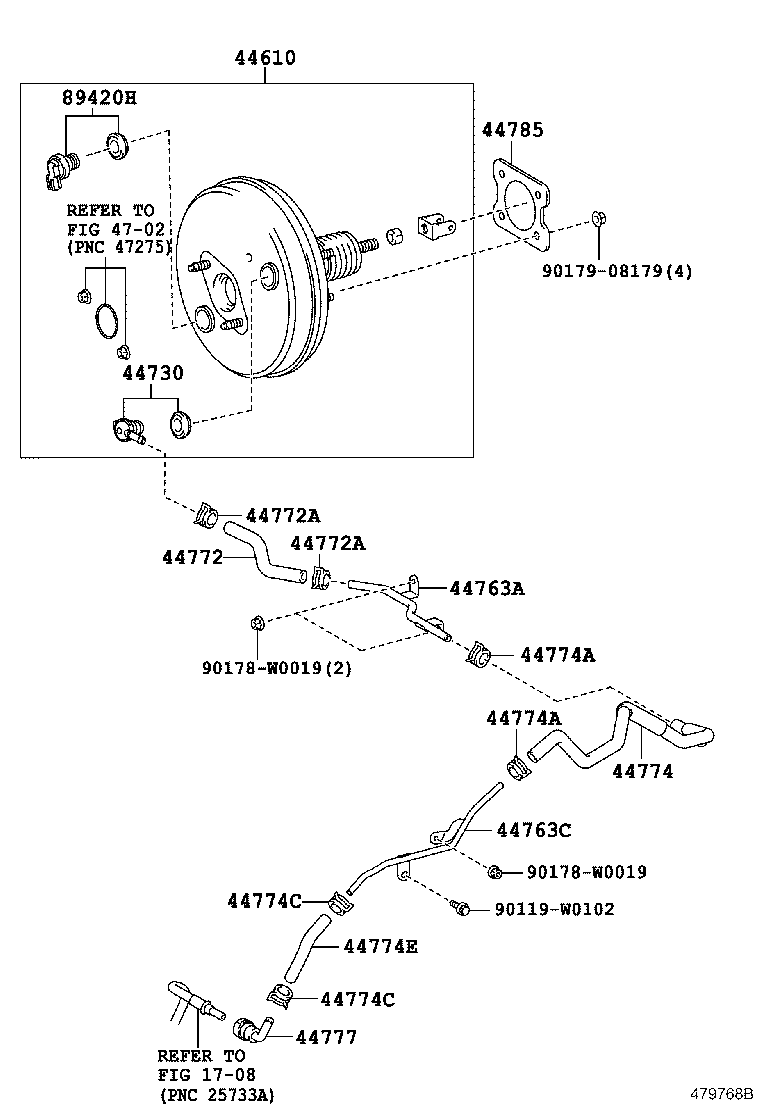

Toyota Auris/hybrid (ukp) WWE185 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-09D60	WWE185..RHD	05/2015 - 04/2018	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-09020	WWE185	05/2015 - 04/2018	1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-64020	WWE185..RHD	05/2015 - 04/2018	1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-64030	WWE185	05/2015 - 04/2018	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-64020	WWE185..RHD	05/2015 - 04/2018	1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014	WWE185	05/2015 - 04/2018	2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014	WWE185	05/2015 - 04/2018	2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-64060	WWE185..RHD	05/2015 - 04/2018	1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014	WWE185	05/2015 - 04/2018	2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014	WWE185	05/2015 - 04/2018	2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014	WWE185..RHD	05/2015 - 04/2018	2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014	WWE185..RHD	05/2015 - 04/2018	2
44774E - HOSE, UNION TO CONNECTOR TUBE
44771-64010	WWE185..RHD	05/2015 - 04/2018	1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-64010	WWE185	05/2015 - 04/2018	1
44785 - GASKET, BRAKE BOOSTER
44785-05020	WWE185	05/2015 - 04/2018	1
89420H - SENSOR ASSY, VACUUM
89421-09010	WWE185	05/2015 - 04/2018	1
Common parts
90119-W0102
90178-W0019
90179-08179
Linked diagrams
1708
4702

WWE185R-DHFGXW (2015)
