WWE185L-DWFSXW (2015)
Toyota Auris/Hybrid (Ukp)
Production
May 2015
-
Apr 2018
Engine
1WW
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1505- )1WW

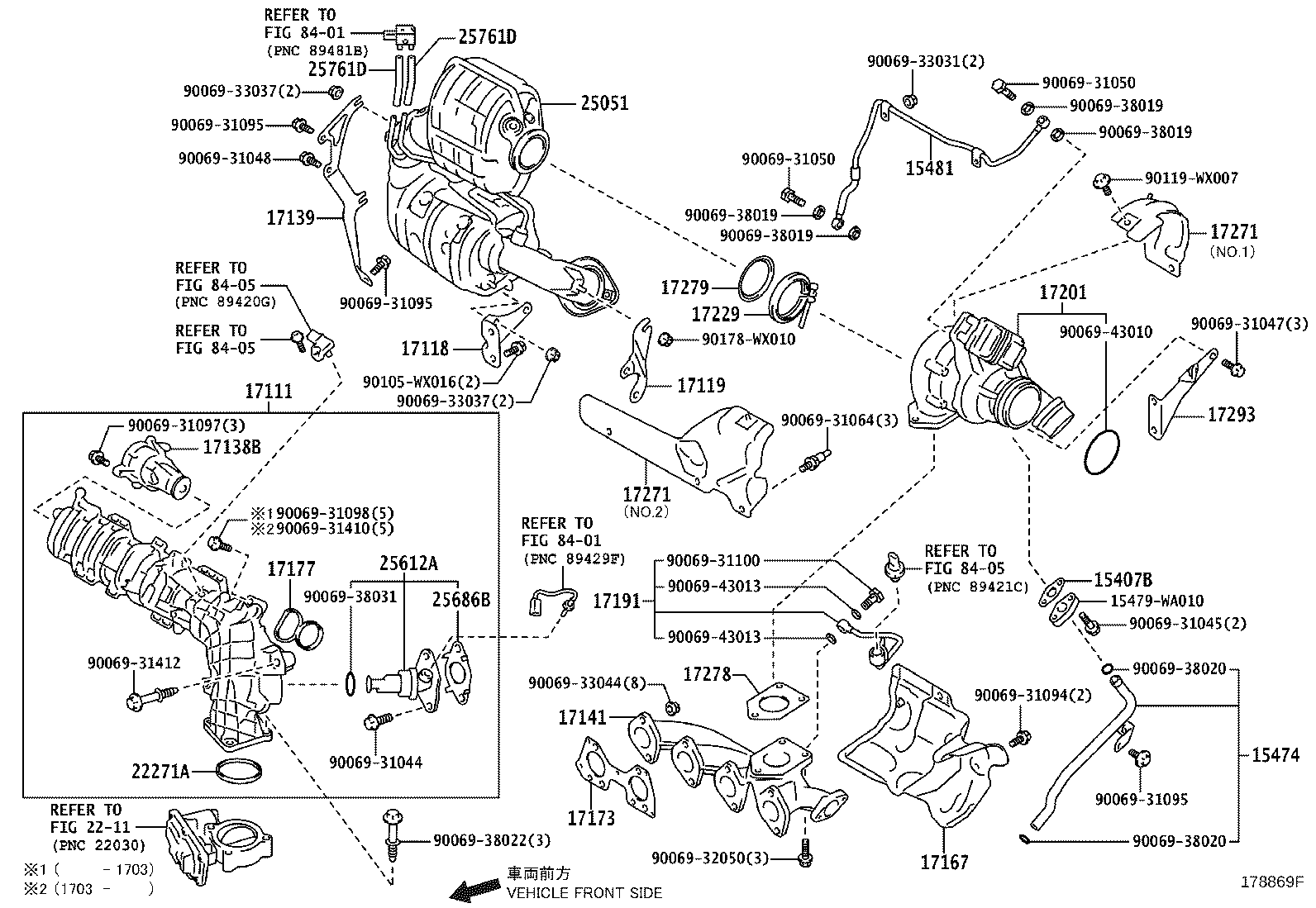

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 15471-WA010 |
1WW..WWE185 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-WA010 |
1WW..WWE185 |
1 | ||
| 15481 - PIPE, TURBO OIL, NO.1 | ||||
| 15481-WA020 |
1WW..WWE185 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-WA020 |
1WW..WWE185 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-YV010 |
1WW..WWE185 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17119-YV010 |
1WW..WWE185 |
1 | ||
| 17138B - STAY, INTAKE MANIFOLD | ||||
| 17138-WA010 |
1WW..WWE185 |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-WA020 |
1WW..WWE185 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17104-WA020 |
1WW..WWE185 |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-WA020 |
1WW..WWE185 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-WA010 |
1WW..WWE185 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-WA020 |
1WW..WWE185 |
4 | ||
| 17191 - PIPE, EXHAUST MANIFOLD, NO.1 | ||||
| 17191-WA010 |
1WW..WWE185 |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-YV030 |
1WW..WWE185 |
1 | ||
| 17229 - BAND, V | ||||
| 17229-YV010 |
1WW..WWE185 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-WA020 |
1WW..WWE185 NO.2 |
1 | ||
| 17271-YV020 |
1WW..WWE185 NO.1 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-WA020 |
1WW..WWE185 NO.2 |
1 | ||
| 17271-YV020 |
1WW..WWE185 NO.1 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-WA010 |
1WW..WWE185 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-YV010 |
1WW..WWE185 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-WA020 |
1WW..WWE185 |
1 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-WA020 |
1WW..WWE185 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-YV030 |
1WW..WWE185 *114=TOYOTA/*386/Y |
1 | ||
| 25612A - PIPE, EGR, NO.2 | ||||
| 25612-WA020 |
1WW..WWE185 |
1 | ||
| 25686B - GASKET, EGR COOLER, NO.2 | ||||
| 25686-WA010 |
1WW..WWE185 |
1 | ||
| 25761D - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-YV020 |
1WW..WWE185 |
2 | ||
| 25761-WA020 |
1WW..WWE185 |
2 | ||
| 25761D - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-YV020 |
1WW..WWE185 |
2 | ||
| 25761-WA020 |
1WW..WWE185 |
2 | ||
| Common parts | ||||
| 15479-WA010 | ||||
| 90069-31044 | ||||
| 90069-31045 | ||||
| 90069-31047 | ||||
| 90069-31048 | ||||
| 90069-31050 | ||||
| 90069-31064 | ||||
| 90069-31094 | ||||
| 90069-31095 | ||||
| 90069-31097 | ||||
| 90069-31098 | ||||
| 90069-31100 | ||||
| 90069-31410 | ||||
| 90069-31412 | ||||
| 90069-32050 | ||||
| 90069-33031 | ||||
| 90069-33037 | ||||
| 90069-33044 | ||||
| 90069-38019 | ||||
| 90069-38020 | ||||
| 90069-38022 | ||||
| 90069-38031 | ||||
| 90069-43010 | ||||
| 90069-43013 | ||||
| 90105-WX016 | ||||
| 90119-WX007 | ||||
| 90178-WX010 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||
| 8405 | ||||
