WWE185L-DHFSXW (2015)
Toyota Auris/Hybrid (Ukp)
Production
May 2015
-
Apr 2018
Engine
1WW
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1505- )1WW

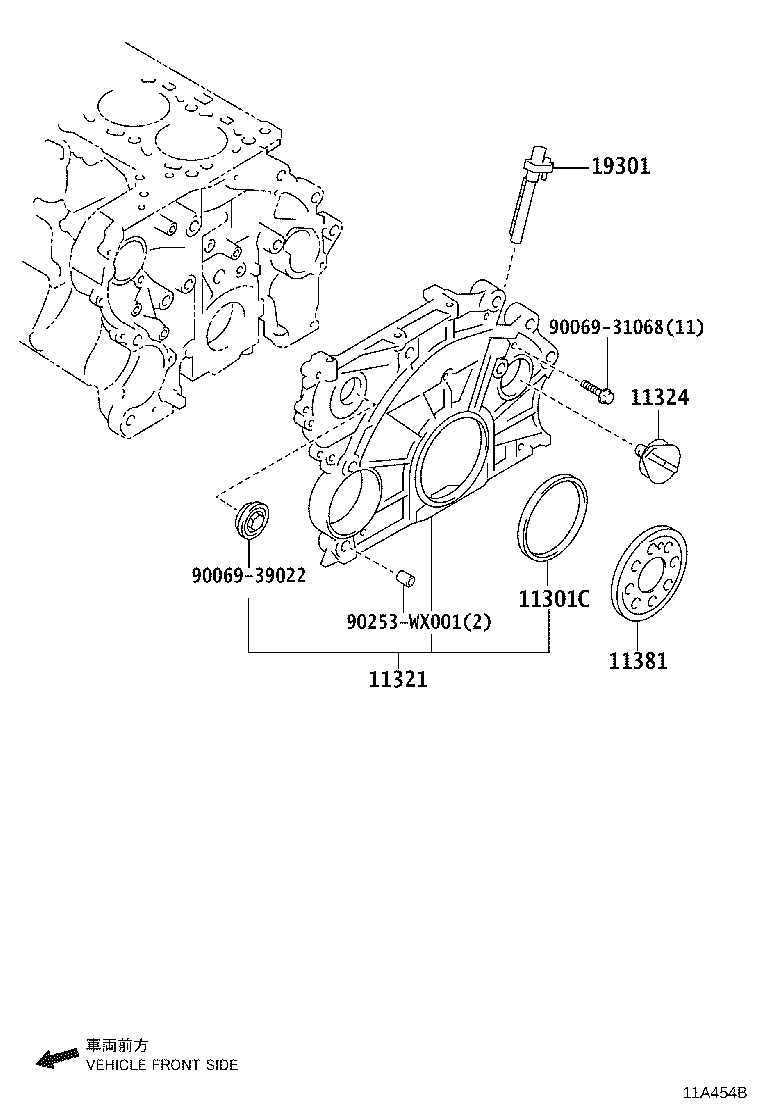

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90069-38025 |
1WW..WWE185 |
1 | ||
| 11321 - CASE, TIMING GEAR | ||||
| 11321-WA010 |
1WW..WWE185 |
1 | ||
| 11324 - PLATE, TIMING CHAIN COVER | ||||
| 11324-WA010 |
1WW..WWE185 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-WA010 |
1WW..WWE185 |
1 | ||
| 11381-WA011 |
1WW..WWE185 |
1 | ||
| 19301 - SENSOR ASSY, CRANK POSITION | ||||
| 19301-WA010 |
1WW..WWE185 |
1 | ||
| Common parts | ||||
| 90069-31068 | ||||
| 90069-39022 | ||||
| 90253-WX001 | ||||
