Toyota Auris/hybrid (ukp) NRE185 VACUUM PIPING

NRE185R-DWFSZW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018

Engine 8NRFTS

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

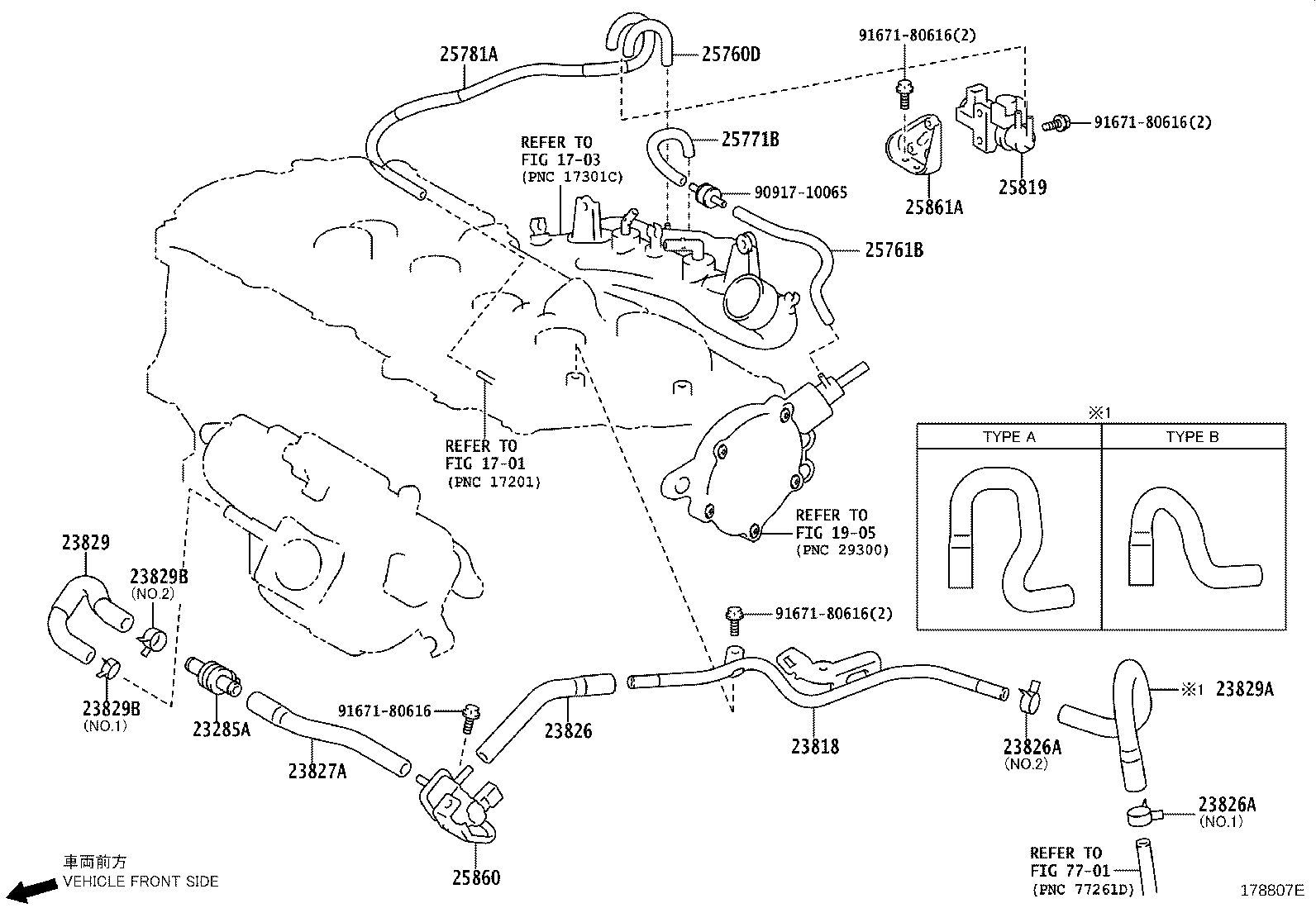

(1505-1805)8NRFTS

Click highlighted areas on diagram

Part #	Description	Period	Qty
23285A - VALVE, CHECK, NO.1
25748-36010	8NRFTS..NRE185	05/2015 - 12/2999	1
23818 - PIPE, FUEL VAPOR FEED
23818-47020	8NRFTS..NRE185	05/2015 - 12/2999	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-47090	8NRFTS..NRE185	05/2015 - 12/2999	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90467-19021	8NRFTS..NRE185 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96136-41901	8NRFTS..NRE185 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90467-19021	8NRFTS..NRE185 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96136-41901	8NRFTS..NRE185 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-47130	8NRFTS..NRE185	05/2015 - 12/2999	1
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
23829A - HOSE, FUEL VAPOR FEED
23826-0Y050	8NRFTS..NRE185 TYPE A:REFER ILLUST.	05/2015 - 03/2018	1
23826-0Y330	8NRFTS..NRE185 TYPE B:REFER ILLUST.	03/2018 - 12/2999	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96136-41901	8NRFTS..NRE185 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96136-42201	8NRFTS..NRE185 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96136-41901	8NRFTS..NRE185 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96136-42201	8NRFTS..NRE185 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
25760D - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25791-47020	8NRFTS..NRE185	09/2017 - 12/2999	1
25791-47010	8NRFTS..NRE185	05/2015 - 09/2017	1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
25771B - HOSE, VACCUM TRANSMITTING, NO.2
25771-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
25781A - HOSE, VACUUM TRANSMITTING, NO.3
25781-47050	8NRFTS..NRE185	05/2018 - 12/2999	1
25781-47010	8NRFTS..NRE185	05/2015 - 09/2017	1
25781-47020	8NRFTS..NRE185	09/2017 - 05/2018	1
25819 - VALVE ASSY, VACUUM REGULATING
25819-0W020	8NRFTS..NRE185	05/2018 - 12/2999	1
25819-0W010	8NRFTS..NRE185	05/2015 - 05/2018	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-47050	8NRFTS..NRE185	05/2015 - 12/2999	1
25861A - BRACKET, VACUUM SWITCHING VALVE, NO.2
25862-47020	8NRFTS..NRE185	05/2018 - 12/2999	1
25862-47010	8NRFTS..NRE185	05/2015 - 05/2018	1
Common parts
90917-10065
91671-80616
Linked diagrams
1701
1703
1905
7701

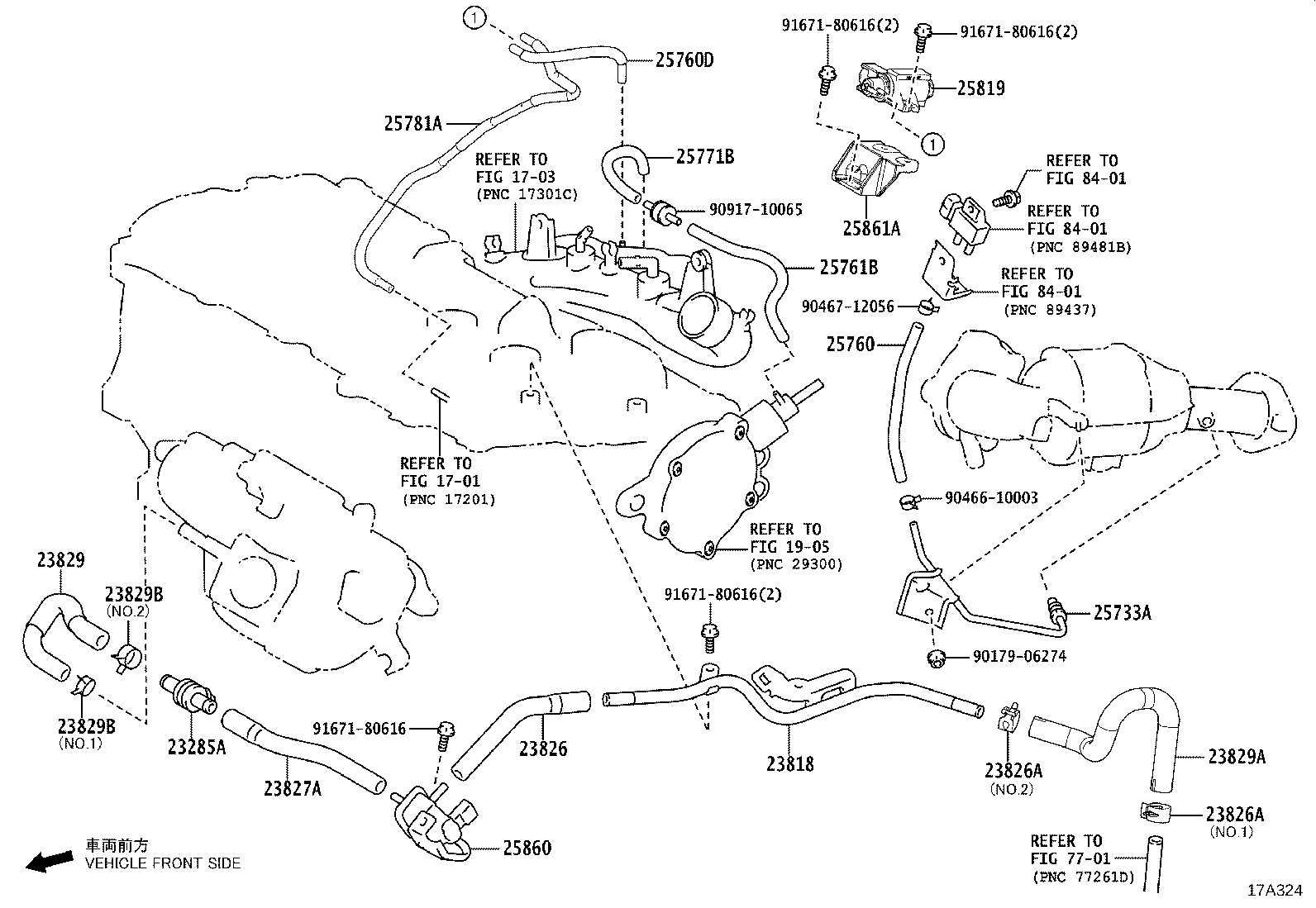

(1805- )8NRFTS

Click highlighted areas on diagram

Part #	Description	Period	Qty
23285A - VALVE, CHECK, NO.1
25748-36010	8NRFTS..NRE185	05/2015 - 12/2999	1
23818 - PIPE, FUEL VAPOR FEED
23818-47020	8NRFTS..NRE185	05/2015 - 12/2999	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-47090	8NRFTS..NRE185	05/2015 - 12/2999	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90467-19021	8NRFTS..NRE185 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96136-41901	8NRFTS..NRE185 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90467-19021	8NRFTS..NRE185 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96136-41901	8NRFTS..NRE185 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-47130	8NRFTS..NRE185	05/2015 - 12/2999	1
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
23829A - HOSE, FUEL VAPOR FEED
23826-0Y050	8NRFTS..NRE185 TYPE A:REFER ILLUST.	05/2015 - 03/2018	1
23826-0Y330	8NRFTS..NRE185 TYPE B:REFER ILLUST.	03/2018 - 12/2999	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96136-41901	8NRFTS..NRE185 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96136-42201	8NRFTS..NRE185 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96136-41901	8NRFTS..NRE185 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96136-42201	8NRFTS..NRE185 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
25733A - PIPE, VACUUM, NO.1
25733-47010	8NRFTS..NRE185	05/2018 - 12/2999	1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25761-47020	8NRFTS..NRE185	05/2018 - 12/2999	1
25760D - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25791-47020	8NRFTS..NRE185	09/2017 - 12/2999	1
25791-47010	8NRFTS..NRE185	05/2015 - 09/2017	1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
25771B - HOSE, VACCUM TRANSMITTING, NO.2
25771-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
25781A - HOSE, VACUUM TRANSMITTING, NO.3
25781-47050	8NRFTS..NRE185	05/2018 - 12/2999	1
25781-47010	8NRFTS..NRE185	05/2015 - 09/2017	1
25781-47020	8NRFTS..NRE185	09/2017 - 05/2018	1
25819 - VALVE ASSY, VACUUM REGULATING
25819-0W020	8NRFTS..NRE185	05/2018 - 12/2999	1
25819-0W010	8NRFTS..NRE185	05/2015 - 05/2018	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-47050	8NRFTS..NRE185	05/2015 - 12/2999	1
25861A - BRACKET, VACUUM SWITCHING VALVE, NO.2
25862-47020	8NRFTS..NRE185	05/2018 - 12/2999	1
25862-47010	8NRFTS..NRE185	05/2015 - 05/2018	1
Common parts
90179-06274
90466-10003
90467-12056
90917-10065
91671-80616
Linked diagrams
1701
1703
1905
7701
8401
