Toyota Auris/hybrid (ukp) NRE185 RADIATOR & WATER OUTLET

NRE185R-DWFSZW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018

Engine 8NRFTS

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1505- )8NRFTS..6F

Click highlighted areas on diagram

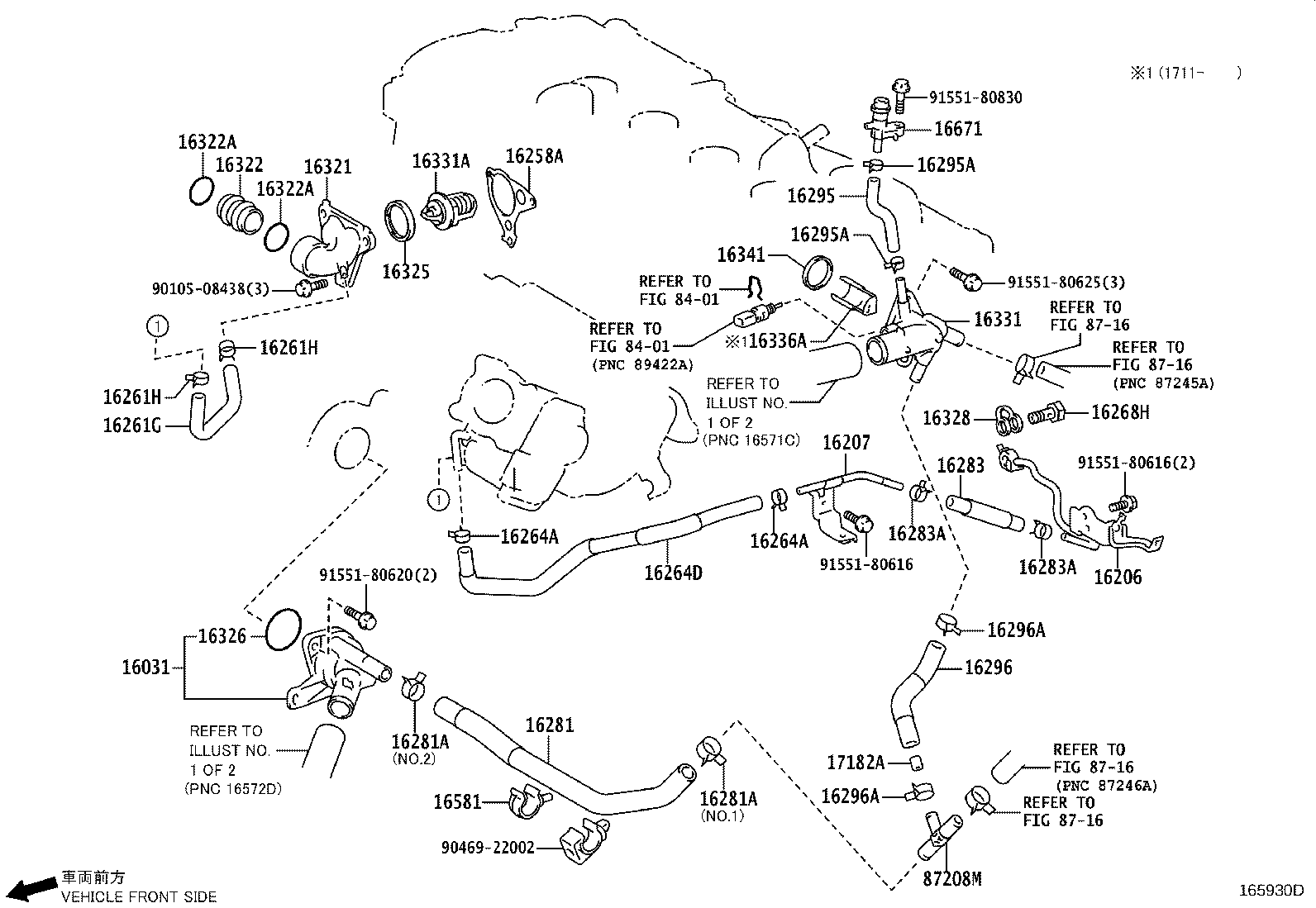

ENGINE SIDE

Part #	Description	Period	Qty
16031 - WATER INLET SUB-ASSY, W/THERMOSTAT
16031-47030	8NRFTS..NRE185	05/2015 - 12/2999	1
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2
16207-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
16258A - GASKET(FOR HEATER RETURN)
16258-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
16261G - HOSE, WATER BY-PASS, NO.1
16261-47140	8NRFTS..NRE185	05/2015 - 12/2999	1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	2
16264D - HOSE, WATER BY-PASS, NO.2
16264-47060	8NRFTS..NRE185	05/2015 - 12/2999	1
16268H - BOLT, UNION(FOR WATER BY-PASS PIPE)
90401-14003	8NRFTS..NRE185	05/2015 - 12/2999	1
16281 - HOSE, WATER BY-PASS, NO.4
16281-47060	8NRFTS..NRE185..6F	05/2015 - 12/2999	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-42501	8NRFTS..NRE185..6F NO.1:REFER ILLUST.	05/2015 - 12/2999	1
90466-W0007	8NRFTS..NRE185 (L),NO.2:SEE ILLUST	05/2015 - 12/2999	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-42501	8NRFTS..NRE185..6F NO.1:REFER ILLUST.	05/2015 - 12/2999	1
90466-W0007	8NRFTS..NRE185 (L),NO.2:SEE ILLUST	05/2015 - 12/2999	1
16283 - HOSE, WATER BY-PASS, NO.6
16283-47040	8NRFTS..NRE185	05/2015 - 12/2999	1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	2
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	2
16295 - HOSE, WATER BY-PASS, NO.7
16295-47030	8NRFTS..NRE185	05/2015 - 12/2999	1
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
90467-15022	8NRFTS..NRE185	05/2015 - 12/2999	2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
90467-15022	8NRFTS..NRE185	05/2015 - 12/2999	2
16296 - HOSE, WATER BY-PASS, NO.8
16296-47020	8NRFTS..NRE185..6F	05/2015 - 12/2999	1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96136-52101	8NRFTS..NRE185..6F	05/2015 - 12/2999	2
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96136-52101	8NRFTS..NRE185..6F	05/2015 - 12/2999	2
16321 - INLET, WATER
16321-47040	8NRFTS..NRE185	05/2015 - 12/2999	1
16322 - PIPE, WATER INLET
16322-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
16322A - RING, O(FOR WATER INLET)
96761-35031	8NRFTS..NRE185	05/2015 - 12/2999	2
16322A - RING, O(FOR WATER INLET)
96761-35031	8NRFTS..NRE185	05/2015 - 12/2999	2
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-36040	8NRFTS..NRE185	05/2015 - 12/2999	1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-47020	8NRFTS..NRE185	05/2015 - 12/2999	1
16328 - GASKET, WATER INLET PIPE
16328-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
16331 - OUTLET, WATER
16331-47050	8NRFTS..NRE185	05/2015 - 12/2999	1
16331A - THERMOSTAT
90916-03154	8NRFTS..NRE185 *WAX 78-91	05/2015 - 12/2999	1
16336A - INSERT, WATER OUTLET
16336-47010	8NRFTS..NRE185	11/2017 - 12/2999	1
16341 - GASKET, WATER OUTLET
16341-47030	8NRFTS..NRE185	05/2015 - 12/2999	1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-47080	8NRFTS..NRE185..6F	05/2015 - 12/2999	1
16671 - VALVE, WATER
16671-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
17182A - ORIFICE, WATER
17182-47020	8NRFTS..NRE185..6F	05/2015 - 12/2999	1
87208M - PIPE SUB-ASSY, WATER
87248-52010	NRE185..6F	05/2015 - 12/2999	1
Common parts
90105-08438
90469-22002
91551-80616
91551-80620
91551-80625
91551-80830
Linked diagrams
8401
8716

ILLUST NO. 3 OF 3(1505- )8NRFTS

Click highlighted areas on diagram

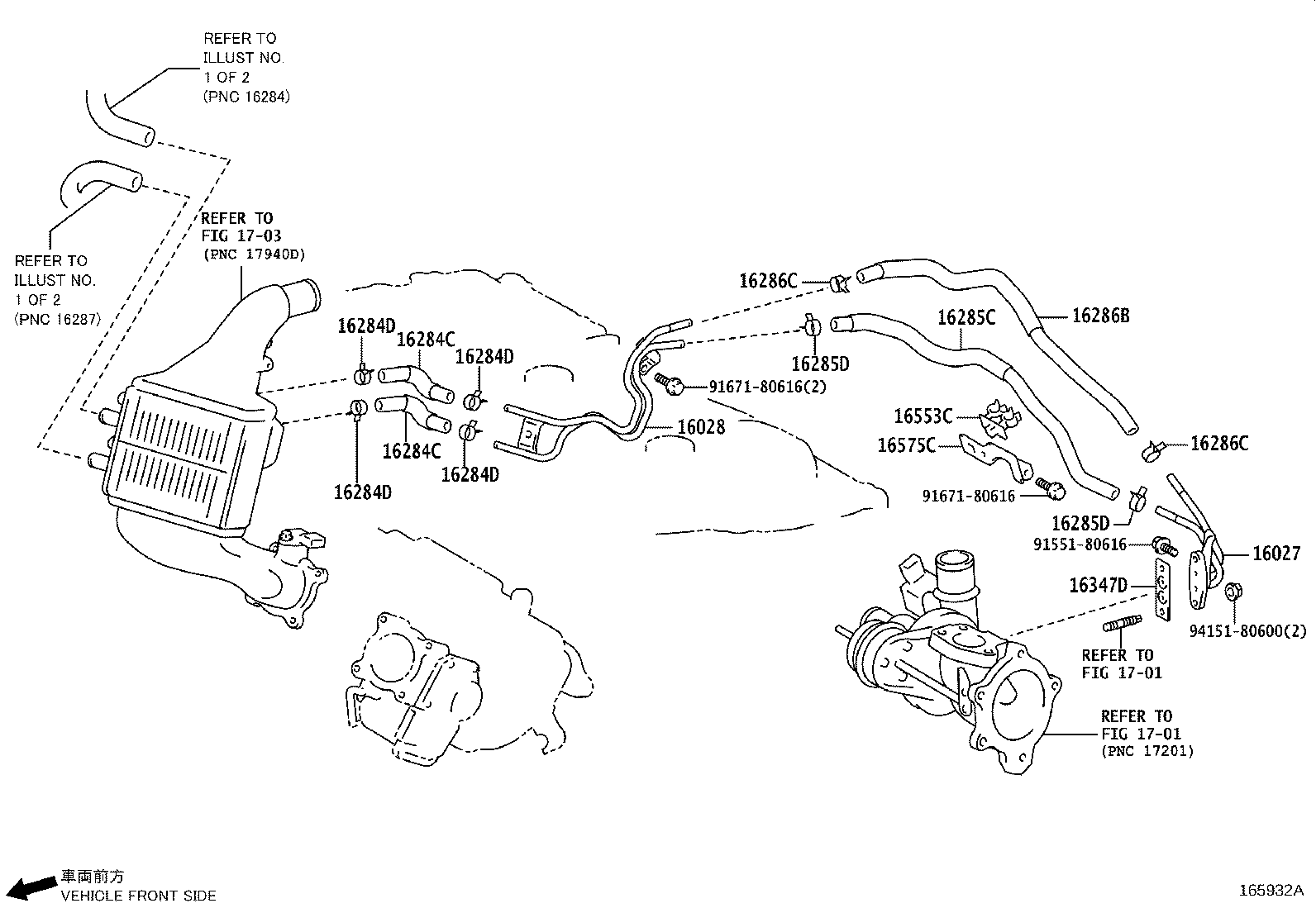

INTERCOOLER SIDE

Part #	Description	Period	Qty
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
16028 - PIPE SUB-ASSY, TURBO WATER, NO.2
16028-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
16284C - HOSE, INTERCOOLER WATER, NO.1
16284-47010	8NRFTS..NRE185	05/2015 - 12/2999	2
16284C - HOSE, INTERCOOLER WATER, NO.1
16284-47010	8NRFTS..NRE185	05/2015 - 12/2999	2
16284D - CLIP(FOR INTERCOOLER WATER HOSE NO.1)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	4
16284D - CLIP(FOR INTERCOOLER WATER HOSE NO.1)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	4
16284D - CLIP(FOR INTERCOOLER WATER HOSE NO.1)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	4
16284D - CLIP(FOR INTERCOOLER WATER HOSE NO.1)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	4
16285C - HOSE, INTERCOOLER WATER, NO.2
16285-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
16285D - CLIP(FOR INTERCOOLER WATER HOSE NO.2)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	2
16285D - CLIP(FOR INTERCOOLER WATER HOSE NO.2)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	2
16286B - HOSE, INTERCOOLER WATER, NO.3
16286-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
16286C - CLIP(FOR INTERCOOLER WATER HOSE NO.3)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	2
16286C - CLIP(FOR INTERCOOLER WATER HOSE NO.3)
96136-41501	8NRFTS..NRE185	05/2015 - 12/2999	2
16347D - GASKET, WATER BY-PASS
16347-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
16553C - CLAMP, HOSE
16581-47090	8NRFTS..NRE185	05/2015 - 12/2999	1
16575C - BRACKET, WATER HOSE CLAMP, NO.1
16575-47020	8NRFTS..NRE185	05/2015 - 12/2999	1
Common parts
91551-80616
91671-80616
94151-80600
Linked diagrams
1701
1703

ILLUST NO. 1 OF 3(1505- )8NRFTS

Click highlighted areas on diagram

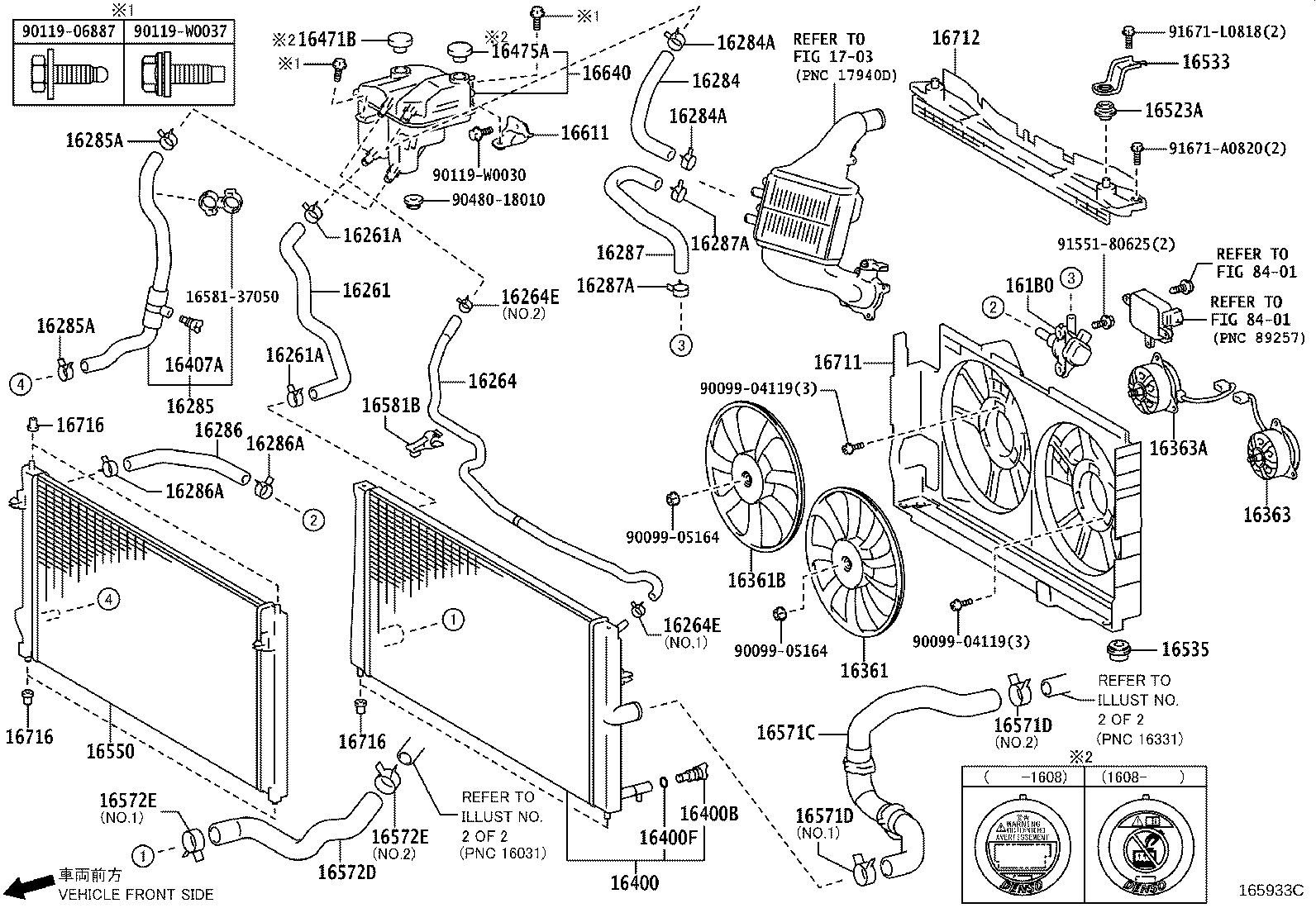

RADIATOR SIDE

Part #	Description	Period	Qty
161B0 - PUMP ASSY, ELECTRIC WATER
161B0-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
16261 - HOSE, WATER BY-PASS
16261-0Y090	8NRFTS..NRE185	05/2015 - 12/2999	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-42501	8NRFTS..NRE185..6F (J)	05/2015 - 12/2999	2
90466-W0007	8NRFTS..NRE185..6F (L)	05/2015 - 12/2999	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-42501	8NRFTS..NRE185..6F (J)	05/2015 - 12/2999	2
90466-W0007	8NRFTS..NRE185..6F (L)	05/2015 - 12/2999	2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0Y090	8NRFTS..NRE185	05/2015 - 12/2999	1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-41901	8NRFTS..NRE185 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96136-42101	1NDTV,8NRFTS..NDE180,NRE185 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-41901	8NRFTS..NRE185 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96136-42101	1NDTV,8NRFTS..NDE180,NRE185 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
16284 - HOSE, TURBO WATER, NO.1
16284-47020	8NRFTS..NRE185	05/2015 - 12/2999	1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90466-W0007	8NRFTS..NRE185 (L)	05/2015 - 12/2999	2
96136-42501	8NRFTS..NRE185 (J)	05/2015 - 12/2999	2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90466-W0007	8NRFTS..NRE185 (L)	05/2015 - 12/2999	2
96136-42501	8NRFTS..NRE185 (J)	05/2015 - 12/2999	2
16285 - HOSE, TURBO WATER, NO.2
16285-47020	8NRFTS..NRE185	05/2015 - 12/2999	1
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90466-W0007	8NRFTS..NRE185 (L)	05/2015 - 12/2999	2
96136-42501	8NRFTS..NRE185 (J)	05/2015 - 12/2999	2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90466-W0007	8NRFTS..NRE185 (L)	05/2015 - 12/2999	2
96136-42501	8NRFTS..NRE185 (J)	05/2015 - 12/2999	2
16286 - HOSE, TURBO WATER, NO.3
16286-47020	8NRFTS..NRE185	05/2015 - 12/2999	1
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
96136-42501	8NRFTS..NRE185 (J)	05/2015 - 12/2999	2
90466-W0007	8NRFTS..NRE185 (L)	05/2015 - 12/2999	2
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
96136-42501	8NRFTS..NRE185 (J)	05/2015 - 12/2999	2
90466-W0007	8NRFTS..NRE185 (L)	05/2015 - 12/2999	2
16287 - HOSE, TURBO WATER, NO.4
16287-0Y010	8NRFTS..NRE185	05/2015 - 12/2999	1
16287A - CLIP(FOR TURBO WATER HOSE NO.4)
96136-42501	8NRFTS..NRE185 (J)	05/2015 - 12/2999	2
90466-W0007	8NRFTS..NRE185 (L)	05/2015 - 12/2999	2
16287A - CLIP(FOR TURBO WATER HOSE NO.4)
96136-42501	8NRFTS..NRE185 (J)	05/2015 - 12/2999	2
90466-W0007	8NRFTS..NRE185 (L)	05/2015 - 12/2999	2
16361 - FAN
16361-0Y100	8NRFTS..NRE185	05/2015 - 12/2999	1
16361B - FAN, NO.2
16361-0Y110	8NRFTS..NRE185	05/2015 - 12/2999	1
16363 - MOTOR, COOLING FAN
16363-47030	8NRFTS..NRE185	05/2015 - 12/2999	1
16363A - MOTOR, COOLING FAN, NO.2
16363-47040	8NRFTS..NRE185	05/2015 - 12/2999	1
16400 - RADIATOR ASSY
16400-0Y140	8NRFTS..NRE185	05/2015 - 12/2999	1
16400B - PLUG, RADIATOR DRAIN COCK
16417-21280	8NRFTS..NRE185	05/2015 - 12/2999	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050	1N#,8NRFTS..NDE180,NRE18#	05/2015 - 12/2999	1
16407A - COCK SUB-ASSY, RADIATOR DRAIN
16407-64010	8NRFTS..NRE185	05/2015 - 12/2999	1
16471B - CAP, RESERVE TANK
16475-37011	1N#,8NRFTS..NDE180,NRE18#	05/2015 - 08/2016	1
16475-28140	1N#,8NRFTS..NDE180,NRE18#	08/2016 - 12/2999	1
16475A - CAP, RESERVE TANK
16475-37011	8NRFTS..NRE185	05/2015 - 08/2016	1
16475-28140	8NRFTS..NRE185	08/2016 - 12/2999	1
16523A - CUSHION, RADIATOR SUPPORT
16523-0T040	8NRFTS..NRE185	05/2015 - 12/2999	2
16533 - SUPPORT, RADIATOR, UPPER
16534-0T010	8NRFTS..NRE185	05/2015 - 12/2999	2
16535 - SUPPORT, RADIATOR, LOWER
16535-0R050	8NRFTS..NRE185	05/2015 - 12/2999	2
16550 - RADIATOR ASSY, INTERCOOLER COOLING
16550-0Y010	8NRFTS..NRE185	05/2015 - 12/2999	1
16571C - HOSE, RADIATOR, NO.1
16571-0Y140	8NRFTS..NRE185	05/2015 - 12/2999	1
16571D - CLIP, RADIATOR HOSE, NO.1
96136-43901	1N#,8NRFTS..NDE180,NRE18# NO.2:REFER ILLUST.	05/2015 - 12/2999	1
90466-W0016	1NRFE,8NRFTS..NRE18# (L),NO.1:SEE ILLUST	05/2015 - 12/2999	1
96136-44301	1NRFE,8NRFTS..NRE18# (J),NO.1:SEE ILLUST	05/2015 - 12/2999	1
16571D - CLIP, RADIATOR HOSE, NO.1
96136-43901	1N#,8NRFTS..NDE180,NRE18# NO.2:REFER ILLUST.	05/2015 - 12/2999	1
90466-W0016	1NRFE,8NRFTS..NRE18# (L),NO.1:SEE ILLUST	05/2015 - 12/2999	1
96136-44301	1NRFE,8NRFTS..NRE18# (J),NO.1:SEE ILLUST	05/2015 - 12/2999	1
16572D - HOSE, RADIATOR, NO.2
16572-0Y130	8NRFTS..NRE185	05/2015 - 12/2999	1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-W0016	1N#,8NRFTS..NDE180,NRE18# (L),NO.1:SEE ILLUST	05/2015 - 12/2999	1
96136-44301	1N#,8NRFTS..NDE180,NRE18# (J),NO.1:SEE ILLUST	05/2015 - 12/2999	1
96136-43901	1N#,8NRFTS..NDE180,NRE18# NO.2:REFER ILLUST.	05/2015 - 12/2999	1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-W0016	1N#,8NRFTS..NDE180,NRE18# (L),NO.1:SEE ILLUST	05/2015 - 12/2999	1
96136-44301	1N#,8NRFTS..NDE180,NRE18# (J),NO.1:SEE ILLUST	05/2015 - 12/2999	1
96136-43901	1N#,8NRFTS..NDE180,NRE18# NO.2:REFER ILLUST.	05/2015 - 12/2999	1
16581B - CLAMP, HOSE(FOR RADIATOR HOSE)
16581-36020	1NRFE,8NRFTS..NRE18#	05/2015 - 12/2999	1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-0Y010	8NRFTS..NRE185	05/2015 - 12/2999	1
16640 - TANK ASSY, INTERCOOLER RESERVE
16640-47010	8NRFTS..NRE185	05/2015 - 12/2999	1
16711 - SHROUD, FAN
16711-0Y100	8NRFTS..NRE185	05/2015 - 12/2999	1
16712 - SHROUD, FAN, NO.2
16712-0Y010	8NRFTS..NRE185	05/2015 - 12/2999	1
16716 - CUSHION, FAN SHROUD
16716-37010	8NRFTS..NRE185	05/2015 - 12/2999	6
16716 - CUSHION, FAN SHROUD
16716-37010	8NRFTS..NRE185	05/2015 - 12/2999	6
16716 - CUSHION, FAN SHROUD
16716-37010	8NRFTS..NRE185	05/2015 - 12/2999	6
Common parts
16581-37050
90099-04119
90099-05164
90119-06887
90119-W0030
90119-W0037
90480-18010
91551-80625
91671-A0820
91671-L0818
Linked diagrams
1703
8401

NRE185R-DWFSZW (2015)

ILLUST NO. 2 OF 3(1505- )8NRFTS..6F

ILLUST NO. 3 OF 3(1505- )8NRFTS

ILLUST NO. 1 OF 3(1505- )8NRFTS

Part Price Details
