NRE185R-DWFSZW (2015)
Toyota Auris/Hybrid (Ukp)
(1505- )8NRFTS

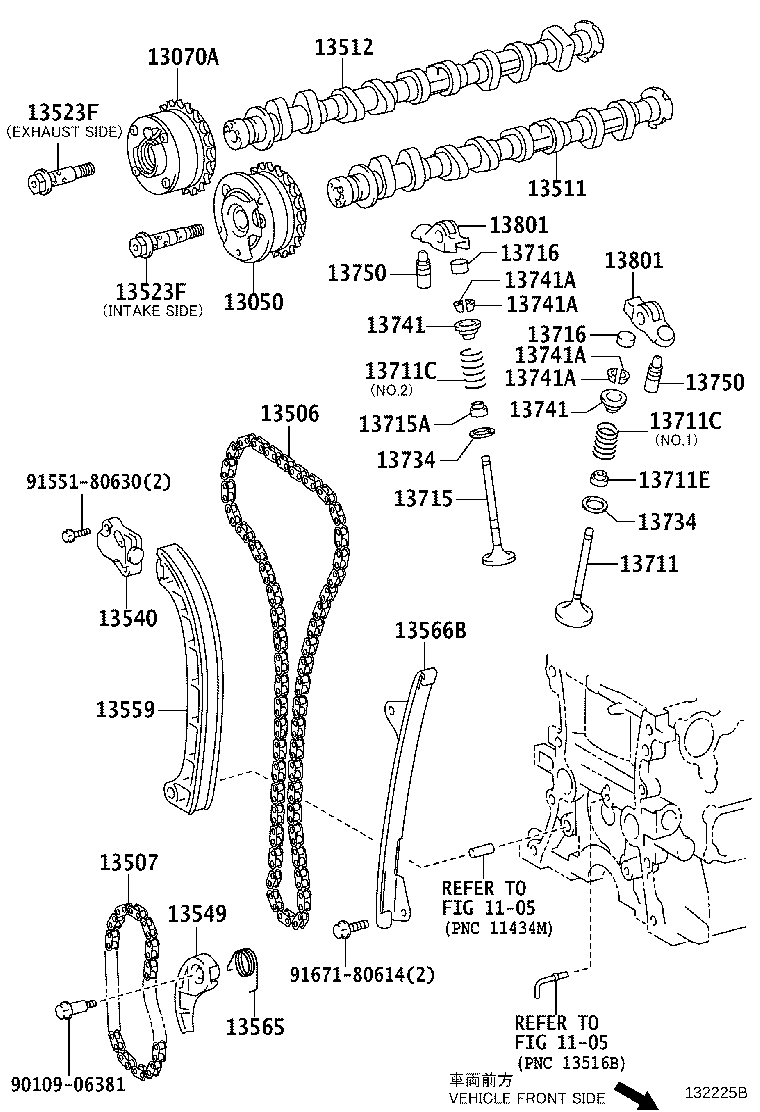

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-47030 |
8NRFTS..NRE185 |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-47030 |
8NRFTS..NRE185 |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-47040 |
8NRFTS..NRE185 |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-47010 |
8NRFTS..NRE185 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-47070 |
8NRFTS..NRE185 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-47060 |
8NRFTS..NRE185 |
1 | ||
| 13523F - BOLT(FOR CAMSHAFT TIMING GEAR) | ||||
| 135A0-47020 |
8NRFTS..NRE185 EXHAUST SIDE |
1 | ||
| 135A0-36011 |
8NRFTS..NRE185 INTAKE SIDE |
1 | ||
| 135A0-47010 |
8NRFTS..NRE185 EXHAUST SIDE |
1 | ||
| 135A0-36010 |
8NRFTS..NRE185 INTAKE SIDE |
1 | ||
| 13523F - BOLT(FOR CAMSHAFT TIMING GEAR) | ||||
| 135A0-47020 |
8NRFTS..NRE185 EXHAUST SIDE |
1 | ||
| 135A0-36011 |
8NRFTS..NRE185 INTAKE SIDE |
1 | ||
| 135A0-47010 |
8NRFTS..NRE185 EXHAUST SIDE |
1 | ||
| 135A0-36010 |
8NRFTS..NRE185 INTAKE SIDE |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-47050 |
8NRFTS..NRE185 |
1 | ||
| 13540-47060 |
8NRFTS..NRE185 |
1 | ||
| 13549 - PLATE, CHAIN TENSIONER | ||||
| 13549-47010 |
8NRFTS..NRE185 |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-0Y010 |
8NRFTS..NRE185 |
1 | ||
| 13565 - SPRING, CHAIN DAMPER | ||||
| 13565-37010 |
8NRFTS..NRE185 |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-0Y030 |
8NRFTS..NRE185 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-47010 |
1NRFE,8NRFTS..NRE18# |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-30036 |
8NRFTS..NRE185 NO.2:REFER ILLUST. |
8 | ||
| 90501-30035 |
8NRFTS..NRE185 NO.1:REFER ILLUST. |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-30036 |
8NRFTS..NRE185 NO.2:REFER ILLUST. |
8 | ||
| 90501-30035 |
8NRFTS..NRE185 NO.1:REFER ILLUST. |
8 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02126 |
8NRFTS..NRE185 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-47040 |
8NRFTS..NRE185 |
8 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02127 |
8NRFTS..NRE185 |
8 | ||
| 90913-02131 |
8NRFTS..NRE185 |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
1NRFE,8NRFTS..NRE18# |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
1NRFE,8NRFTS..NRE18# |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1NRFE,8NRFTS..NRE18# |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1NRFE,8NRFTS..NRE18# |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-36010 |
1NRFE,8NRFTS..NRE18# |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-36010 |
1NRFE,8NRFTS..NRE18# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1NRFE,8NRFTS..NRE18# |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1NRFE,8NRFTS..NRE18# |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1NRFE,8NRFTS..NRE18# |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1NRFE,8NRFTS..NRE18# |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-36020 |
8NRFTS..NRE185 |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-36020 |
8NRFTS..NRE185 |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
1NRFE,8NRFTS..NRE18# |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
1NRFE,8NRFTS..NRE18# |
16 | ||
| Common parts | ||||
| 90109-06381 | ||||
| 91551-80630 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 1105 | ||||
