NRE185R-DHFSZW (2015)
Toyota Auris/Hybrid (Ukp)
Production
May 2015
-
Nov 2018
Engine
8NRFTS
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1505- )NRE185

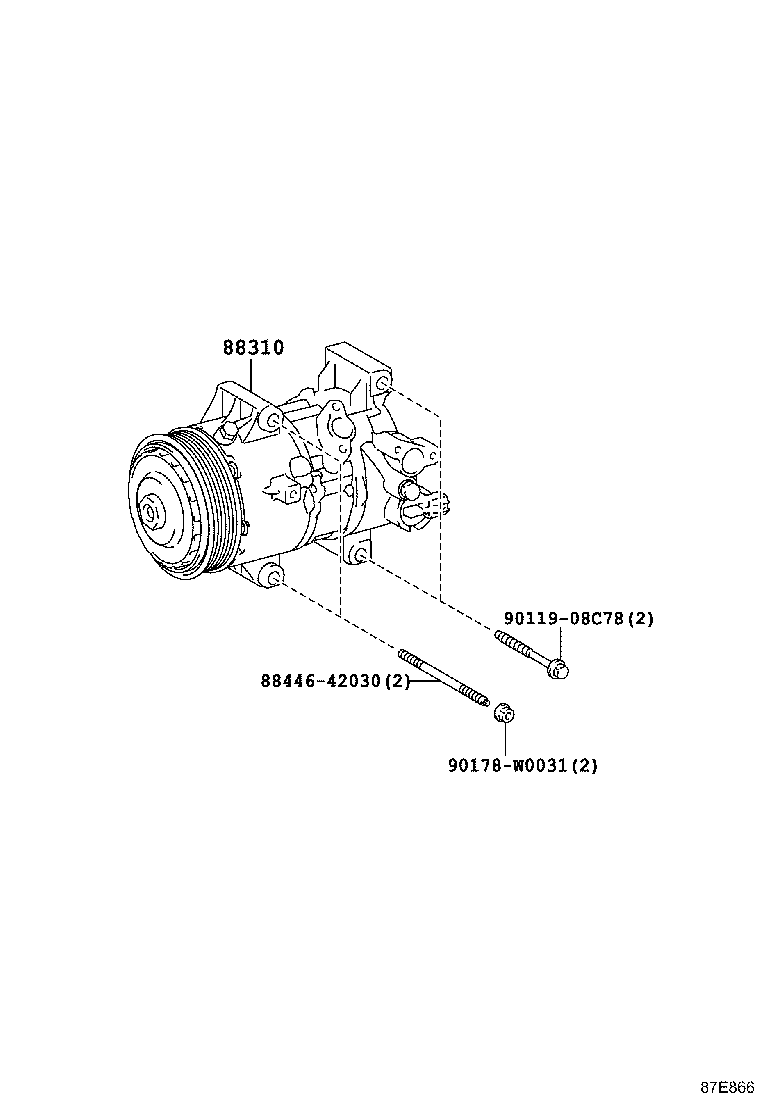

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88310 - COMPRESSOR ASSY, W/PULLEY | ||||
| 88310-02B00 |
NRE185 EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT |
1 | ||
| 88310-02B10 |
NRE185 EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE |
1 | ||
| 88310-02B10 |
NRE185 |
1 | ||
| 88310-02B10 |
NRE185 LIGHT GRADE |
1 | ||
| Common parts | ||||
| 88446-42030 | ||||
| 90119-08C78 | ||||
| 90178-W0031 | ||||
