NRE185L-DWXSZW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )NRE185

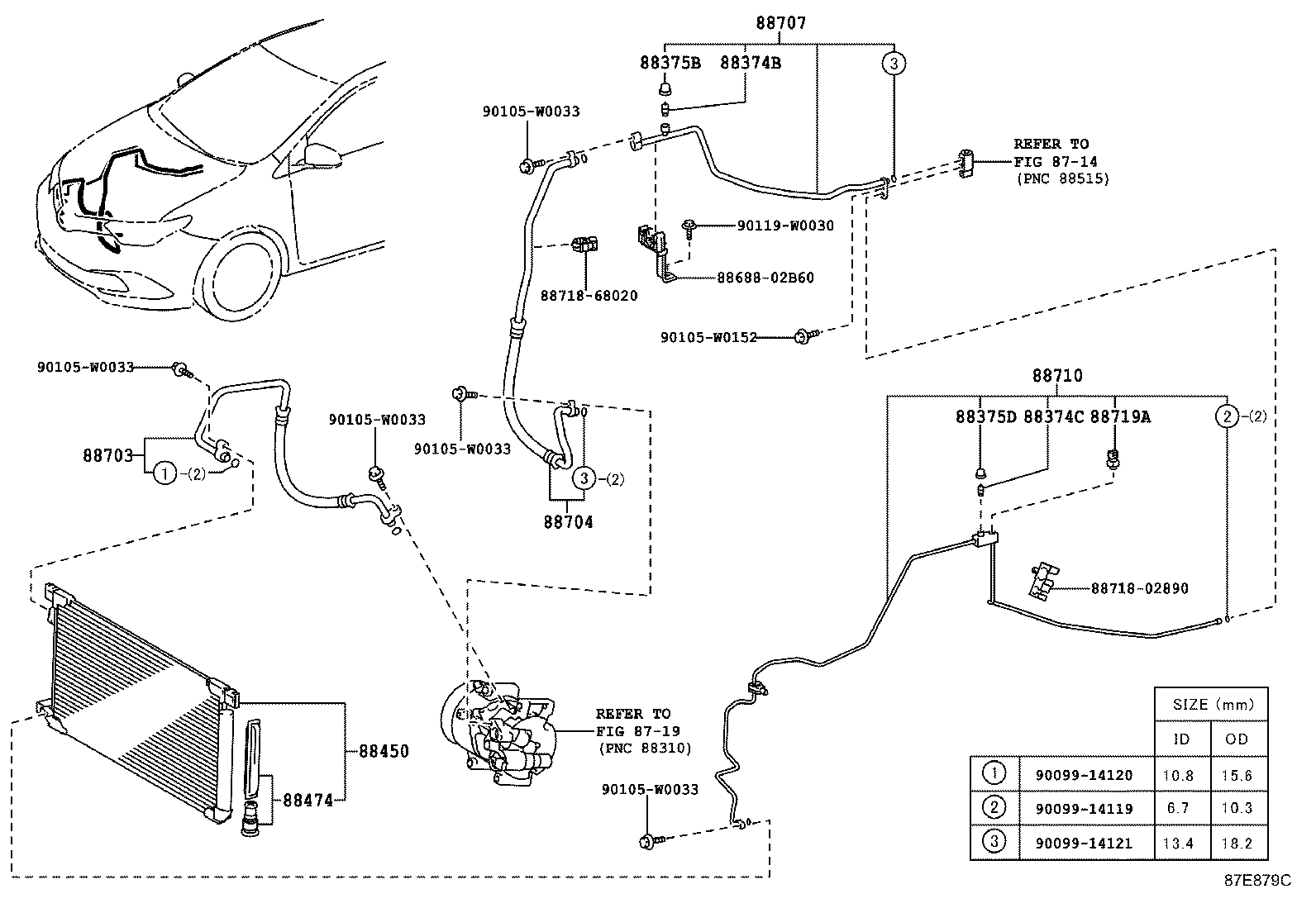

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88474 8868802B60 88703 88704 88707 88710 8871802890 8871868020 88719A 9009914119 9009914120 9009914121 90105W0033 90105W0033 90105W0033 90105W0033 90105W0033 90105W0152 90119W0030
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZRE185,ZWE186;NDE180,NRE18#,WWE185..G,N,S

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

 1
88374-30010

ZRE185;NDE180,NRE18#,WWE185..G,N,S

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

 1
88374-30010

ZRE185;NDE180,NRE18#,WWE185..G,N,S

LIGHT GRADE

 1
88374-30010

ZRE185,ZWE186;NDE180,NRE18#,WWE185..G,N,S

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ZRE185,ZWE186;NDE180,NRE18#,WWE185..G,N,S

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

 1
88374-30010

ZRE185;NDE180,NRE18#,WWE185..G,N,S

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

 1
88374-30010

ZRE185,ZWE186;NDE180,NRE18#,WWE185..G,N,S

 1
88374-30010

ZRE185;NDE180,NRE18#,WWE185..G,N,S

LIGHT GRADE

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

ZRE185,ZWE186;NDE180,NRE18#,WWE185..G,N,S

 1
88375-30310

ZRE185;NDE180,NRE18#,WWE185..G,N,S

LIGHT GRADE

 1
88375-30290

ZRE185,ZWE186;NDE180,NRE18#,WWE185..G,N,S

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

 1
88375-30310

ZRE185;NDE180,NRE18#,WWE185..G,N,S

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30320

ZRE185;NDE180,NRE18#,WWE185..G,N,S

LIGHT GRADE

 1
88375-30320

ZRE185;NDE180,NRE18#,WWE185..G,N,S

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

 1
88375-30280

ZRE185,ZWE186;NDE180,NRE18#,WWE185..G,N,S

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

 1
88375-30320

ZRE185,ZWE186;NDE180,NRE18#,WWE185..G,N,S

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02510

NRE185

 1
88450-02510

NRE185

LIGHT GRADE

 1
88450-02480

NRE185

 1
88450-02480

NRE185

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

 1
88450-02510

NRE185

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

 1
88450-02480

NRE185

LIGHT GRADE

 1
88474 - DRYER, COOLER
88474-12010

ZRE185;NRE18#,WWE185..G,N,S

 1
88474-12010

ZRE185;NRE18#,WWE185..G,N,S

LIGHT GRADE

 1
88474-12010

ZRE185;NRE18#,WWE185..G,N,S

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02B40

NRE185

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

 1
88703-02B40

NRE185

 1
88703-02B40

NRE185

LIGHT GRADE

 1
88703-02B40

NRE185

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-02B70

NRE185

 1
88704-02B70

NRE185

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

 1
88704-02B70

NRE185

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

 1
88704-02B70

NRE185

LIGHT GRADE

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-02370

NRE185

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

 1
88707-02390

NRE185

 1
88707-02390

NRE185

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

 1
88707-02390

NRE185

LIGHT GRADE

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-02B80

NRE185

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

 1
88710-02B90

NRE185

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

 1
88710-02B90

NRE185

LIGHT GRADE

 1
88710-02B90

NRE185

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ZRE185,ZWE186;NDE180,NRE18#,WWE185..G,N,S

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

 1
88719-33020

ZRE185;NDE180,NRE18#,WWE185..G,N,S

LIGHT GRADE

 1
88719-33020

ZRE185;NDE180,NRE18#,WWE185..G,N,S

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

 1
88719-33020

ZRE185,ZWE186;NDE180,NRE18#,WWE185..G,N,S

 1
Common parts
88688-02B60
88718-02890
88718-68020
90099-14119
90099-14120
90099-14121
90105-W0033
90105-W0152
90119-W0030
Linked diagrams
8714
8719
