NRE185L-DWXSZW (2015)
Toyota Auris/Hybrid (Ukp)
Production
May 2015
-
Nov 2018
Engine
8NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1505- )NRE185

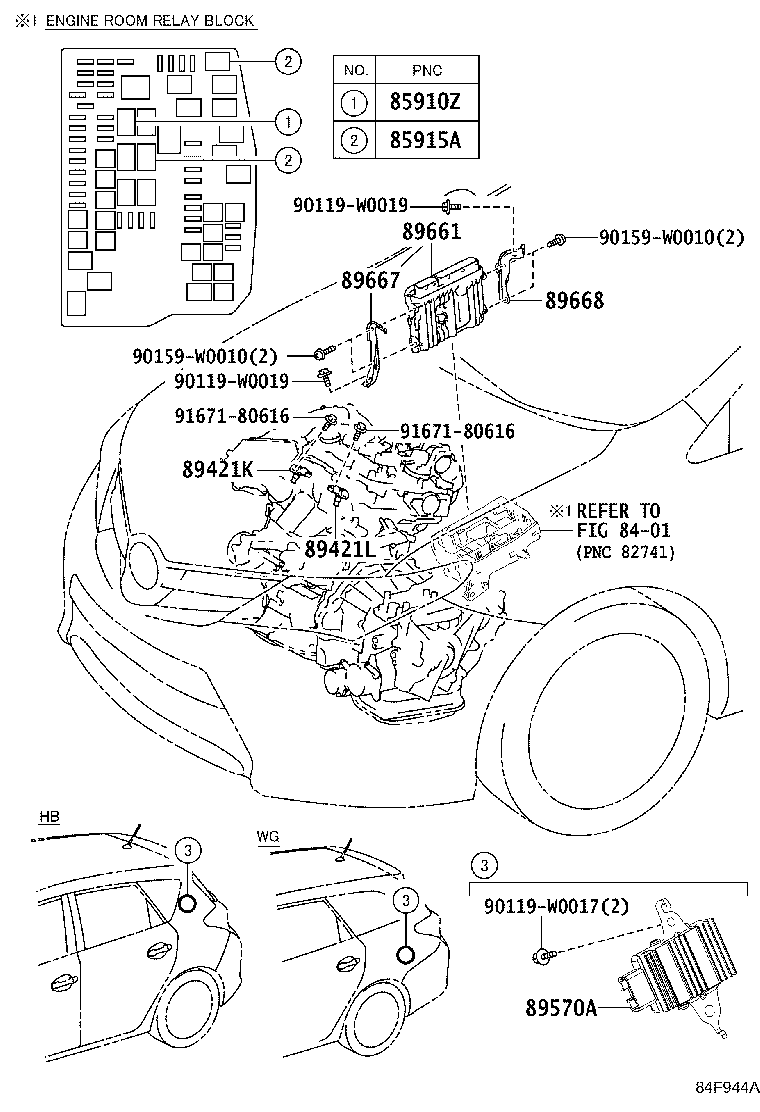

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910Z - RELAY, INJECTION (FOR EFI) | ||||
| 90080-87021 |
NRE185,ZRE185 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90080-87021 |
NRE185 |
2 | ||
| 89421K - SENSOR, TURBO PRESSURE, NO.1 | ||||
| 89421-78010 |
NRE185 |
1 | ||
| 89421L - SENSOR, TURBO PRESSURE, NO.2 | ||||
| 89421-78010 |
NRE185 |
1 | ||
| 89570A - COMPUTER ASSY, FUEL PUMP CONTROL | ||||
| 89570-12360 |
NRE185,ZRE185 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-0ZN20 |
NRE185..CVT |
1 | ||
| 89661-0ZV10 |
NRE185..CVT |
1 | ||
| 89666-02A00 |
NRE185..CVT |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-02450 |
NRE185 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-02430 |
NRE185 |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90119-W0019 | ||||
| 90159-W0010 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
