NRE185L-DWXSZW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )NRE185

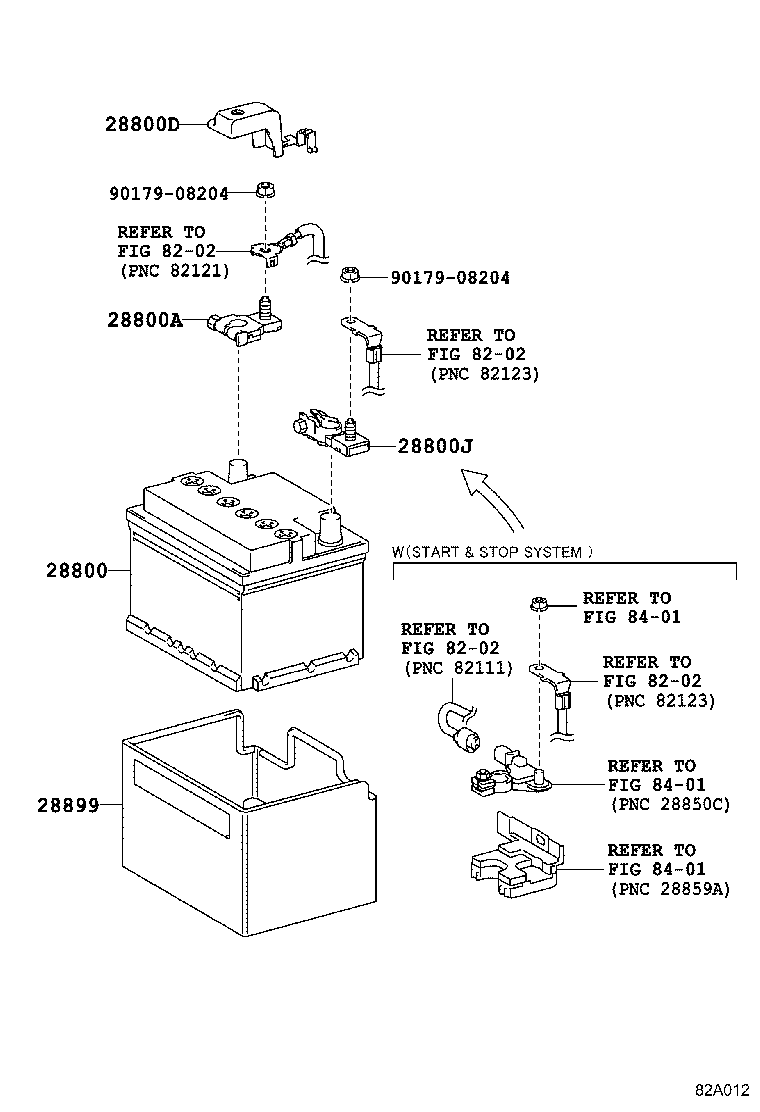

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 28899 8202 8202 8202 8202 8401 8401 8401 9017908204 9017908204
Part # Description Qty Price
28800 - BATTERY
28800-0Y060

8NRFTS..NRE185..CVT

LN2

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

1NRFE,8NRFTS,1ZRFAE..NRE18#,ZRE185

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12490

1NRFE,8NRFTS,1ZRFAE..NRE18#,ZRE185

 1
28899 - INSULATOR, BATTERY
28899-47010

8NRFTS..NRE185

 1
Common parts
90179-08204
Linked diagrams
8202
8401
