NRE185L-DWXSZW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018

Engine 8NRFTS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1505- )NRE185

Click highlighted areas on diagram

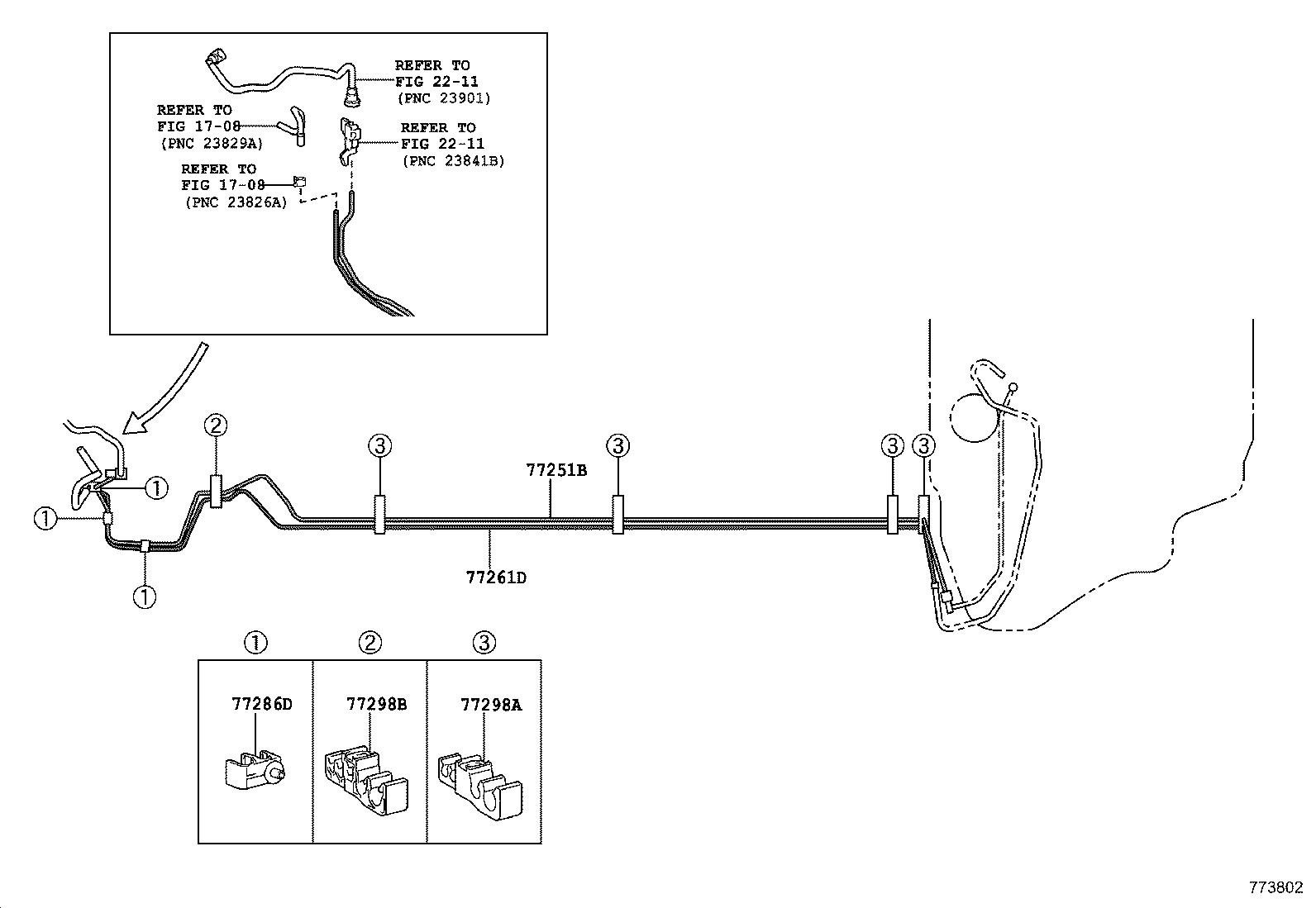

FUEL TUBE

diagram

Part #	Description	Period	Qty	Price
77251B - TUBE, FUEL MAIN
77251-02880	NRE185	05/2015 - 12/2999	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-02650	NRE185	05/2015 - 03/2018	1
77261-02651	NRE185	03/2018 - 12/2999	1
77286D - CLAMP, FUEL TUBE, NO.2
77286-75010	NRE185	05/2015 - 12/2999	3
77298A - CLAMP, FUEL TUBE, NO.4
77298-75020	NRE185	05/2015 - 12/2999	4
77298B - CLAMP, FUEL TUBE, NO.4
77298-75010	NRE185	05/2015 - 12/2999	1
Linked diagrams
1708
2211
