NRE185L-DWXSZW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )WG

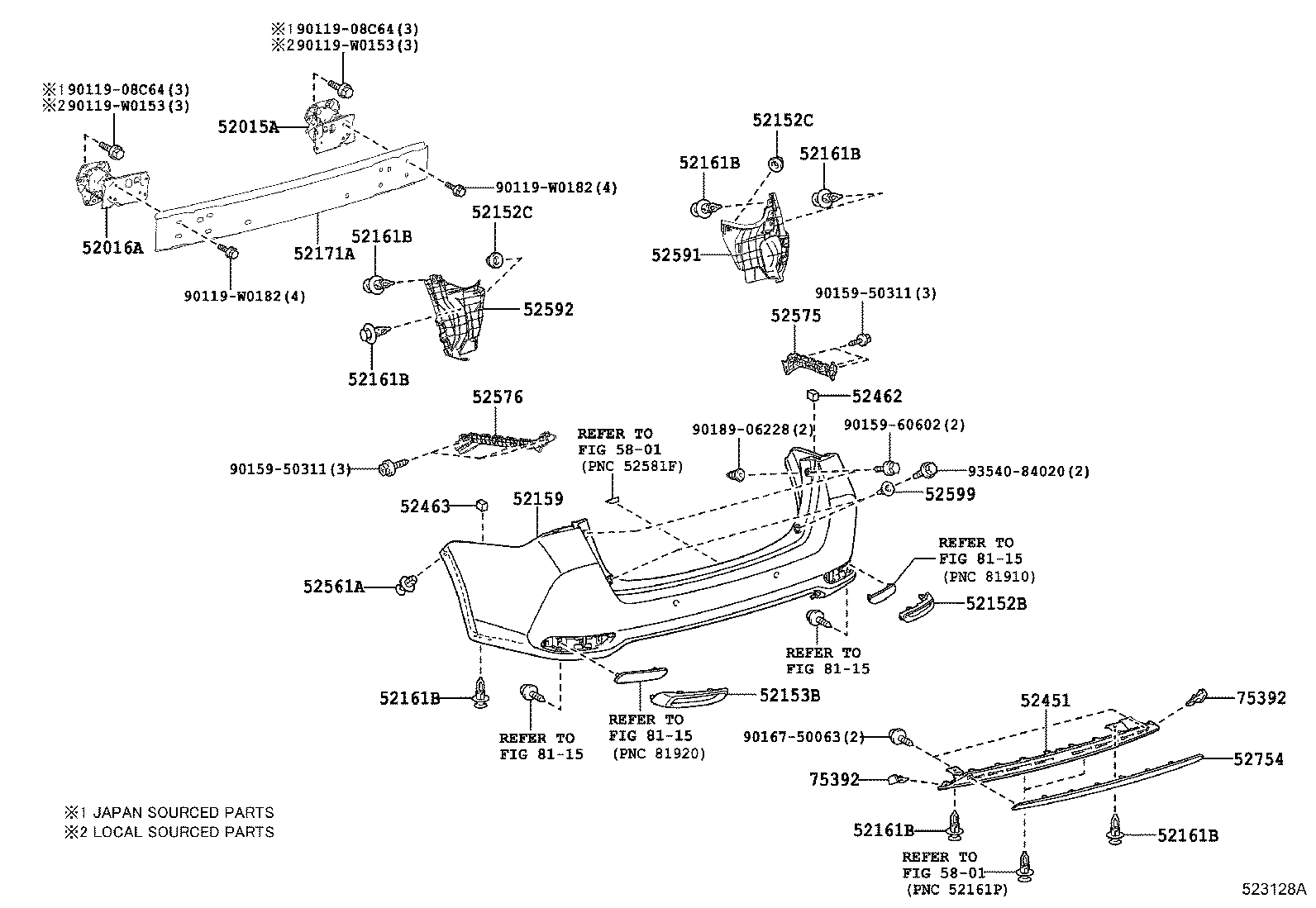

Click highlighted areas on diagram

diagram 52015A 52016A 52152B 52152C 52152C 52153B 52159 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52171A 52451 52462 52463 52561A 52575 52576 52591 52592 52599 52754 5801 5801 75392 75392 8115 8115 8115 8115 9011908C64 9011908C64 90119W0153 90119W0153 90119W0182 90119W0182 9015950311 9015950311 9015960602 9016750063 9018906228 9354084020
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-05030

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-05030

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52152B - EXTENSION, REAR BUMPER, RH
52152-02031

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52152C - CLIP, REAR BUMPER SIDE
90467-06206C0

NDE180,NRE18#,WWE185,ZRE185,ZWE186

BLACK

 2
52152C - CLIP, REAR BUMPER SIDE
90467-06206C0

NDE180,NRE18#,WWE185,ZRE185,ZWE186

BLACK

 2
52153B - EXTENSION, REAR BUMPER, LH
52153-02031

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52159 - COVER, REAR BUMPER
52159-0Z927

NDE180,NRE18#,ZRE185,ZWE186..WG..(D,N,S)

PAINT REQ.

 1
52159-0Z927

NDE180,NRE185,ZRE185,ZWE186..WG..G

PAINT REQ.,LIGHT GRADE

 1
52159-0Z926

NDE180,NRE185,ZRE185,ZWE186..WG..G

PAINT REQ.

 1
52159-0Z926

NDE180,NRE18#,ZRE185,ZWE186..WG..(N,S)

PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST)

 1
52159-0Z927

NDE180,NRE185,ZRE185,ZWE186..WG..G

PAINT REQ.,LIGHT GRADE&BUMPER REINFORCEMENT-WITHOUT

 1
52161B - PIECE, REAR BUMPER
52161-16010

NDE180,NRE18#,ZRE185,ZWE186

(J)

 1
52161-02030

NDE180,NRE18#,ZRE185,ZWE186

(L)

 1
52161B - PIECE, REAR BUMPER
52161-16010

NDE180,NRE18#,ZRE185,ZWE186

(J)

 1
52161-02030

NDE180,NRE18#,ZRE185,ZWE186

(L)

 1
52161B - PIECE, REAR BUMPER
52161-16010

NDE180,NRE18#,ZRE185,ZWE186

(J)

 1
52161-02030

NDE180,NRE18#,ZRE185,ZWE186

(L)

 1
52161B - PIECE, REAR BUMPER
52161-16010

NDE180,NRE18#,ZRE185,ZWE186

(J)

 1
52161-02030

NDE180,NRE18#,ZRE185,ZWE186

(L)

 1
52161B - PIECE, REAR BUMPER
52161-16010

NDE180,NRE18#,ZRE185,ZWE186

(J)

 1
52161-02030

NDE180,NRE18#,ZRE185,ZWE186

(L)

 1
52161B - PIECE, REAR BUMPER
52161-16010

NDE180,NRE18#,ZRE185,ZWE186

(J)

 1
52161-02030

NDE180,NRE18#,ZRE185,ZWE186

(L)

 1
52161B - PIECE, REAR BUMPER
52161-16010

NDE180,NRE18#,ZRE185,ZWE186

(J)

 1
52161-02030

NDE180,NRE18#,ZRE185,ZWE186

(L)

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-02080

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52451 - GUARD, REAR BUMPER
52453-02140

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52462 - PAD, REAR BUMPER, RH
52462-02160

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52463 - PAD, REAR BUMPER, LH
52462-02160

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-05170

NDE180,NRE18#,WWE185,ZRE185,ZWE186

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-02100

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-02100

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-02260

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-02250

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52599 - STOPPER, REAR BUMPER, UPPER
52599-05010

NDE180,NRE18#,ZRE185,ZWE186..WG

 2
52754 - MOULDING, REAR BUMPER, NO.2
52754-02041

NDE180,NRE18#,ZRE185,ZWE186..WG..(G,N,S)

LIGHT GRADE&BUMPER REINFORCEMENT-WITHOUT

 1
52754-02030

NDE180,NRE18#,ZRE185,ZWE186..WG..(G,N,S)

 1
52754-02041

NDE180,NRE18#,ZRE185,ZWE186..WG..(G,N,S)

LIGHT GRADE

 1
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

NDE180,NRE18#,ZRE185,ZWE186..WG

 2
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

NDE180,NRE18#,ZRE185,ZWE186..WG

 2
Common parts
90119-08C64
90119-W0153
90119-W0182
90159-50311
90159-60602
90167-50063
90189-06228
93540-84020
Linked diagrams
5801
8115
