NRE185L-DWXSZW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )NRE185..LHD

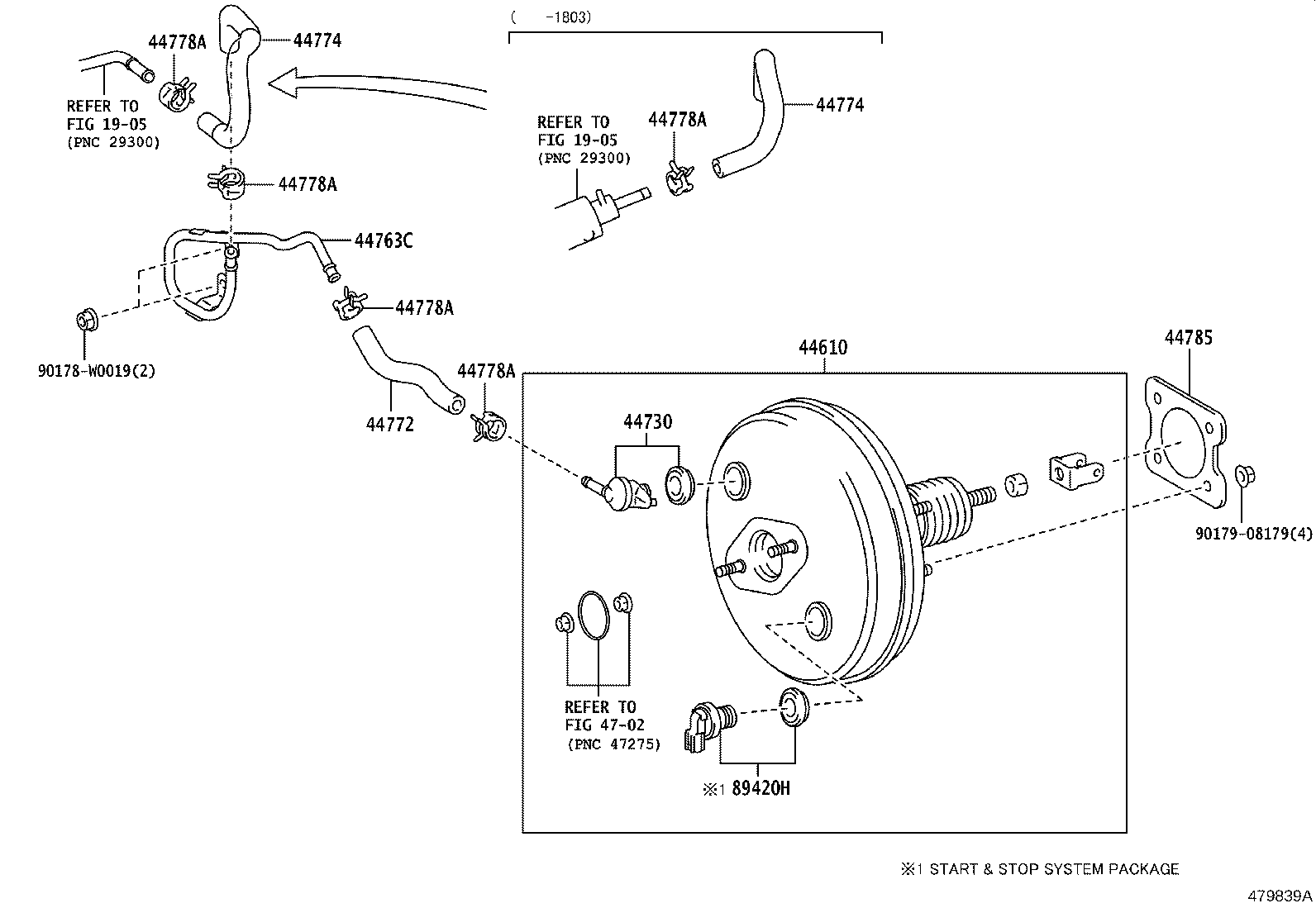

Click highlighted areas on diagram

diagram 1905 1905 44610 44730 44763C 44772 44774 44774 44778A 44778A 44778A 44778A 44778A 44785 4702 89420H 90178W0019 9017908179
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09D20

NRE185..LHD..CVT

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-09020

NDE180,NRE18#,ZRE185

 1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-12550

NRE185..LHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12580

NDE180,NRE185..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12830

NRE185..LHD

 1
44774-12A00

NRE185..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12830

NRE185..LHD

 1
44774-12A00

NRE185..LHD

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

NRE185

 4
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

NRE185

 4
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

NRE185

 4
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

NRE185

 4
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

NRE185

 4
44785 - GASKET, BRAKE BOOSTER
44785-05020

NDE180,NRE18#,ZRE185

 1
89420H - SENSOR ASSY, VACUUM
89421-09010

NRE185..CVT

 1
Common parts
90178-W0019
90179-08179
Linked diagrams
1905
4702
