NRE185L-DWXSZW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )NRE185,ZRE185..LHD..CVT

Click highlighted areas on diagram

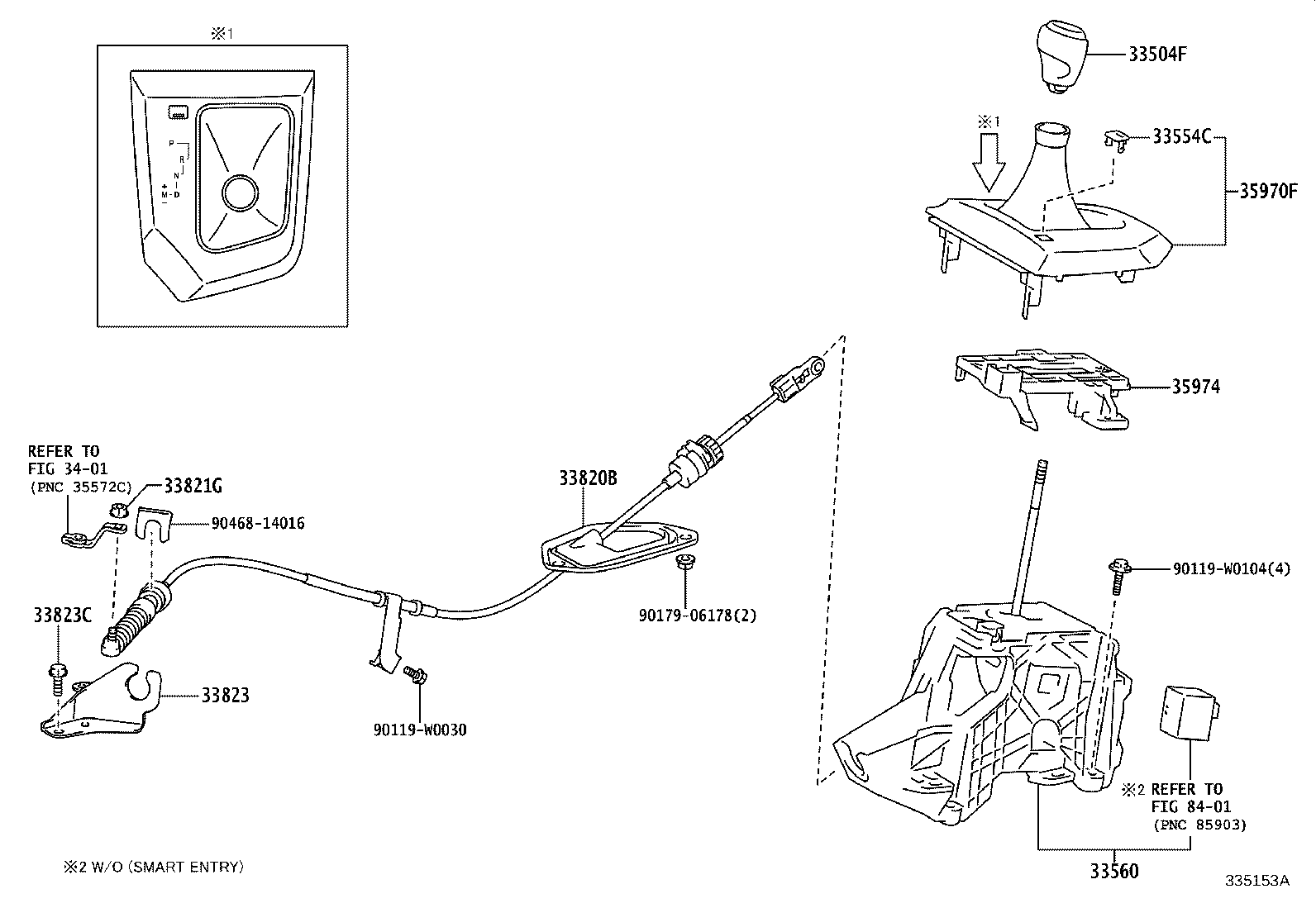

diagram 33504F 33554C 33560 33820B 33821G 33823 33823C 3401 35970F 35974 8401 90119W0030 90119W0104 9017906178 9046814016
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-12360C0

NRE185,ZRE185..CVT..(N,S)

BLACK,TRIM2#

 1
33542-12360C0

NRE185,ZRE185..CVT..G

BLACK,TRIM2#,4#

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-12190

NRE185,ZRE185..LHD..CVT

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-12580

NRE185,ZRE185..LHD..CVT..(N,S)

SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)

 1
33560-12580

NRE185,ZRE185..LHD..CVT..G

 1
33560-12600

NRE185,ZRE185..LHD..CVT..G

SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER)

 1
33560-12600

NRE185,ZRE185..LHD..CVT..(D,N,S)

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-12G11

NRE185,ZRE185..CVT

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90178-W0031

NRE185,ZRE185..CVT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12190

NRE185,ZRE185..CVT

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-W0016

NRE185,ZRE185..CVT

 2
35970F - HOUSING ASSY, POSITION INDICATOR
35970-12241

NRE185,ZRE185..LHD..CVT

 1
35970-12240

NRE185,ZRE185..LHD..CVT

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-12420

NRE185,ZRE185..LHD..CVT

 1
Common parts
90119-W0030
90119-W0104
90179-06178
90468-14016
Linked diagrams
3401
8401
