NRE185L-DWXSZW (2015)
Toyota Auris/Hybrid (Ukp)
Production
May 2015
-
Nov 2018
Engine
8NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1505- )8NRFTS

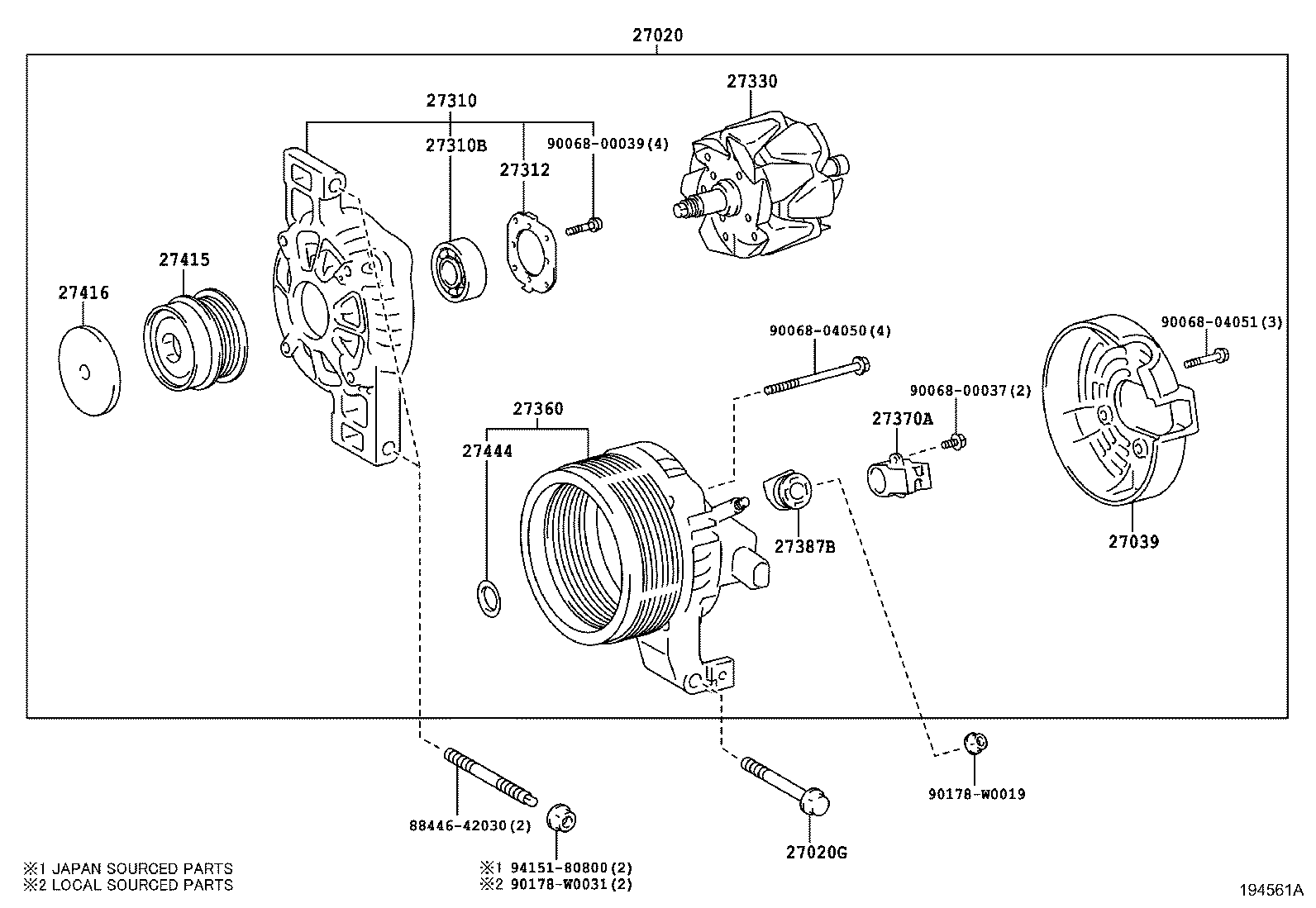

Click highlighted areas on diagram
12V 115A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0Y230 |
8NRFTS..NRE185 12V 115A |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 90119-08C78 |
8NRFTS..NRE185 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0Y150 |
1NDTV,8NRFTS,1ZRFAE..NDE180,NRE185,ZRE185 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0Y210 |
8NRFTS..NRE185 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10033 |
8NRFTS,1ZRFAE..NRE185,ZRE185 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0T300 |
1NDTV,8NRFTS,1ZRFAE..NDE180,NRE185,ZRE185 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0Y150 |
1NDTV,8NRFTS,1ZRFAE..NDE180,NRE185,ZRE185 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0Y210 |
8NRFTS..NRE185 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0Y150 |
1NDTV,8NRFTS,1ZRFAE..NDE180,NRE185,ZRE185 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0Y150 |
1NDTV,8NRFTS,1ZRFAE..NDE180,NRE185,ZRE185 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0Y030 |
8NRFTS..NRE185 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0Q010 |
8NRFTS..NRE185 |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-0T300 |
1NDTV,8NRFTS,1ZRFAE..NDE180,NRE185,ZRE185 |
1 | ||
| Common parts | ||||
| 88446-42030 | ||||
| 90068-00037 | ||||
| 90068-00039 | ||||
| 90068-04050 | ||||
| 90068-04051 | ||||
| 90178-W0019 | ||||
| 90178-W0031 | ||||
| 94151-80800 | ||||
