NRE185L-DWXSZW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )8NRFTS..CVT

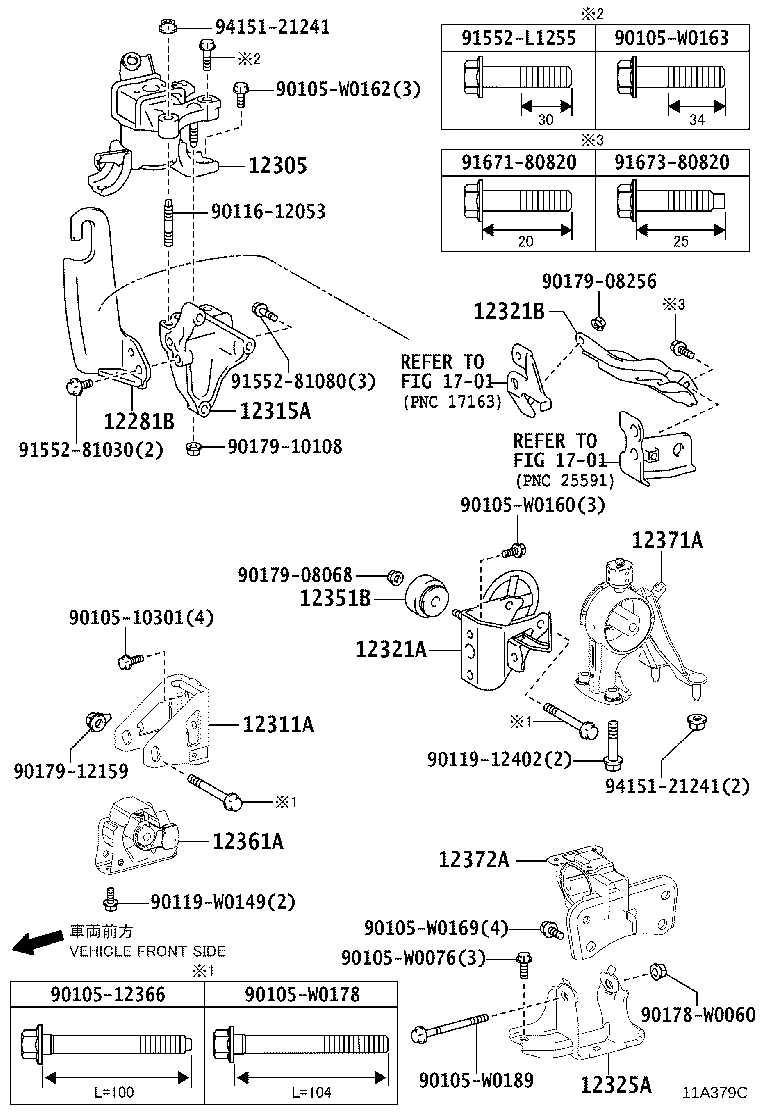

Click highlighted areas on diagram

diagram 12281B 12305 12311A 12315A 12321A 12321B 12325A 12351B 12361A 12371A 12372A 1701 1701 9010510301 9010512366 90105W0076 90105W0160 90105W0162 90105W0163 90105W0169 90105W0178 90105W0189 9011612053 9011912402 90119W0149 90178W0060 9017908068 9017908256 9017910108 9017912159 9155281030 9155281080 91552L1255 9167180820 9167380820 9415121241 9415121241
Part # Description Qty Price
12281B - HANGER, ENGINE, NO.1
12281-47060

8NRFTS..NRE185

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y130

8NRFTS..NRE185

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0T340

1NRFE,8NRFTS..NRE18#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-47080

8NRFTS..NRE185

 1
12315-47081

8NRFTS..NRE185

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0T140

8NRFTS..NRE185..CVT

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-02080

8NRFTS..NRE185

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0T150

8NRFTS..NRE185..CVT

 1
12351B - DAMPER, ENGINE MOUNTING
12351-0D080

8NRFTS..NRE185..CVT

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0T181

8NRFTS..NRE185..CVT

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0T210

8NRFTS..NRE185..CVT

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0T280

8NRFTS..NRE185..CVT

 1
Common parts
90105-10301
90105-12366
90105-W0076
90105-W0160
90105-W0162
90105-W0163
90105-W0169
90105-W0178
90105-W0189
90116-12053
90119-12402
90119-W0149
90178-W0060
90179-08068
90179-08256
90179-10108
90179-12159
91552-81030
91552-81080
91552-L1255
91671-80820
91673-80820
94151-21241
Linked diagrams
1701
