NRE185L-DWFSZW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )8NRFTS

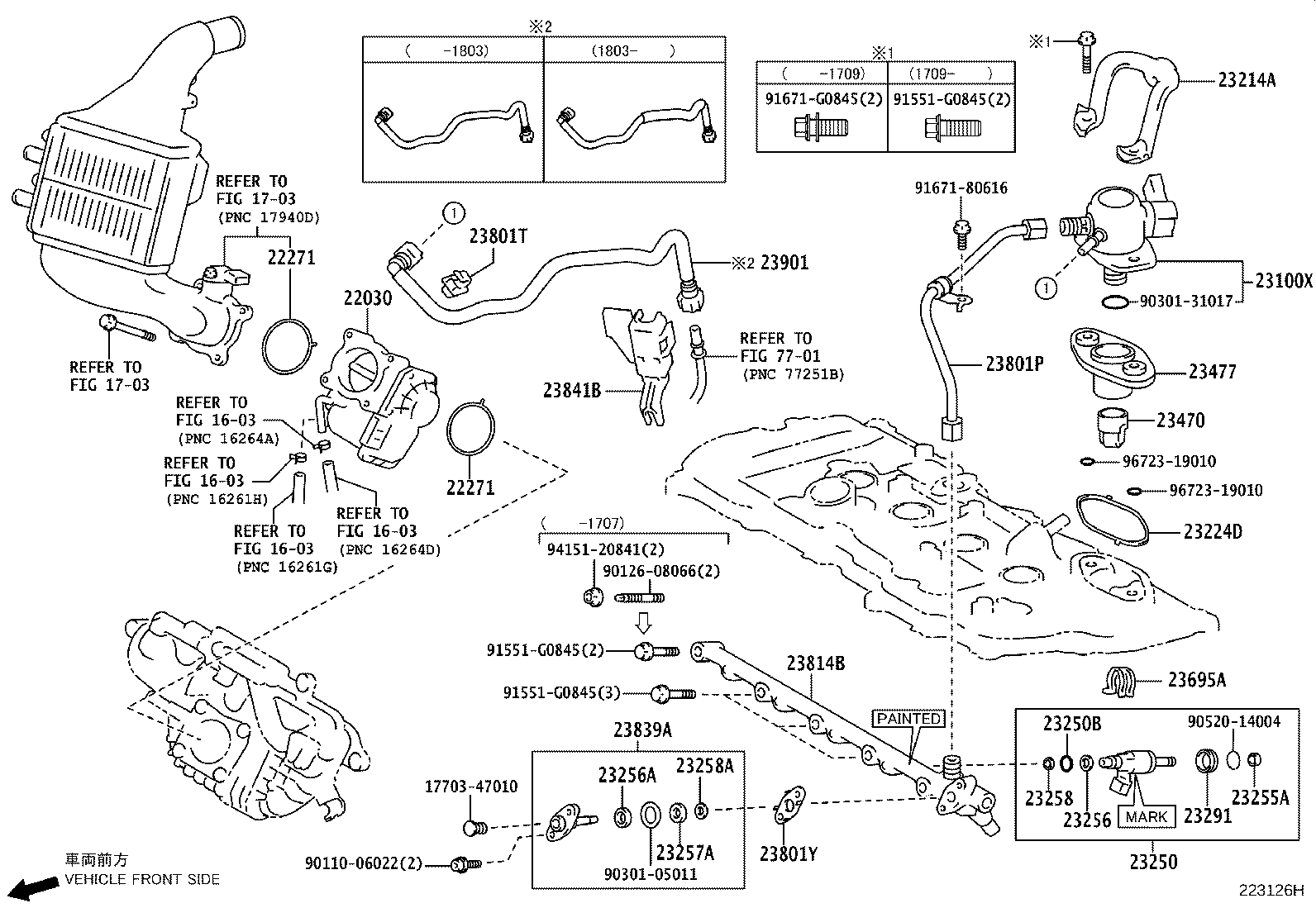

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1703 1703 1770347010 22030 22271 22271 23100X 23214A 23224D 23250 23250B 23255A 23256 23256A 23257A 23258 23258A 23291 23470 23477 23695A 23801P 23801T 23801Y 23814B 23839A 23841B 23901 7701 9011006022 9012608066 9030105011 9030131017 9052014004 91551G0845 91551G0845 91551G0845 9167180616 91671G0845 9415120841 9672319010 9672319010
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-47080

8NRFTS..NRE185

 1
22271 - GASKET, THROTTLE BODY
22271-47060

8NRFTS..NRE185

 2
22271 - GASKET, THROTTLE BODY
22271-47060

8NRFTS..NRE185

 2
23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE)
23101-47010

8NRFTS..NRE185

 1
23101-47020

8NRFTS..NRE185

 1
23214A - PROTECTOR, FUEL PUMP
23214-47010

8NRFTS..NRE185

 1
23224D - GASKET, FUEL PUMP SPACER
23224-47010

8NRFTS..NRE185

 1
23250 - INJECTOR ASSY, FUEL
23209-4707002

8NRFTS..NRE185

MARK 2,MARK23250-47070,*RRM

 4
23209-4707001

8NRFTS..NRE185

MARK 1,MARK23250-47070,*RRM

 4
23209-4710002

8NRFTS..NRE185

MARK 2,MARK23250-47100,*RRM

 4
23209-4710004

8NRFTS..NRE185

MARK 4,MARK23250-47100,*RRM

 4
23209-4710003

8NRFTS..NRE185

MARK 3,MARK23250-47100,*RRM

 4
23209-4710007

8NRFTS..NRE185

MARK 7,MARK23250-47100,*RRM

 4
23209-4710006

8NRFTS..NRE185

MARK 6,MARK23250-47100,*RRM

 4
23209-4710001

8NRFTS..NRE185

MARK 1,MARK23250-47100,*RRM

 4
23209-4710005

8NRFTS..NRE185

MARK 5,MARK23250-47100,*RRM

 4
23209-4707003

8NRFTS..NRE185

MARK 3,MARK23250-47070,*RRM

 4
23209-4710009

8NRFTS..NRE185

MARK 9,MARK23250-47100,*RRM

 4
23209-4710008

8NRFTS..NRE185

MARK 8,MARK23250-47100,*RRM

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-05013

8NRFTS..NRE185

 4
90301-05011

8NRFTS..NRE185

 4
23256 - RING, FUEL INJECTOR BACK-UP, NO.1
23256-31010

8NRFTS..NRE185

 4
23256-25010

8NRFTS..NRE185

 4
23256A - RING, FUEL PIPE, NO.1
23256-31010

8NRFTS..NRE185

 1
23257A - RING, FUEL PIPE, NO.2
23257-47010

8NRFTS..NRE185

 1
23258 - RING, FUEL INJECTOR BACK-UP, NO.3
23258-36010

8NRFTS..NRE185

 4
23258-47010

8NRFTS..NRE185

 4
23258A - RING, FUEL PIPE, NO.3
23258-31010

8NRFTS..NRE185

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-31020

8NRFTS..NRE185

 4
23470 - LIFTER ASSY, FUEL PUMP
23470-36020

8NRFTS..NRE185

 1
23477 - GUIDE, FUEL PUMP LIFTER
23477-47010

8NRFTS..NRE185

 1
23695A - CLAMP, NOZZLE HOLDER
23695-70010

8NRFTS..NRE185

 4
23695-31020

8NRFTS..NRE185

 4
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-47030

8NRFTS..NRE185

 1
23801T - CLAMP OR CLIP, FUEL HOSE(FOR EFI)
23841-0Y070

8NRFTS..NRE185

 1
23801Y - GASKET
23893-47010

8NRFTS..NRE185

 1
23814B - PIPE, FUEL DELIVERY
23800-47030

8NRFTS..NRE185

PAINTED=PINK

 1
23800-47020

8NRFTS..NRE185

PAINTED=WHITE

 1
23839A - PLUG, FUEL PIPE, NO.1
23809-47010

8NRFTS..NRE185

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-37090

1NRFE,8NRFTS..NRE18#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0Y310

8NRFTS..NRE185

 1
23901-0Y110

8NRFTS..NRE185

 1
Common parts
17703-47010
90110-06022
90126-08066
90301-05011
90301-31017
90520-14004
91551-G0845
91671-80616
91671-G0845
94151-20841
96723-19010
Linked diagrams
1603
1703
7701
