Toyota Auris/hybrid (ukp) NRE185 SWITCH & RELAY & COMPUTER

NRE185L-DHFSZW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018

Engine 8NRFTS

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

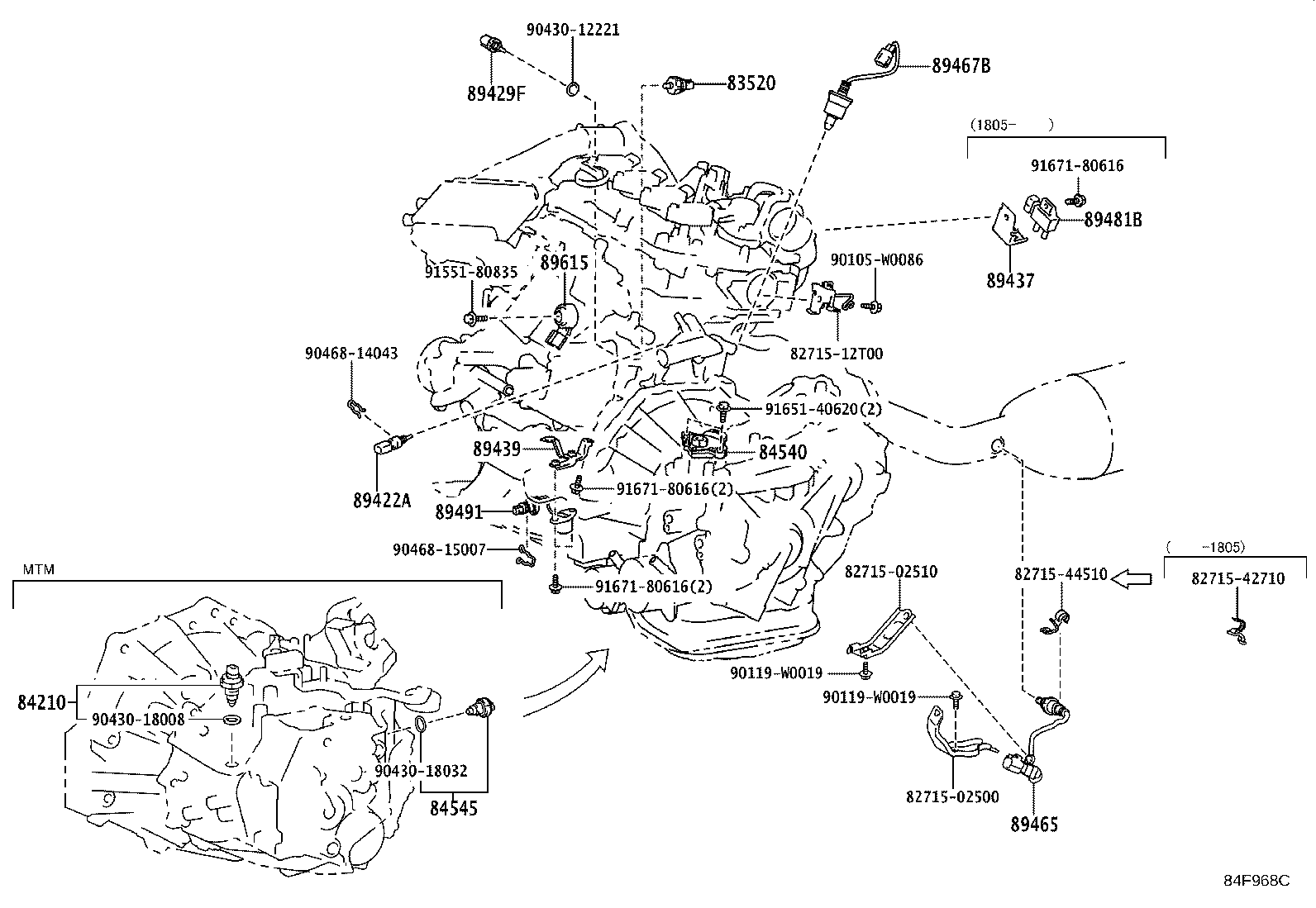

ILLUST NO. 1 OF 7(1505- )NRE185

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83520 - GAGE ASSY,OIL PRESSURE SENDER
83520-60060	NDE180,NRE185	05/2015 - 12/2999	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-52050	NDE180,NRE18#,WWE185,ZRE185..6F	05/2015 - 12/2999	1
84545 - SWITCH, NEUTRAL POSITION
84545-52010	NDE180,NRE185..6F START & STOP SYSTEM PACKAGE	05/2015 - 12/2999	1
89422A - SENSOR, WATER TEMPERATURE
89422-47010	NRE185	05/2015 - 12/2999	1
89429F - SENSOR, TEMPERATURE
89429-12010	NRE185	05/2015 - 12/2999	1
89437 - COVER, SENSOR
89437-10040	NRE185	05/2018 - 12/2999	1
89439 - BRACKET, SENSOR
15367-47010	NRE185	12/2017 - 12/2999	1
89439-12070	NRE185	05/2015 - 11/2017	1
89465 - SENSOR, OXYGEN
89465-12B80	NRE185	05/2015 - 05/2018	1
89467-02260	NRE185	05/2018 - 12/2999	1
89467B - SENSOR, AIR FUEL RATIO
89467-12270	NRE185	05/2015 - 12/2999	1
89481B - SENSOR, DIFFERENTIAL PRESSURE
89481-71010	NRE185	05/2018 - 12/2999	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-12040	NRE185	05/2015 - 10/2017	1
89491-50080	NRE185	11/2017 - 05/2018	1
89491-50081	NRE185	06/2018 - 12/2999	1
89615 - SENSOR, KNOCK CONTROL
89615-20090	NRE18#,ZRE185,ZWE186	05/2015 - 12/2999	1
Common parts
82715-02500
82715-02510
82715-12T00
82715-42710
82715-44510
90105-W0086
90119-W0019
90430-12221
90430-18008
90430-18032
90468-14043
90468-15007
91551-80835
91651-40620
91671-80616

ILLUST NO. 5 OF 7(1505- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
83910G - CLOCK ASSY
83910-02200	NDE180,NRE18#,WWE185,ZRE185,ZWE186	05/2015 - 12/2999	1
84152 - SWITCH, HEADLAMP LEVELING
84152-02080	ZRE185;NDE180,NRE18#,ZWE186..D,N,S	05/2015 - 12/2999	1
84152-02080	ZRE185..G,N,S;NRE180..LHD..N;NDE180,NRE185,ZWE186..N,S HEADLAMP-LED	05/2015 - 12/2999	1
84152-02080	ZRE185..G,N,S;NDE180,NRE185,ZWE186..N,S HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)	05/2015 - 12/2999	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-02300	NDE180,NRE18#,ZRE185,ZWE186	05/2015 - 12/2999	1
84490D - SWITCH ASSY, IPA MAIN
84490-02090	NDE180,NRE18#,ZRE185,ZWE186..N,S CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST)	05/2015 - 12/2999	1
84751 - SWITCH, SEAT HEATER
84751-12102	NRE185,ZRE185..D,N,S;NDE180,NRE180,ZWE186..N,S;NDE180,NRE180,ZWE186..LHD..D SEAT HEATER-WITH	05/2015 - 12/2999	1
84751F - SWITCH, SEAT HEATER
84751-12112	NRE185,ZRE185..D,N,S;NDE180,NRE180,ZWE186..N,S;NDE180,NRE180,ZWE186..LHD..D SEAT HEATER-WITH	05/2015 - 12/2999	1
84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL
84770-02010	NDE180,NRE18#,ZRE185,ZWE186..D,N,S PRE-COLLISION SYSTEM-WITH	05/2015 - 12/2999	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-02101	NRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185,ZWE186..N,S COMFORT PACKAGE	05/2015 - 12/2999	1
84870-02090C0	NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK	05/2015 - 12/2999	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-02101	NRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185,ZWE186..N,S COMFORT PACKAGE	05/2015 - 12/2999	1
84870-02090C0	NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK	05/2015 - 12/2999	1
84870D - SWITCH ASSY, OUTER MIRROR, NO.2
84872-02140	NDE180,NRE18#,ZRE185,ZWE186..D,N,S	05/2015 - 12/2999	1
84970 - SWITCH ASSY, COMBINATION
84970-02110	NDE180,NRE185..6F START & STOP SYSTEM PACKAGE	05/2015 - 12/2999	1
84970-02130	NDE180,NRE18#,ZRE185..6F	05/2015 - 12/2999	1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-0D021	NDE180,NRE18#,ZRE185,ZWE186	11/2016 - 12/2999	1
85530-0D020	NDE180,NRE18#,WWE185,ZRE185,ZWE186	05/2015 - 10/2016	1
85530D - SOCKET ASSY, POWER OUTLET, NO.2
85530-0D021	NDE180,NRE18#,ZRE185,ZWE186	11/2016 - 12/2999	1
85530-0D020	NDE180,NRE18#,WWE185,ZRE185,ZWE186	05/2015 - 10/2016	1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-12060	NDE180,NRE18#,ZRE185,ZWE186	05/2015 - 12/2999	1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-12050C0	NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK,TRIM2#	05/2015 - 12/2999	1
89611 - SWITCH, PUSH START
89611-02100	NRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185..N,S SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)	05/2015 - 08/2015	1
89611-02101	NRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185..N,S SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)	09/2015 - 06/2016	1
89611-02102	NRE180..LHD..N;NDE180,NRE185,ZRE185..N,S SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)	07/2016 - 12/2999	1
89611 - SWITCH, PUSH START
89611-02100	NRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185..N,S SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)	05/2015 - 08/2015	1
89611-02101	NRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185..N,S SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)	09/2015 - 06/2016	1
89611-02102	NRE180..LHD..N;NDE180,NRE185,ZRE185..N,S SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)	07/2016 - 12/2999	1
Linked diagrams
8435

ILLUST NO. 2 OF 7(1505- )NDE180,NRE18#,ZRE185

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
28850C - SENSOR ASSY, BATTERY STATE
28850-0Y010	8NRFTS..NRE185..6F START & STOP SYSTEM PACKAGE	05/2015 - 12/2999	1
28859A - HOLDER, BATTERY CURRENT SENSOR
28859-0Y010	8NRFTS..NRE185..6F START & STOP SYSTEM PACKAGE	05/2015 - 12/2999	1
85942 - RELAY, HEADLAMP CLEANER CONTROL
85942-02060	NDE180,NRE18#,ZRE185,ZWE186..LHD HEADLAMP CLEANER-WITH	05/2015 - 12/2999	1
89257 - COMPUTER, COOLING FAN
89257-30080	NRE185	05/2015 - 12/2999	1
89257 - COMPUTER, COOLING FAN
89257-30080	NRE185	05/2015 - 12/2999	1
Common parts
90068-04037
90119-W0030
90119-W0061
90119-W0185
90159-50386
90178-W0024
93315-14010
94151-80801

ILLUST NO. 4 OF 7(1505- )LHD

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH
69065-02010	NDE180,NRE18#,ZRE185,ZWE186	05/2015 - 12/2999	1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08306	NDE180,NRE18#,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK	05/2015 - 12/2999	1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08306	NDE180,NRE18#,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK	05/2015 - 12/2999	1
82600D - INSTRUMENT PANEL FUSE
90982-09019	NDE180,NRE18#,ZRE185,ZWE186 5A,MINI FUSE,TAN	05/2015 - 12/2999	1
90982-09022	NDE180,NRE18#,ZRE185,ZWE186 15A,MINI FUSE,BLUE	05/2015 - 12/2999	1
90982-09021	NDE180,NRE18#,ZRE185,ZWE186 10A,MINI FUSE,RED	05/2015 - 12/2999	1
90982-09020	NDE180,NRE18#,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN	05/2015 - 12/2999	1
90982-09023	NDE180,NRE18#,ZRE185,ZWE186 20A,MINI FUSE,YELLOW	05/2015 - 12/2999	1
90982-09024	NDE180,NRE18#,ZRE185,ZWE186 25A,MINI FUSE	05/2015 - 12/2999	1
82600D - INSTRUMENT PANEL FUSE
90982-09019	NDE180,NRE18#,ZRE185,ZWE186 5A,MINI FUSE,TAN	05/2015 - 12/2999	1
90982-09022	NDE180,NRE18#,ZRE185,ZWE186 15A,MINI FUSE,BLUE	05/2015 - 12/2999	1
90982-09021	NDE180,NRE18#,ZRE185,ZWE186 10A,MINI FUSE,RED	05/2015 - 12/2999	1
90982-09020	NDE180,NRE18#,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN	05/2015 - 12/2999	1
90982-09023	NDE180,NRE18#,ZRE185,ZWE186 20A,MINI FUSE,YELLOW	05/2015 - 12/2999	1
90982-09024	NDE180,NRE18#,ZRE185,ZWE186 25A,MINI FUSE	05/2015 - 12/2999	1
82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1
90080-87021	NDE180,NRE18#,ZRE185,ZWE186	05/2015 - 12/2999	1
82672A - COVER, JUNCTION BLOCK
82672-12450	NDE180,NRE18#,ZRE185,ZWE186	05/2015 - 12/2999	1
82673A - BRACKET, JUNCTION BLOCK
82673-02110	NDE180,NRE18#,ZRE185,ZWE186..LHD	05/2015 - 12/2999	1
82673B - BRACKET, JUNCTION BLOCK
82673-02120	NDE180,NRE18#,ZRE185,ZWE186..LHD	05/2015 - 12/2999	1
82673C - BRACKET, JUNCTION BLOCK
82673-02130	NDE180,NRE18#,ZRE185,ZWE186..LHD	05/2015 - 12/2999	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-12X70	NDE180,NRE18#,WWE185,ZRE185..LHD..6F..(G,N,S) REFRIGERANT GAS TYPE=R-134A	05/2015 - 02/2016	1
82730-12X80	NDE180,NRE18#,WWE185,ZRE185,ZWE186..G,N,S	05/2015 - 02/2016	1
82730-12X70	NDE180,NRE18#,WWE185,ZRE185,ZWE186..G,N,S LIGHT GRADE	05/2015 - 02/2016	1
82730-12X81	NDE180,NRE18#,ZRE185,ZWE186..G,N,S	03/2016 - 12/2999	1
82730-12X71	NRE18#..LHD..6F..(G,N,S);NDE180,ZRE185..HB..6F..(G,S);NDE180,ZRE185..LHD..WG..6F..(G,N,S) REFRIGERANT GAS TYPE=R-134A	03/2016 - 12/2999	1
82730-12X71	ZRE185..HB..CVT..N;NRE18#,ZWE186..G,N,S;NDE180,ZRE185..HB..(G,S);NDE180,ZRE185..RHD..HB..N;NDE180,ZRE185..WG..(G,N,S) LIGHT GRADE	03/2016 - 12/2999	1
82755 - BLOCK, CENTER RELAY
82755-02040	NDE180,NRE18#,ZRE185,ZWE186..LHD	05/2015 - 12/2999	1
82877 - BOX, COMPUTER INTEGRATION, RH
82877-02020	NDE180,NRE185..LHD..6F..(N,S) START & STOP SYSTEM PACKAGE&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST)	05/2015 - 12/2999	1
82877-02020	ZRE185..LHD..(N,S);NDE180,NRE18#..LHD..6F..(N,S) COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST)	05/2015 - 12/2999	1
82877-02020	NDE180,NRE185..LHD..6F..(N,S) COMFORT PACKAGE&START & STOP SYSTEM PACKAGE	05/2015 - 12/2999	1
82877-02020	NDE180,NRE185..LHD..6F..(D,N,S) START & STOP SYSTEM PACKAGE	05/2015 - 12/2999	1
82877-02020	ZRE185..LHD..(N,S);NDE180,NRE18#..LHD..6F..(N,S) CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST)	05/2015 - 12/2999	1
82877-02020	NDE180,NRE185..LHD..6F..(N,S) COMFORT PACKAGE&START & STOP SYSTEM PACKAGE&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST)	05/2015 - 12/2999	1
82877-02020	ZRE185..LHD..(N,S);NDE180,NRE18#..LHD..6F..(N,S) COMFORT PACKAGE	05/2015 - 12/2999	1
84270Q - RELAY, LAMP CUT
90080-87021	NDE180,NRE18#,ZRE185,ZWE186	05/2015 - 12/2999	1
84340 - SWITCH ASSY, STOP LAMP
84340-09020	NDE180,NRE18#,ZRE185,ZWE186	05/2015 - 12/2999	1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-51010	NDE180,NRE18#,ZRE185,ZWE186	05/2015 - 12/2999	1
84520 - SWITCH ASSY, CLUTCH START
84520-42010	NDE180,NRE18#,WWE185,ZRE185..6F	05/2015 - 12/2999	1
84520 - SWITCH ASSY, CLUTCH START
84520-42010	NDE180,NRE18#,WWE185,ZRE185..6F	05/2015 - 12/2999	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-33010	NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD	05/2015 - 12/2999	1
85530A - RELAY, POWER OUTLET SOCKET
90987-02027	NDE180,NRE18#,ZRE185,ZWE186	05/2015 - 12/2999	1
85916D - RELAY, FOG LAMP
90987-02027	NDE180,NRE18#,ZRE185,ZWE186..G,N,S FRONT FOG LAMP-WITHOUT	05/2015 - 12/2999	1
90987-02027	NDE180,NRE18#,ZRE185,ZWE186..G,N,S	05/2015 - 12/2999	1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-02060	NRE180..LHD..N;NDE180,NRE185,ZRE185,ZWE186..N,S COMFORT PACKAGE	05/2015 - 12/2999	1
89120A - SENSOR, AUTOMATIC LIGHT CONTROL
89121-12010	NDE180,NRE18#,ZRE185,ZWE186..D,N,S PRE-COLLISION SYSTEM-WITH	05/2015 - 12/2999	1
89121-12010	NRE180..LHD..N;NDE180,NRE185,ZRE185,ZWE186..N,S COMFORT PACKAGE	05/2015 - 12/2999	1
89121-12010	NRE180..LHD..N;NDE180,NRE185,ZRE185,ZWE186..N,S COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH	05/2015 - 12/2999	1
89221 - COMPUTER, MULTIPLEX NETWORK BODY
89220-02520	NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..HB BALKAN STATES SPEC	05/2015 - 07/2017	1
89220-02540	NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..HB REFRIGERANT GAS TYPE=R-134A	05/2015 - 07/2017	1
89220-02560	NDE180,NRE18#,ZRE185,ZWE186..LHD..HB	05/2015 - 12/2999	1
89220-02360	NDE180,NRE18#,ZRE185,ZWE186..LHD..HB BALKAN STATES SPEC	07/2017 - 12/2999	1
89220-02520	NRE180..LHD..HB..D;NDE180,NRE185,ZRE185,ZWE186..LHD..HB TURKEY SPEC	05/2015 - 12/2999	1
89220-02M40	NDE180,NRE18#,ZRE185,ZWE186..LHD..HB REFRIGERANT GAS TYPE=R-134A	07/2017 - 12/2999	1
89650 - COMPUTER ASSY, POWER STEERING
89650-12D60	NDE180,NRE18#,WWE185,ZRE185..LHD	05/2015 - 12/2999	1
89940 - COMPUTER ASSY, HEADLAMP SWIVEL
89940-12180	NRE185,ZWE186..HB..(N,S);ZRE185..LHD..HB..(G,N,S) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)	05/2015 - 12/2999	1
89940-12180	NRE185,ZWE186..HB..(N,S);ZRE185..LHD..HB..(G,N,S) HEADLAMP-LED	05/2015 - 12/2999	1
Common parts
90119-W0030
90119-W0156
90159-60613
90159-W0007
90159-W0012
90179-06110
93315-14012
94120-41000
Linked diagrams
8407
8417
