NRE185L-DHFSZW (2015)
Toyota Auris/Hybrid (Ukp)
Production
May 2015
-
Nov 2018
Engine
8NRFTS
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

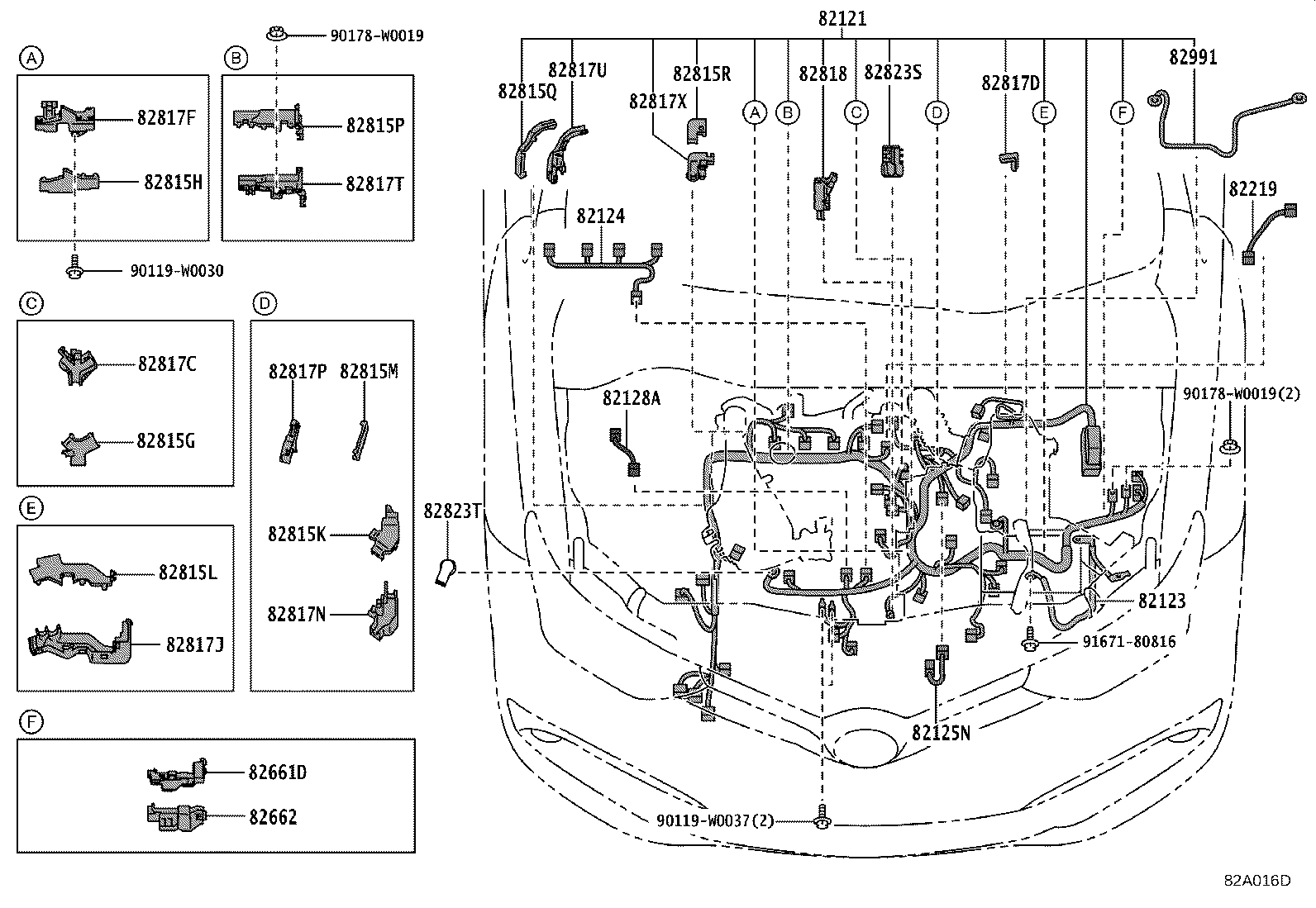

ILLUST NO. 2 OF13(1505- )NRE185
Click highlighted areas on diagram
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0ZD10 |
NRE185..6F |
1 | ||
| 82121-0ZD00 |
NRE185..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 82121-0ZS90 |
NRE185..6F |
1 | ||
| 82121-0ZS80 |
NRE185..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02550 |
NRE185..6F |
1 | ||
| 82123-02C40 |
NRE185..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12170 |
NRE185 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-12610 |
NRE185 |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-12010 |
NRE185 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-12130 |
NRE185 |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12320 |
NDE180,NRE185..6F |
1 | ||
| 82662 - COVER, RELAY BLOCK, UPPER | ||||
| 82662-12C00 |
NDE180,NRE185..6F |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-02730 |
NRE185 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-02750 |
NRE185 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-02740 |
NRE185 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-02390 |
NRE18#,ZRE185 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-02400 |
NRE185 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-02720 |
NRE185 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-02700 |
NRE185 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-02710 |
NRE185 |
1 | ||
| 82815-12G90 |
NRE185 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-02L70 |
NRE185 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12860 |
NRE18#,ZRE185 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-02L90 |
NRE185 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-02B30 |
NRE18#,ZRE185 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-02L80 |
NRE185 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-02C90 |
NRE185 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-02L50 |
NRE185 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-02L30 |
NRE185 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-12W40 |
NRE185 |
1 | ||
| 82817-02L40 |
NRE185 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-02L60 |
NRE185 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12120 |
NRE185 |
2 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NDE180,NRE18# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-02010 |
NRE18#,ZRE185 |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90178-W0019 | ||||
| 91671-80816 | ||||
