NRE185L-DHFGZW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )8NRFTS..6F

Click highlighted areas on diagram

12V 1.7KW

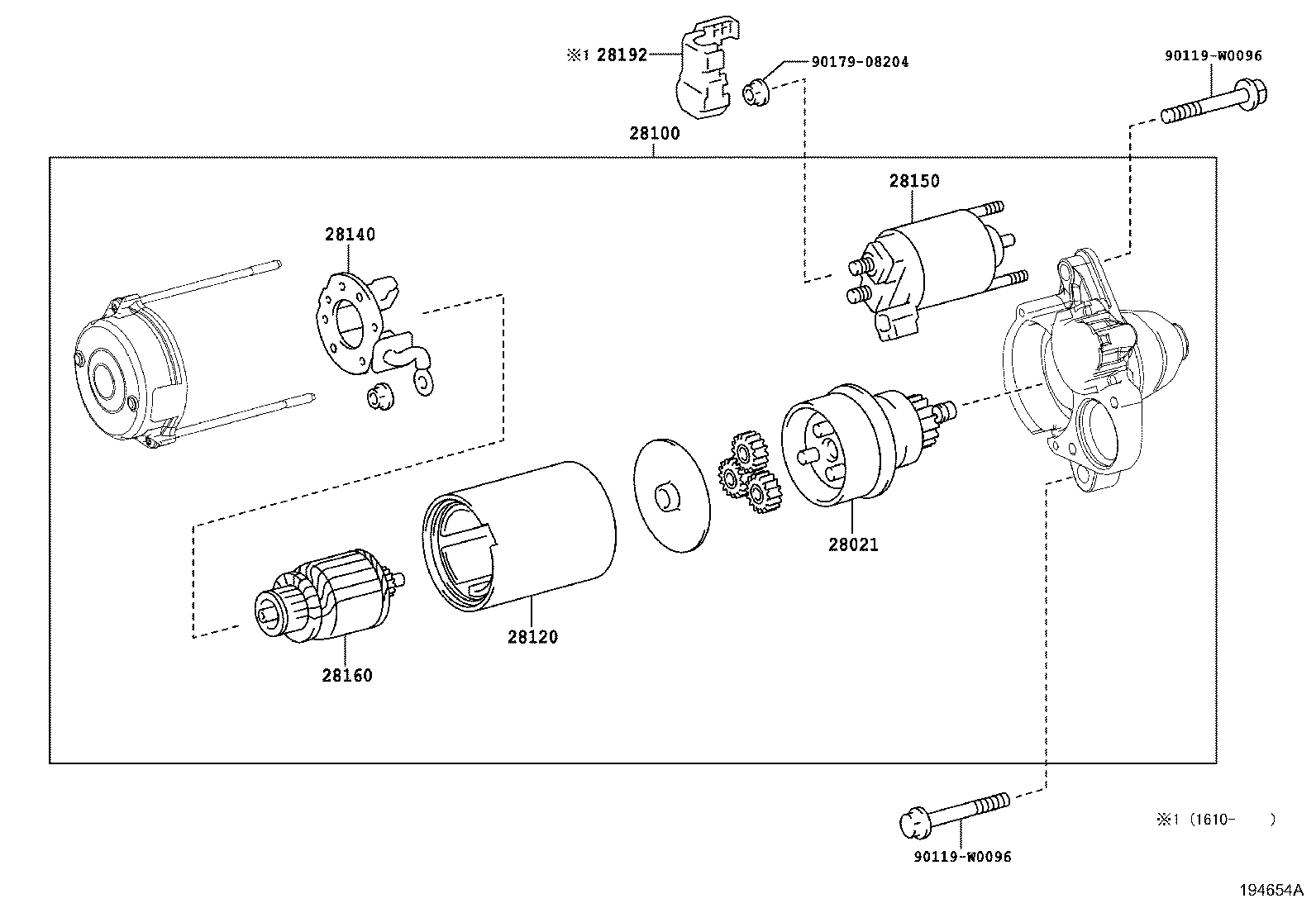

diagram 28021 28100 28120 28140 28150 28160 28192 90119W0096 90119W0096 9017908204
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-21100

8NRFTS..NRE185..6F

START & STOP SYSTEM PACKAGE

 1
28100 - STARTER ASSY
28100-0Y240

8NRFTS..NRE185..6F

12V 1.7KW,START & STOP SYSTEM PACKAGE

 1
28100-0T030

1ZRFAE..ZRE185;8NRFTS..NRE185..6F

12V 1.1KW

 1
28120 - YOKE ASSY, STARTER
28120-47240

8NRFTS..NRE185..6F

START & STOP SYSTEM PACKAGE

 1
28120-0D130

1ZRFAE..ZRE185;8NRFTS..NRE185..6F

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-21100

1NDTV,8NRFTS..NDE180,NRE185..6F

START & STOP SYSTEM PACKAGE

 1
28140-0D130

1ZRFAE..ZRE185;8NRFTS..NRE185..6F

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0D130

1ZRFAE..ZRE185;8NRFTS..NRE185..6F

 1
28150-47240

8NRFTS..NRE185..6F

START & STOP SYSTEM PACKAGE

 1
28160 - ARMATURE ASSY, STARTER
28160-38070

1NDTV,8NRFTS..NDE180,NRE185..6F

START & STOP SYSTEM PACKAGE

 1
28160-0D130

1ZRFAE..ZRE185;8NRFTS..NRE185..6F

 1
28160-38080

1NDTV,8NRFTS..NDE180,NRE185..6F

START & STOP SYSTEM PACKAGE

 1
28192 - COVER, STARTER
28192-47010

8NRFTS..NRE185

 1
Common parts
90119-W0096
90179-08204
