NRE180R-DHFDKW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )

Click highlighted areas on diagram

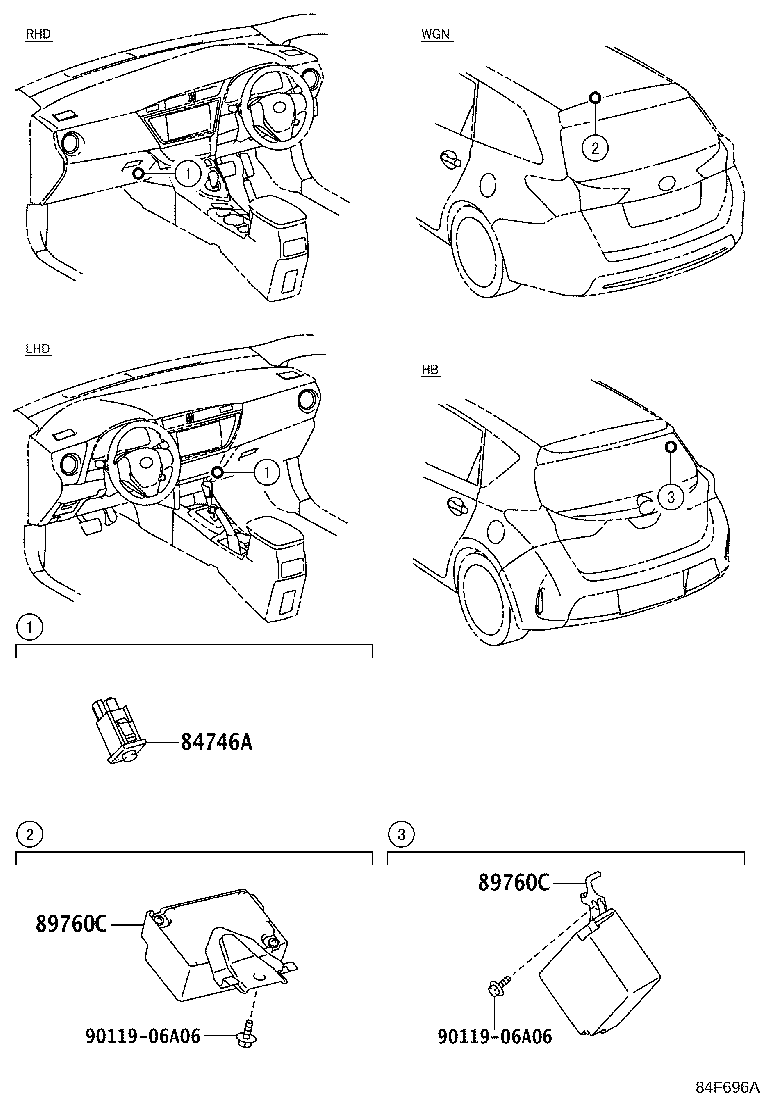

diagram 84746A 89760C 89760C 9011906A06 9011906A06
Part # Description Qty Price
84746A - SWITCH, TIRE PRESSURE WARNING, NO.1
84746-02020

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
89760C - RECEIVER ASSY, TIRE PRESSURE MONITOR
89760-02130

ADE186,NDE180,NRE180,ZRE185..HB

 1
89760-02131

ADE186,NDE180,NRE180,ZRE185..HB

 1
89760C - RECEIVER ASSY, TIRE PRESSURE MONITOR
89760-02130

ADE186,NDE180,NRE180,ZRE185..HB

 1
89760-02131

ADE186,NDE180,NRE180,ZRE185..HB

 1
Common parts
90119-06A06
