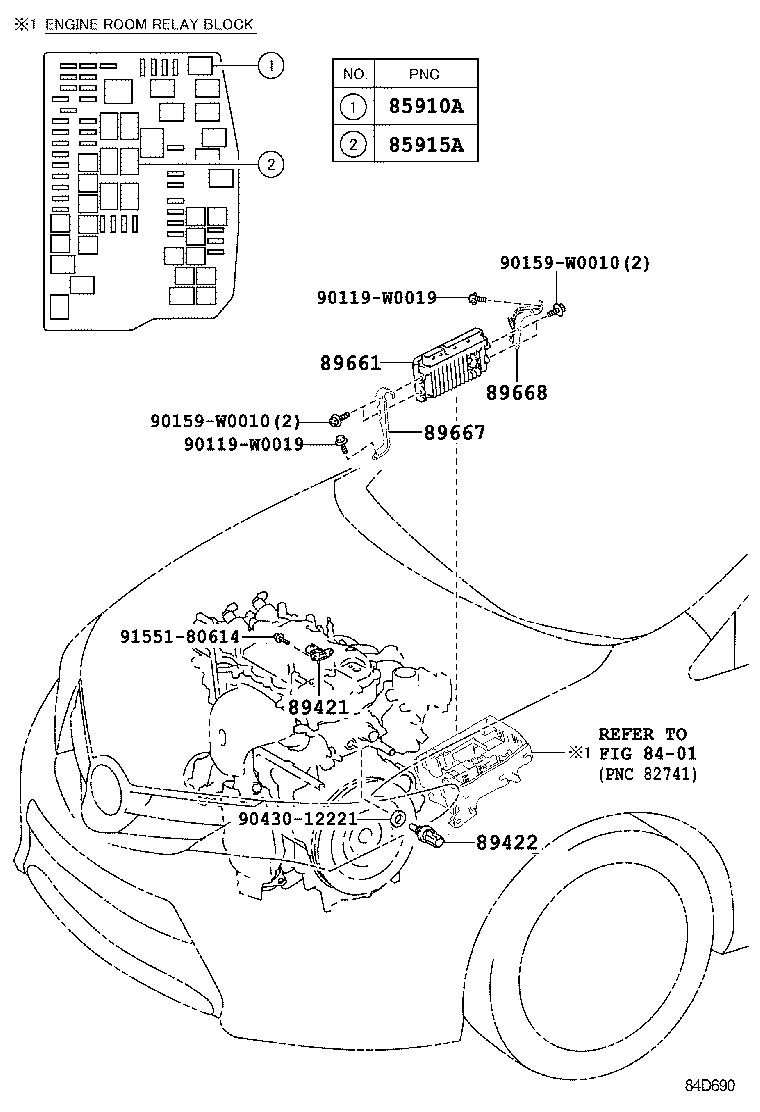

Toyota Auris/hybrid (ukp) NRE180 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87021	ZWE186;NRE180,ZRE185..6F	10/2012 - 05/2015	1
85915A - RELAY, MAIN
90080-87021	NRE180;ZRE185..CVT	10/2012 - 05/2015	1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030	NRE180,ZRE185	10/2012 - 05/2015	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
89661 - COMPUTER, ENGINE CONTROL
89661-0Z800	NRE180..RHD	10/2012 - 09/2013	1
89661-0Z801	NRE180..RHD LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS	05/2014 - 09/2014	1
89661-0Z801	NRE180..RHD	10/2013 - 05/2014	1
89661-0Z811	NRE180..RHD	05/2014 - 05/2015	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-02300	NRE180,ZRE185	10/2012 - 05/2015	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02280	NRE180,ZRE185	10/2012 - 05/2015	1
Common parts
90119-W0019
90159-W0010
90430-12221
91551-80614
Linked diagrams
8401

NRE180R-DHFDKW (2012)
