NRE180R-DHFDKW (2012)
Toyota Auris/Hybrid (Ukp)

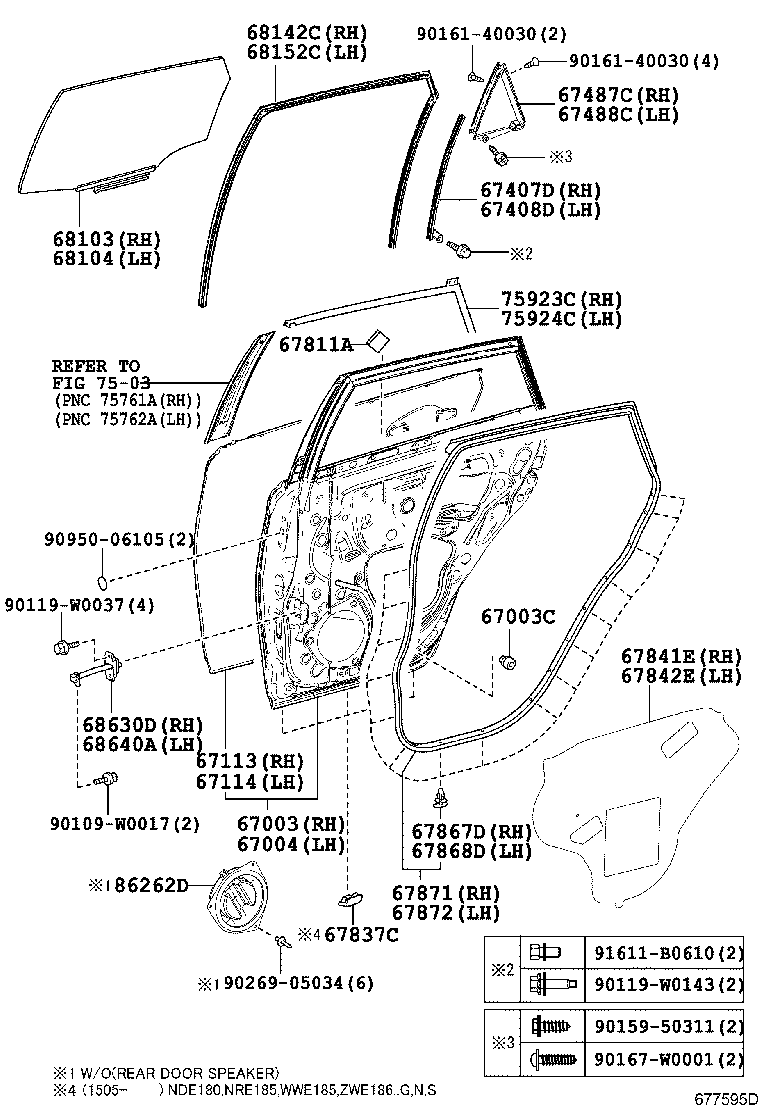

ILLUST NO. 1 OF 2(1210- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-02380 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09124 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-02380 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-02180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-02180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-12320 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-12320 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-02070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-02070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67811A - PAD, REAR DOOR SILENCER | ||||
| 67811-12180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-02230 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-02210 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-02210 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-02210 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-02350 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(G,N) REAR SIDE GLASS-PRIVACY |
1 | ||
| 68103-02340 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-02340 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 68104-02350 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(G,N) REAR SIDE GLASS-PRIVACY |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-02270 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-02270 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-02230 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-02230 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 75923C - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-02170 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 75924C - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 86262D - COVER, REAR DOOR SPEAKER | ||||
| 86262-02010 |
NDE180,NRE180,ZRE185..D |
2 | ||
| Common parts | ||||
| 90109-W0017 | ||||
| 90119-W0037 | ||||
| 90119-W0143 | ||||
| 90159-50311 | ||||
| 90161-40030 | ||||
| 90167-W0001 | ||||
| 90269-05034 | ||||
| 90950-06105 | ||||
| 91611-B0610 | ||||
| Linked diagrams | ||||
| 7503 | ||||
ILLUST NO. 2 OF 2(1210- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-02P50C3 |
NRE180..RHD..N SPORT PACKAGE&POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2# |
1 | ||
| 67630-02Q00C1 |
NRE180..RHD..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 67630-02P60C4 |
ADE186,NDE180,NRE180,ZRE185..N BLACK,TRIM2# |
1 | ||
| 67630-02P70C3 |
NDE180,NRE180,ZRE185..RHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2# |
1 | ||
| 67630-02P40C5 |
NDE180,NRE180..RHD..D BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (J) |
16 | ||
| 90467-W0010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (L) |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-02P80C1 |
NRE180..RHD..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 67640-02P50C3 |
NRE180..RHD..N SPORT PACKAGE&POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2# |
1 | ||
| 67640-02P60C4 |
ADE186,NDE180,NRE180,ZRE185..N BLACK,TRIM2# |
1 | ||
| 67640-02P70C3 |
NDE180,NRE180,ZRE185..RHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2# |
1 | ||
| 67640-02P40C5 |
NDE180,NRE180..RHD..D BLACK,TRIM2# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-48010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-02221 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-02191 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 85373-12020 | ||||
| 90159-60591 | ||||
| 90164-40105 | ||||
| Linked diagrams | ||||
| 7401 | ||||
