NRE180R-DHFDKW (2012)
Toyota Auris/Hybrid (Ukp)

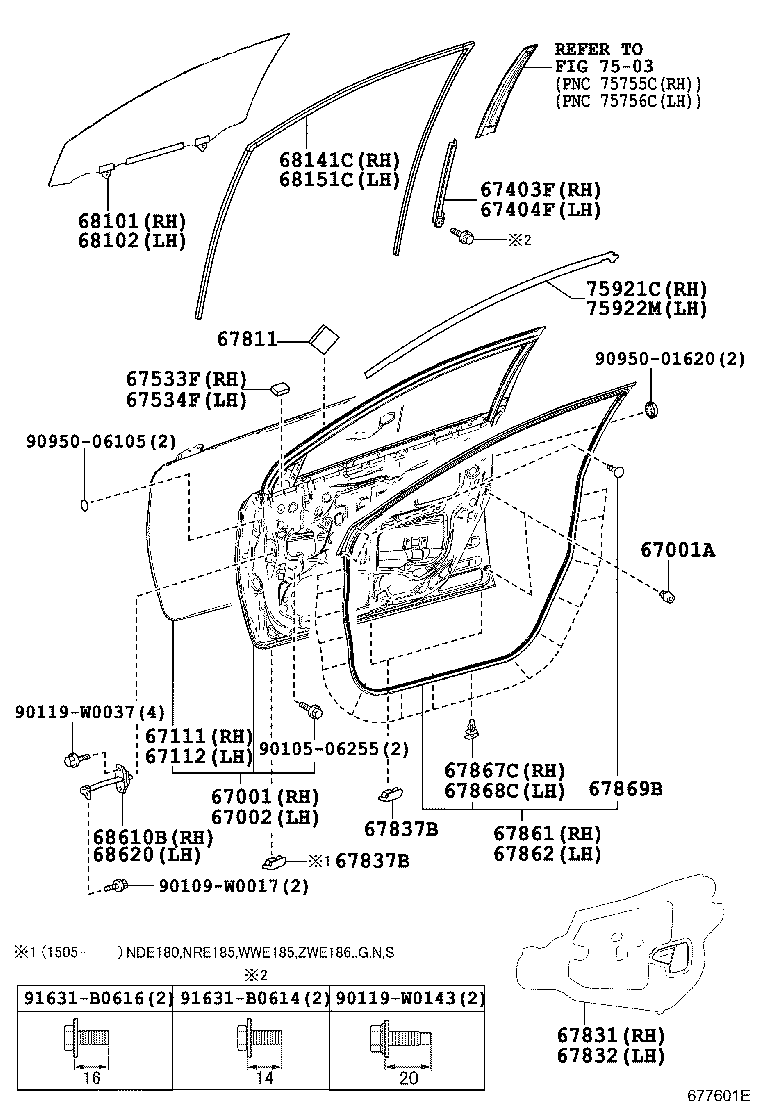

ILLUST NO. 1 OF 2(1210- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-02300 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67001-02540 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-02530 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67002-02360 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-02210 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-02210 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12310 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12280 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67533F - PAD, FRONT DOOR LOWER FRAME GARNISH, RH | ||||
| 67837-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67534F - PAD, FRONT DOOR LOWER FRAME GARNISH, LH | ||||
| 67837-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-12190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 100 X 100 |
2 | ||
| 67811-12180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 80 X 80 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-02290 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-02290 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 67837-12080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 67837-12080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-02250 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-02250 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
15 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
15 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-02360 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-02360 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-02310 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-02300 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-02240 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-02240 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-02160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-02160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90105-06255 | ||||
| 90109-W0017 | ||||
| 90119-W0037 | ||||
| 90119-W0143 | ||||
| 90950-01620 | ||||
| 90950-06105 | ||||
| 91631-B0614 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 7503 | ||||

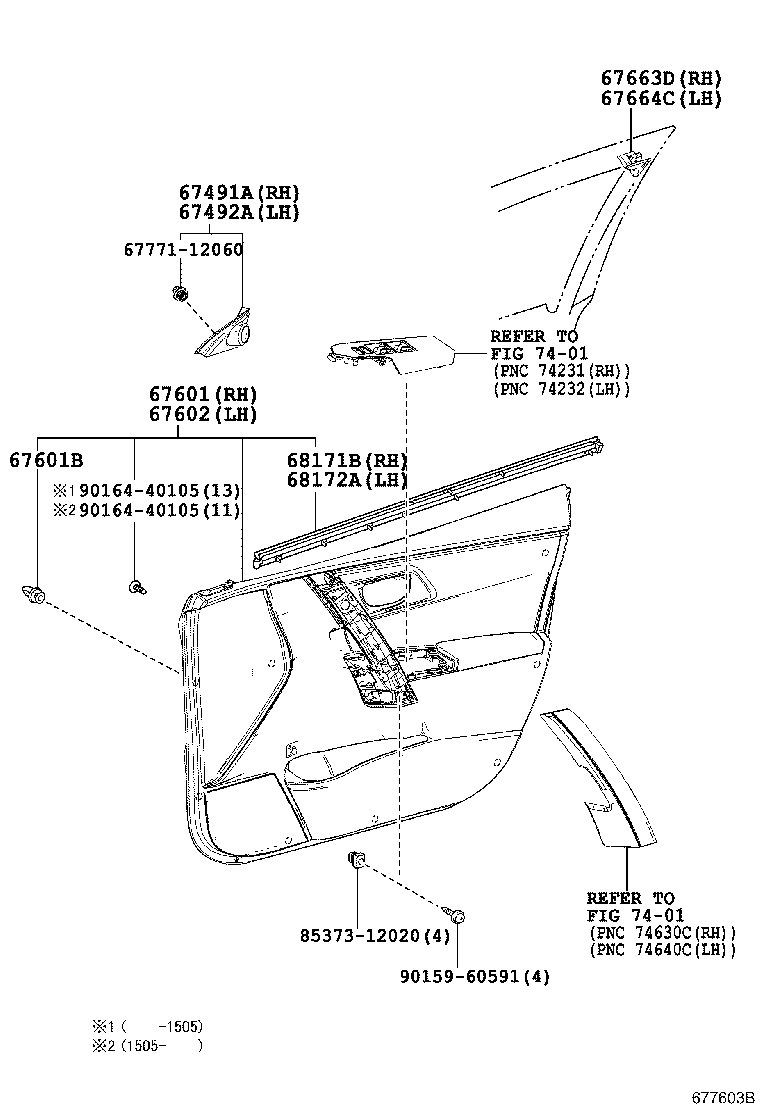

ILLUST NO. 2 OF 2(1210- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-02380C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-02380C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-02N30C4 |
NRE180..RHD..N SPORT PACKAGE&POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2# |
1 | ||
| 67610-02M30C5 |
NDE180,NRE180..RHD..D BLACK,TRIM2# |
1 | ||
| 67610-02N50C4 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 67610-02N30C4 |
NRE180..RHD..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (J) |
16 | ||
| 90467-W0010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (L) |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-02N30C4 |
NRE180..RHD..N SPORT PACKAGE&POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2# |
1 | ||
| 67620-02N30C4 |
NRE180..RHD..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 67620-02M30C6 |
NDE180,NRE180..RHD..D BLACK,TRIM2# |
1 | ||
| 67620-02N50C5 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-48010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-48010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-02241 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-02231 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 67771-12060 | ||||
| 85373-12020 | ||||
| 90159-60591 | ||||
| 90164-40105 | ||||
| Linked diagrams | ||||
| 7401 | ||||
