NRE180L-DHFDKW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210-1505)ADE186,NDE180,NRE180,ZRE185..HB

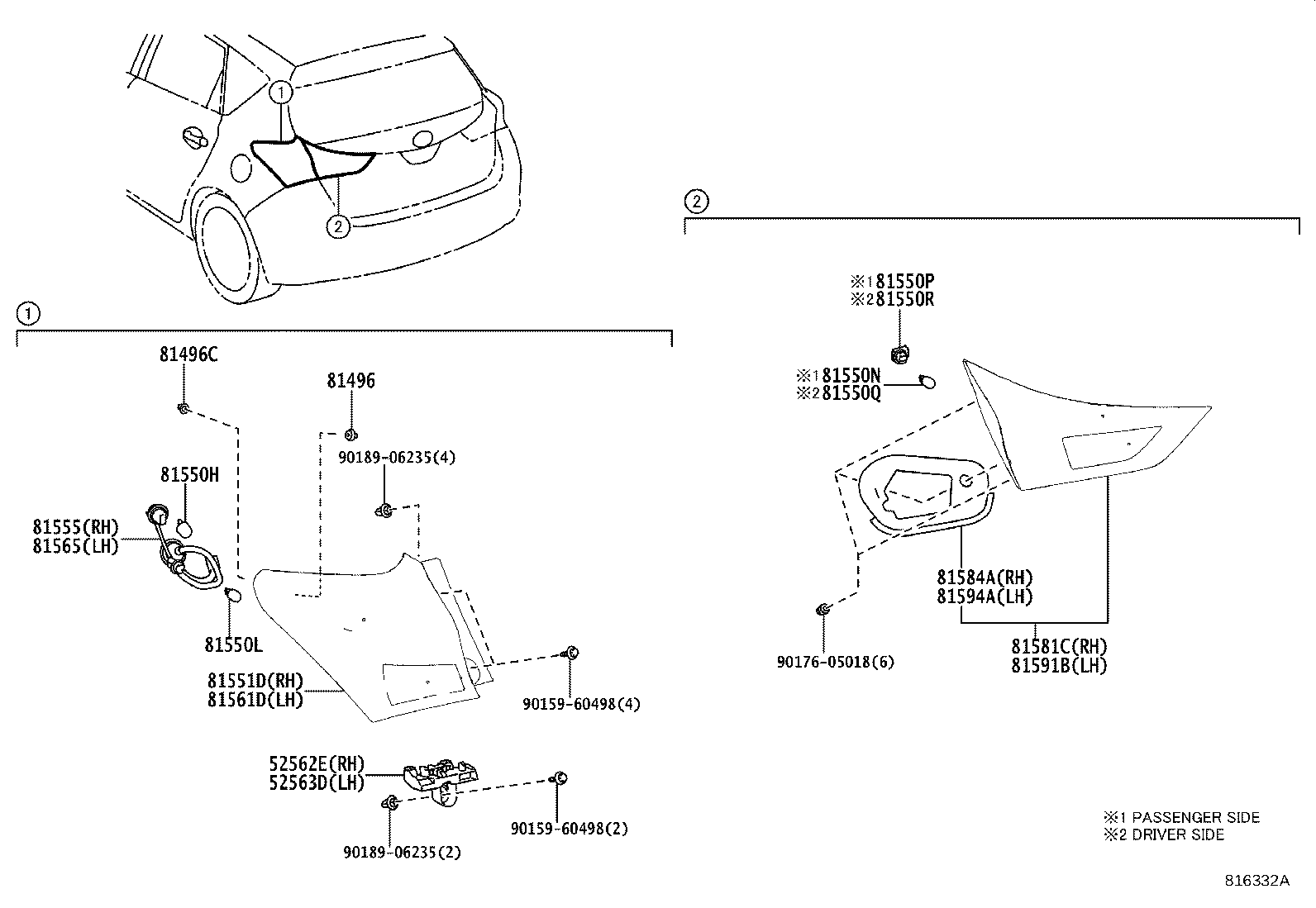

Click highlighted areas on diagram

diagram 52562E 52563D 81496 81496C 81550H 81550L 81550N 81550P 81550Q 81550R 81551D 81555 81561D 81565 81581C 81584A 81591B 81594A 9015960498 9015960498 9017605018 9018906235 9018906235
Part # Description Qty Price
52562E - RETAINER, REAR BUMPER, UPPER RH
52562-02190

ADE186,NDE180,NRE180,ZRE185,ZWE186..HB

 1
52563D - RETAINER, REAR BUMPER, UPPER LH
52563-02190

ADE186,NDE180,NRE180,ZRE185,ZWE186..HB

 1
81496 - GUIDE, REAR COMBINATION LAMP
81496-28010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-52020

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
81550H - BULB, TAIL & STOP LAMP
90080-81089

ADE186,NDE180,NRE180,ZRE185

12V 21/5W

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-WB007

ADE186,NDE180,NRE180,ZRE185,ZWE186

12V 16W

 2
81550N - BULB, BACK UP LAMP
90981-WB007

ADE186,NDE180,NRE180,ZRE185,ZWE186

12V 16W

 1
81550P - SOCKET, BACK UP LAMP
90075-60065

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
81550Q - BULB, REAR FOG LAMP, NO.1
90981-13043

ADE186,NDE180,NRE180,ZRE185,ZWE186

12V 21W

 1
81550R - SOCKET, REAR FOG LAMP
90075-60042

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-02740

ADE186,NDE180,NRE180,ZRE185..HB

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-02740

ADE186,NDE180,NRE180,ZRE185..HB

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-02740

ADE186,NDE180,NRE180,ZRE185..HB

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-02740

ADE186,NDE180,NRE180,ZRE185..HB

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-02460

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB

 1
81584A - GASKET, REAR LAMP RH
81584-02460

ADE186,NDE180,NRE180,ZRE185,ZWE186..HB

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-02450

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB

 1
81594A - GASKET, REAR LAMP LH
81594-02460

ADE186,NDE180,NRE180,ZRE185,ZWE186..HB

 1
Common parts
90159-60498
90176-05018
90189-06235
