NRE150R-DGFNKW (2008)

Toyota Auris/Hybrid (Ukp)

Production Nov 2008 - Jan 2010
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NRE150..RHD

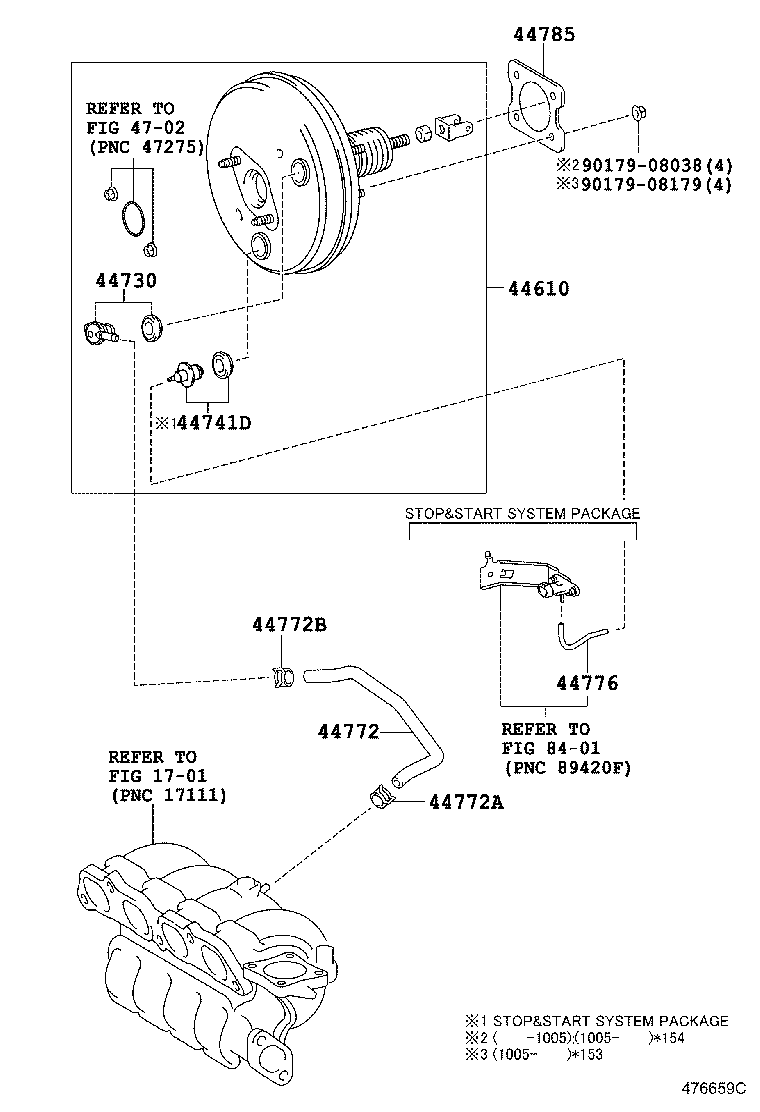

Click highlighted areas on diagram

diagram 1701 44610 44730 44741D 44772 44772A 44772B 44776 44785 4702 8401 9017908038 9017908179
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09440

NRE150..RHD

VSC-WITH(WITH/CUT OFF SWITCH)

 1
44610-09650

NRE150..RHD

STOP & START SYSTEM PACKAGE

 1
44610-09450

NRE150..RHD

 1
44610-09660

NRE150..RHD

STOP & START SYSTEM PACKAGE&VSC-WITH(WITH/CUT OFF SWITCH)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-09020

ZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)

 1
44730-09020

ADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA

 1
44741D - BODY, VACUUM CHECK VALVE
44741-09010

NRE150..RHD..3D

STOP & START SYSTEM PACKAGE

 1
44741-09010

NRE150..RHD..3D

STOP & START SYSTEM PACKAGE&VSC-WITH(WITH/CUT OFF SWITCH)

 1
44741-09010

NRE150..RHD

STOP & START SYSTEM PACKAGE

 1
44741-09010

NRE150..RHD

STOP & START SYSTEM PACKAGE&VSC-WITH(W/CUT OFF SWITCH)

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12700

NRE150..RHD..3D

 1
44772-12700

NRE150..RHD

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NRE150..RHD..3D

 1
90467-16014

NRE150..RHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
96133-41500

NRE150..RHD..3D

 1
96133-41500

NRE150..RHD

 1
44776 - HOSE, BRAKE BOOSTER
90999-92002

NRE150..RHD

STOP & START SYSTEM PACKAGE,L=70

 1
90999-92002

NRE150..RHD

STOP & START SYSTEM PACKAGE&VSC-WITH(WITH/CUT OFF SWITCH),L=70

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

ZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)

 1
Common parts
90179-08038
90179-08179
Linked diagrams
1701
4702
8401
