NRE150R-DGFDKW (2008)

Toyota Auris/Hybrid (Ukp)

Production Nov 2008 - Jan 2010
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

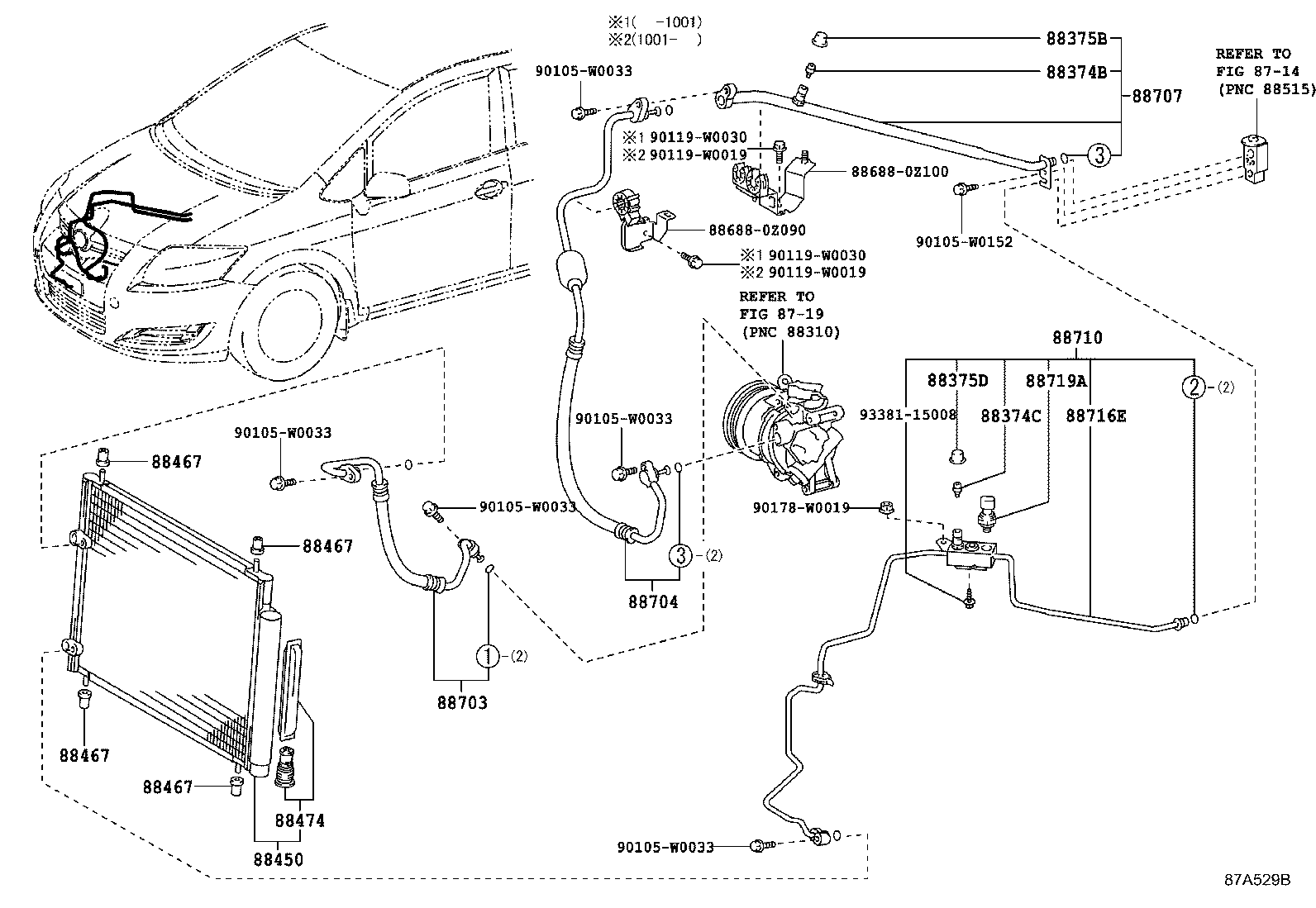

ILLUST NO. 1 OF 2(0811- )NRE150

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88467 88467 88467 88467 88474 886880Z090 886880Z100 88703 88704 88707 88710 88716E 88719A 90105W0033 90105W0033 90105W0033 90105W0033 90105W0033 90105W0152 90119W0019 90119W0019 90119W0030 90119W0030 90178W0019 9338115008
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NDE150..3D..(6F,6FS)..TERRA;NDE150,ZRE151..5D..(4FC,6FS)..TERRA..(DCR,DCRL,HTWC);ADE150,NRE150,ZRE15#..3D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)

AIR CONDITIONER-MANUAL

 1
88374-30010

ADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151,ZWE150..G,SOL

 1
88374-30010

NDE150,NRE150..6F..(E,TERRA)

AIR CONDITIONER-MANUAL

 1
88374C - VALVE, SERVICE, NO.2
88374-33070

NRE150..3D..TERRA

AIR CONDITIONER-MANUAL

 1
88374-33070

NRE150..TERRA

AIR CONDITIONER-MANUAL

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

NDE150,NRE150..6F..(E,TERRA)

AIR CONDITIONER-MANUAL

 1
88375-30290

NDE150..3D..(6F,6FS)..TERRA;NDE150,ZRE151..5D..(4FC,6FS)..TERRA..(DCR,DCRL,HTWC);ADE150,NRE150,ZRE15#..3D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)

AIR CONDITIONER-MANUAL

 1
88375-30290

ADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151,ZWE150..G,SOL

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151,ZWE150..G,SOL

 1
88375-30280

NDE150..3D..(6F,6FS)..TERRA;NDE150,ZRE151..5D..(4FC,6FS)..TERRA..(DCR,DCRL,HTWC);ADE150,NRE150,ZRE15#..3D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)

AIR CONDITIONER-MANUAL

 1
88375-30280

NDE150,NRE150..6F..(E,TERRA)

AIR CONDITIONER-MANUAL

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02280

NDE150,NRE150,ZRE15#..(4FC,6F,6FS)..(E,TERRA)

AIR CONDITIONER-MANUAL

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NDE150..(6F,6FS)..(E,TERRA);ADE150,NRE150,ZRE15#..(4FC,6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)

AIR CONDITIONER-MANUAL

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NDE150..(6F,6FS)..(E,TERRA);ADE150,NRE150,ZRE15#..(4FC,6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)

AIR CONDITIONER-MANUAL

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NDE150..(6F,6FS)..(E,TERRA);ADE150,NRE150,ZRE15#..(4FC,6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)

AIR CONDITIONER-MANUAL

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NDE150..(6F,6FS)..(E,TERRA);ADE150,NRE150,ZRE15#..(4FC,6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)

AIR CONDITIONER-MANUAL

 4
88474 - DRYER, COOLER
88474-17010

NDE150..(6F,6FS)..(E,TERRA);ADE150,NRE150,ZRE15#..(4FC,6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)

AIR CONDITIONER-MANUAL

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02580

NRE150..3D..TERRA

AIR CONDITIONER-MANUAL

 1
88703-02580

NRE150..TERRA

AIR CONDITIONER-MANUAL

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-02830

NRE150..3D..TERRA

AIR CONDITIONER-MANUAL

 1
88704-02830

NRE150..TERRA

AIR CONDITIONER-MANUAL

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-02150

NRE150..3D..TERRA

AIR CONDITIONER-MANUAL

 1
88707-02150

NRE150..TERRA

AIR CONDITIONER-MANUAL

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0Z170

NRE150..3D..TERRA

AIR CONDITIONER-MANUAL

 1
88710-0Z170

NRE150..TERRA

AIR CONDITIONER-MANUAL

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-02870

NRE150..3D..TERRA

AIR CONDITIONER-MANUAL

 1
88716-02870

NRE150..TERRA

AIR CONDITIONER-MANUAL

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151,ZWE150..G,SOL

 1
88719-33020

NDE150,NRE150..6F..(E,TERRA)

AIR CONDITIONER-MANUAL

 1
88719-33020

NDE150..3D..(6F,6FS)..TERRA;NDE150,ZRE151..5D..(4FC,6FS)..TERRA..(DCR,DCRL,HTWC);ADE150,NRE150,ZRE15#..3D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)

AIR CONDITIONER-MANUAL

 1
Common parts
88688-0Z090
88688-0Z100
90105-W0033
90105-W0152
90119-W0019
90119-W0030
90178-W0019
93381-15008
