NRE150L-DHFNKW (2008)
Toyota Auris/Hybrid (Ukp)

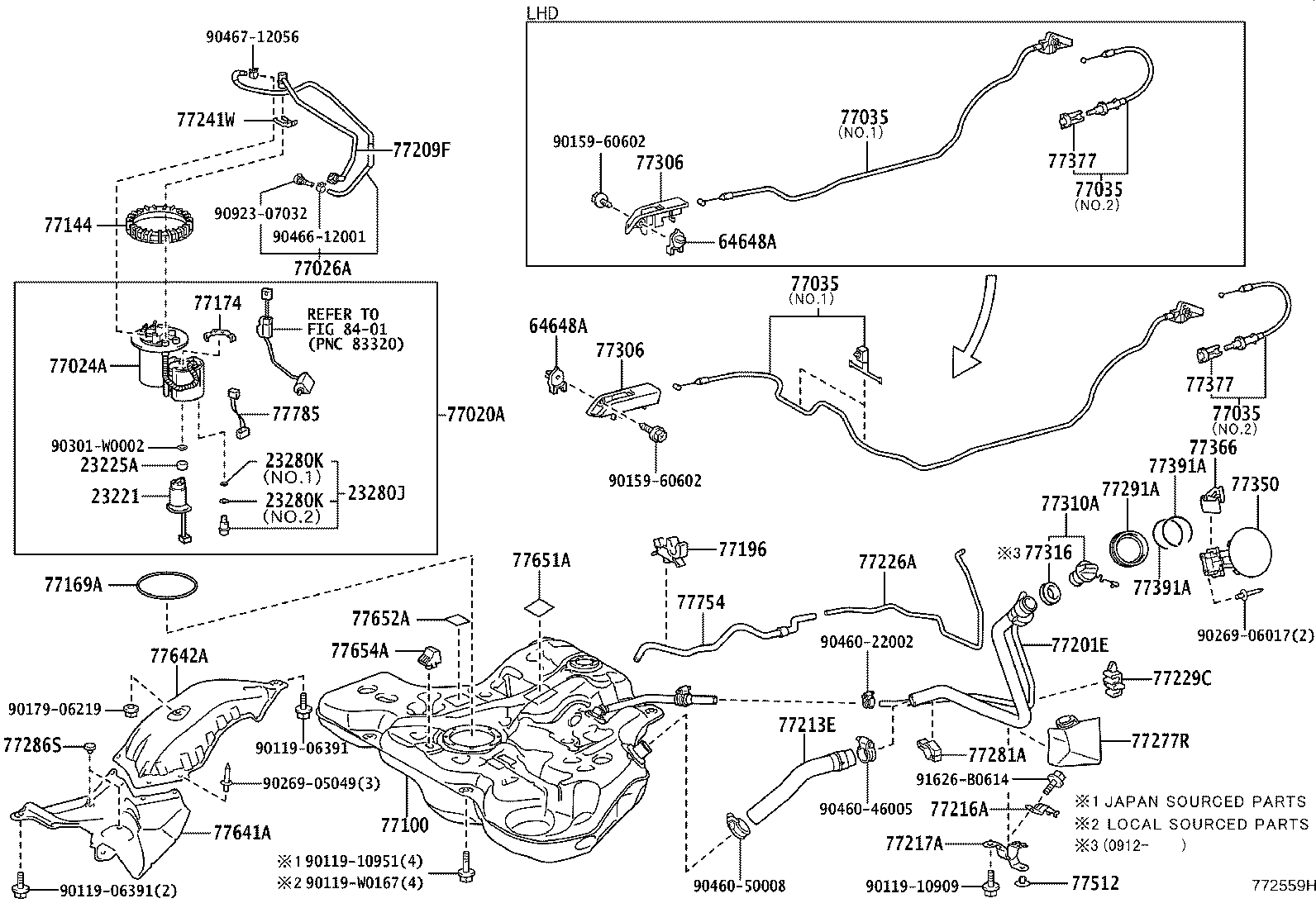

ILLUST NO. 1 OF 2(0811- )NRE150
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02420 |
NRE150..5D |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02190 |
NRE150..5D |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-02030 |
NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12440 |
NDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.1 |
1 | ||
| 77035-12490 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) NO.2 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12440 |
NDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.1 |
1 | ||
| 77035-12490 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) NO.2 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12440 |
NDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.1 |
1 | ||
| 77035-12490 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) NO.2 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12440 |
NDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.1 |
1 | ||
| 77035-12490 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) NO.2 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02250 |
NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0H010 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0D030 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-02050 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-12640 |
NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02090 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12270 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-12030 |
NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12070 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12180 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12100 |
NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NRE150,ZRE15#..5D..(6F,6FS);NDE150..5D..(6F,6FS)..(E,SOL) |
2 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02080 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-52040 |
NDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-52040 |
NDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12480 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12060 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12060 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
2 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02060 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NRE150,ZRE15#..5D..(6F,6FS);NDE150..5D..(6F,6FS)..(E,SOL) |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-02010 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77642-02011 |
ADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;NRE150,ZRE15#..5D..MTM |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-45020 |
NRE150,ZRE15#..5D..(6F,6FS) |
3 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-02020 |
NRE150,ZRE15#..5D..MTM |
1 | ||
| 77654-12090 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-02060 |
NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12020 |
NRE150,ZRE15#..5D..(6F,6FS) |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90119-10909 | ||||
| 90119-10951 | ||||
| 90119-W0167 | ||||
| 90159-60602 | ||||
| 90179-06219 | ||||
| 90269-05049 | ||||
| 90269-06017 | ||||
| 90301-W0002 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90466-12001 | ||||
| 90467-12056 | ||||
| 90923-07032 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
